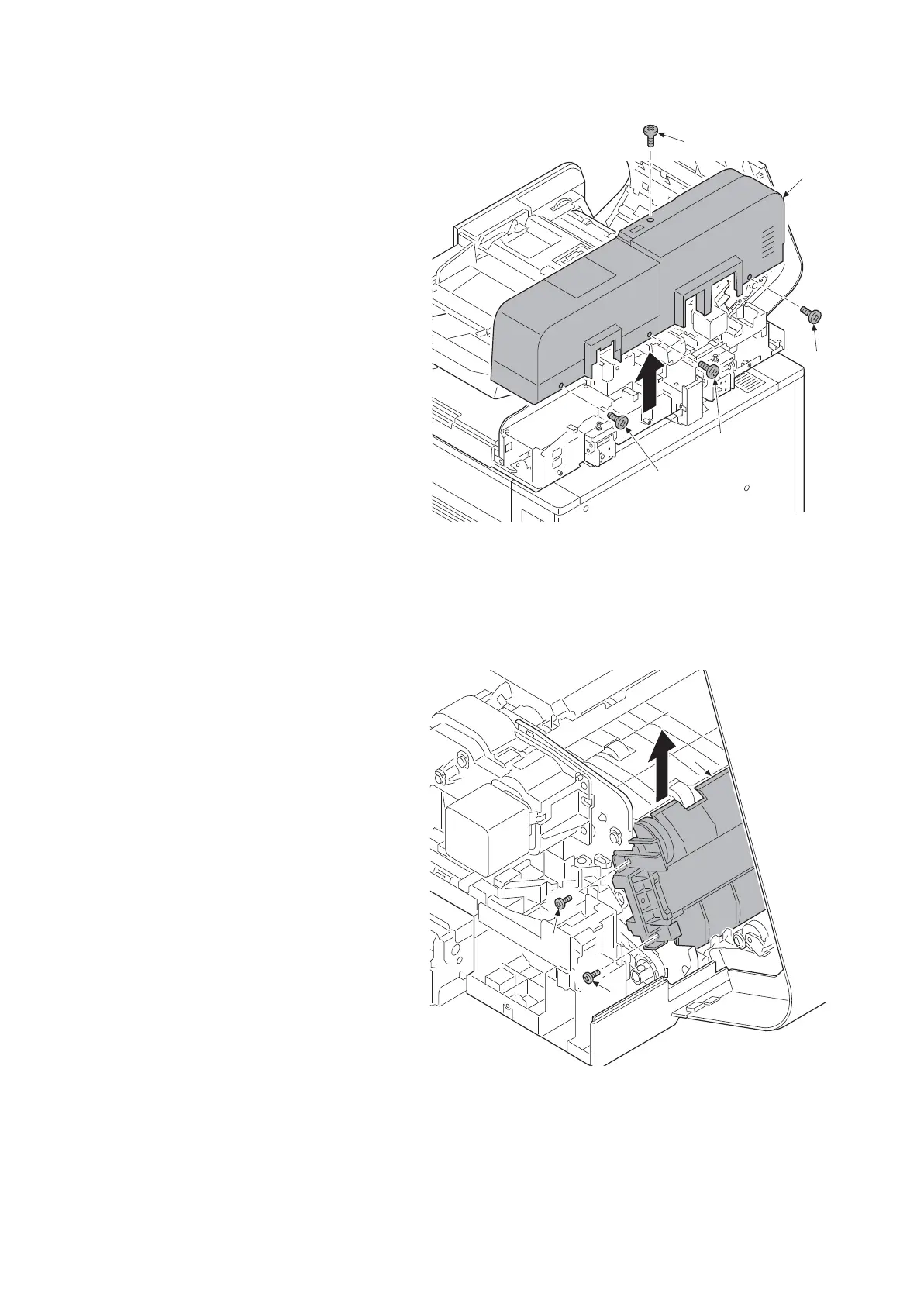

3. Remove four screws (a)(M3x8) and
detach the DP rear cover (b).
Figure 4-320
4. Remove two screws (b)(M3x8) at the
machine rear side, detach CIS unit (a)
the upward.
Figure 4-321
a
b
a
a
a
14j0505
a
b
b
14j0507
