Adjust the height of DP.
9. Loosen the nut (a).
(1)For copy example 1:
Loosen the adjusting screw (b).
(2)For copy example 2:
Tighten the adjusting screw (b).
scale (c)
Amount of change per : Approx. 0.5 mm
10. Retighten the nut (a).
11. Reattach the DP rear cove in the origi-
nal position.
12. Reattach the right hinge cover and left
hinge cover in the original position.

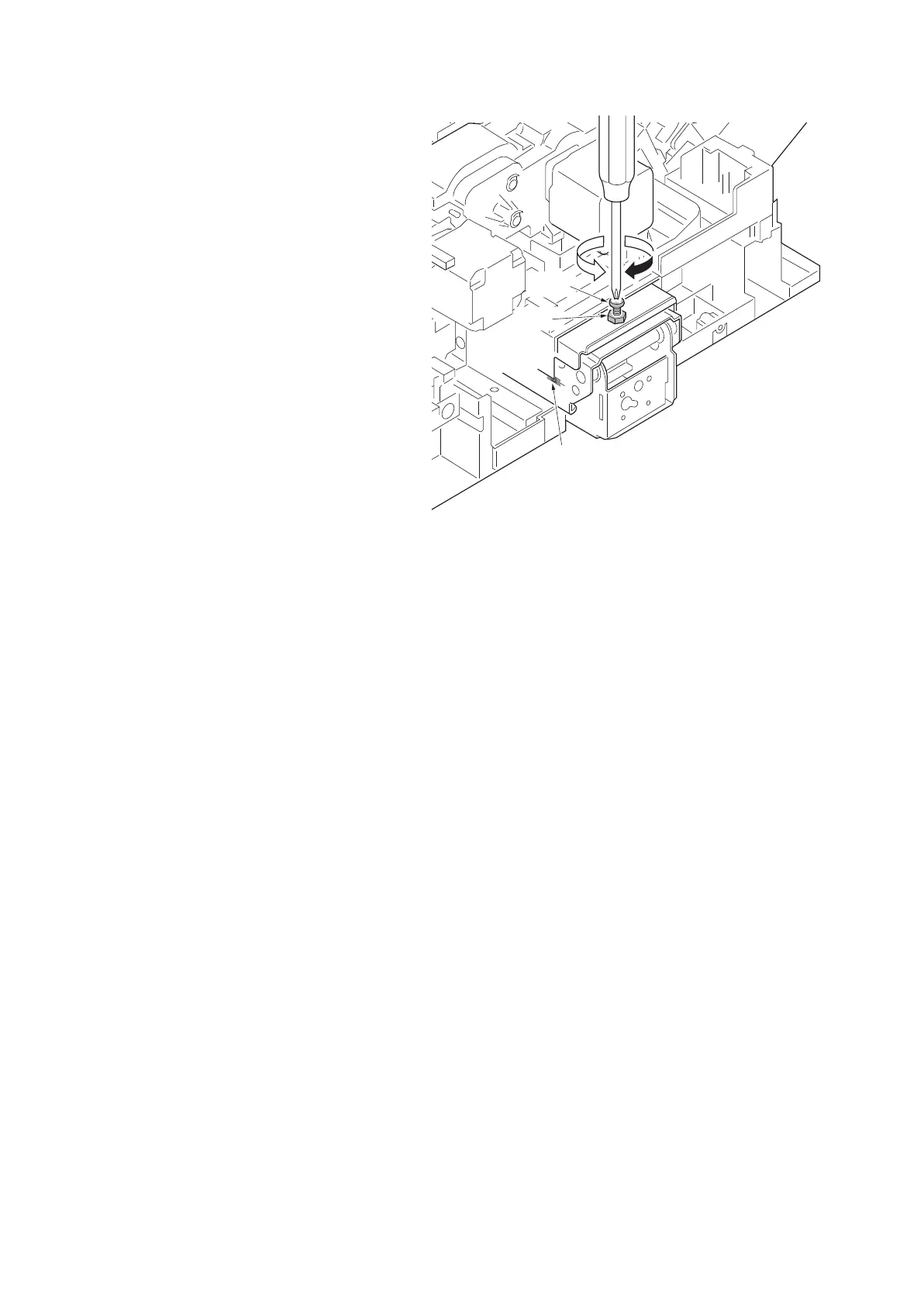

Figure 4-333
b
c
a
14j0517
