Kyocera TASKalfa 7002i - Page 64

2NJ/2RK
2-15

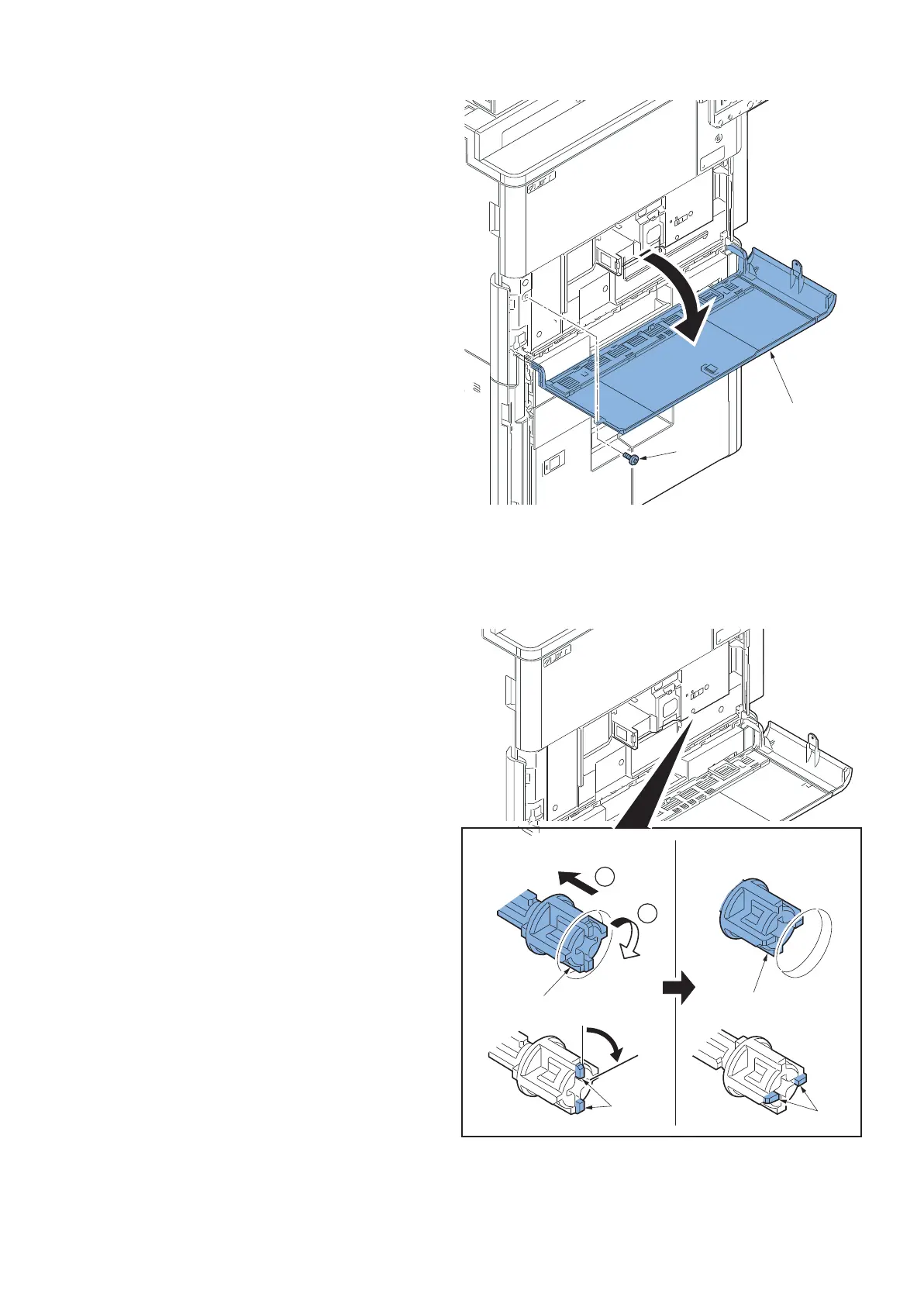

5. Remove one screw (a)(M4x8) and then open the
front middle cover(b).
Figure 2-20
6. Press the fixing pin(a) and rotate.
*: Fully insert the fixing pin(a) with keeping the protru-
sions(b) vertical and rotate it by 90 degrees clock-
wise.
Figure 2-21
b
a
1
2
90r
a
b
a
b
