L-Acoustics KARA MODULAR WST SYSTEM User Manual

KARA
KARAKARA
KARA
®
®®
®
M
MM
MO
OO
ODULAR
DULARDULAR
DULAR WST
WST WST
WST
®
®®
®
SYSTEM
SYSTEM SYSTEM
SYSTEM
rigging procedures using
rigging procedures using rigging procedures using
rigging procedures using kara
karakara
kara-
--
-minibu
minibuminibu
minibu
VERSION 1.0
KARA_SRM_EN_1-0
w w w . l - a c o u s t i c s . c o m
8
88
8
5
55
5 K
KK
KARA
ARAARA
ARA
®
®®
®
RIGGING COMPONENTS
RIGGING COMPONENTSRIGGING COMPONENTS
RIGGING COMPONENTS
5.1 KARA-MINIBU
The L-ACOUSTICS
®
KARA-MINIBU rigging structure has been designed to fly or stack the KARA
®
enclosures as a
variable-curvature, vertical line source array. KARA-MINIBU also allows KARA to be attached to an SB18 subwoofer
array.
Note: KARA-MINIBU also can fly straight vertical SB18 arrays.
The KARA-MINIBU is a rectangular frame fitted with the following elements:
• Four 5/16” R-BLP (round-shaped ball-locking pins) for KARA rigging.
• One laser support plate with four bolts for optional TEQSAS
®
LAP-TEQ laser/inclinometer device
mounting. The LAP-TEQ is part of the L-ACOUSTICS
®
TECH TOOLCASE (refer to the TECH
TOOLCASE Product spec sheet [3.4]).
• Two shackles fitted with 12 mm/0.47 inch-diameter bolts and safety pins.
• 17 shackle holes for rigging.
• 2 shackle holes for pullback configurations.
Note: Refer to [9.2.1] for distance between shackles.

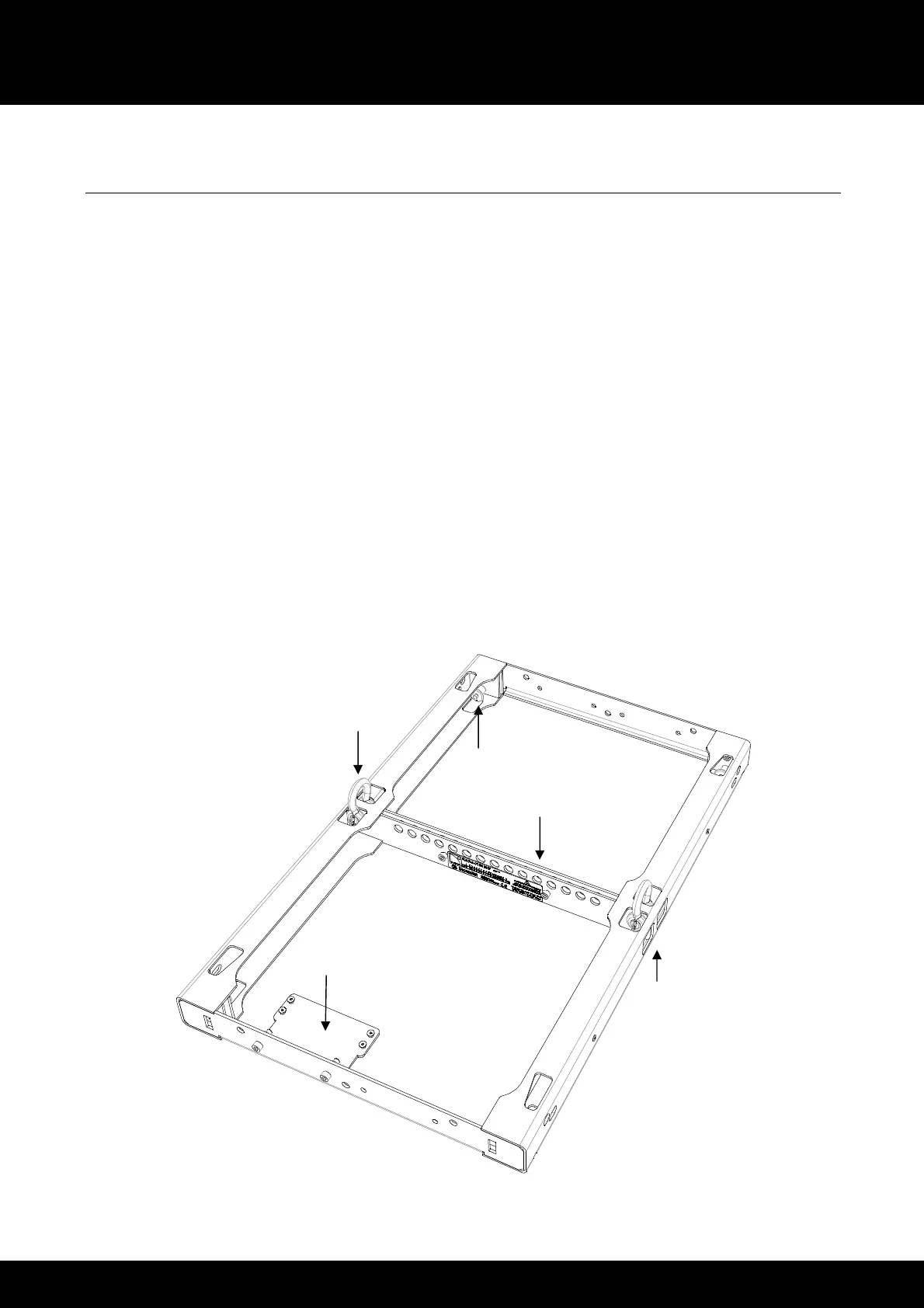

Figure 3: KARA-MINIBU rigging structure
Laser support plate
R
-
BLP (x4)
Shackle
(x2)
Rigging holes
(x17)
Pullback hole
(x2)
