6.2.3 Array disassembling procedure
All along the procedure:
STRICTLY follow the sequence of the successive steps.
SYSTEMATICALLY verify that each BLP is fully inserted.
For clarity purposes the loudspeaker cable removal procedure will not be described.
The loudspeaker cables will not be represented in the figures.
1. If the array to disassemble is a SB18 standalone array, directly go to step 8.
If the array to disassemble is a SB18/KARA mixed array, begin the procedure by applying [6.1.3, steps 1 to 12] and
then continue from step 2 below.
2. Lower ARRAY#1 into the tray. The bottom SB18 must be resting on both KARA-MINIBUEX.
3. Separate ARRAY#1 from the SB18 array as follows:
a. Remove the four T-BLP from the link holes of both KARA-MINIBUEX.
b. Raise the SB18 array until it is separated from ARRAY#1.
c. Re-insert the four T-BLP into the KARA-MINIBUEX storage holes.

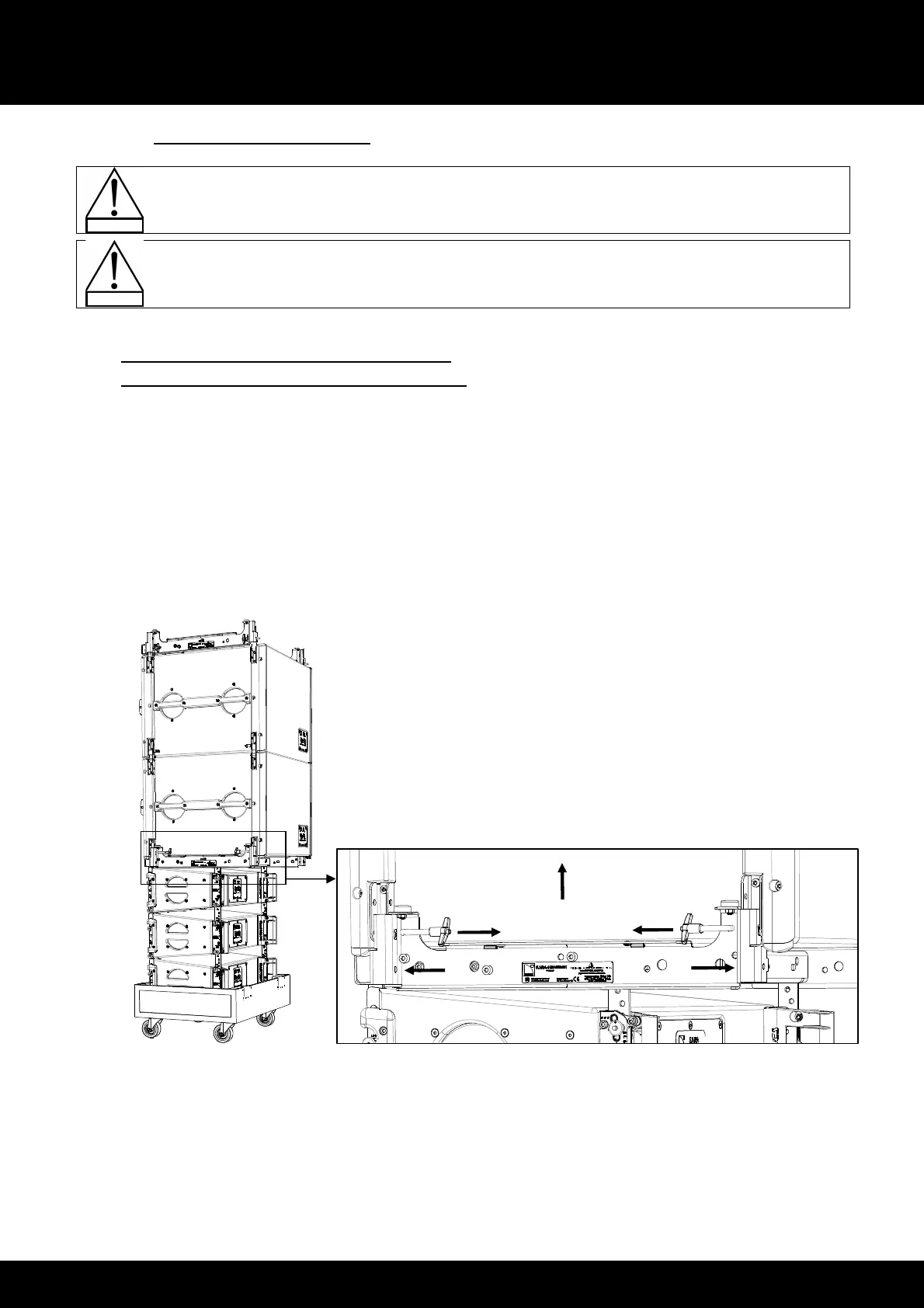

Figure 30: Separating ARRAY#1 from the SB18 array
4. Remove ARRAY#1 from under the SB18 array.
a
.
L
a
.
L
b
.
L
c
.
L
c
.
L
