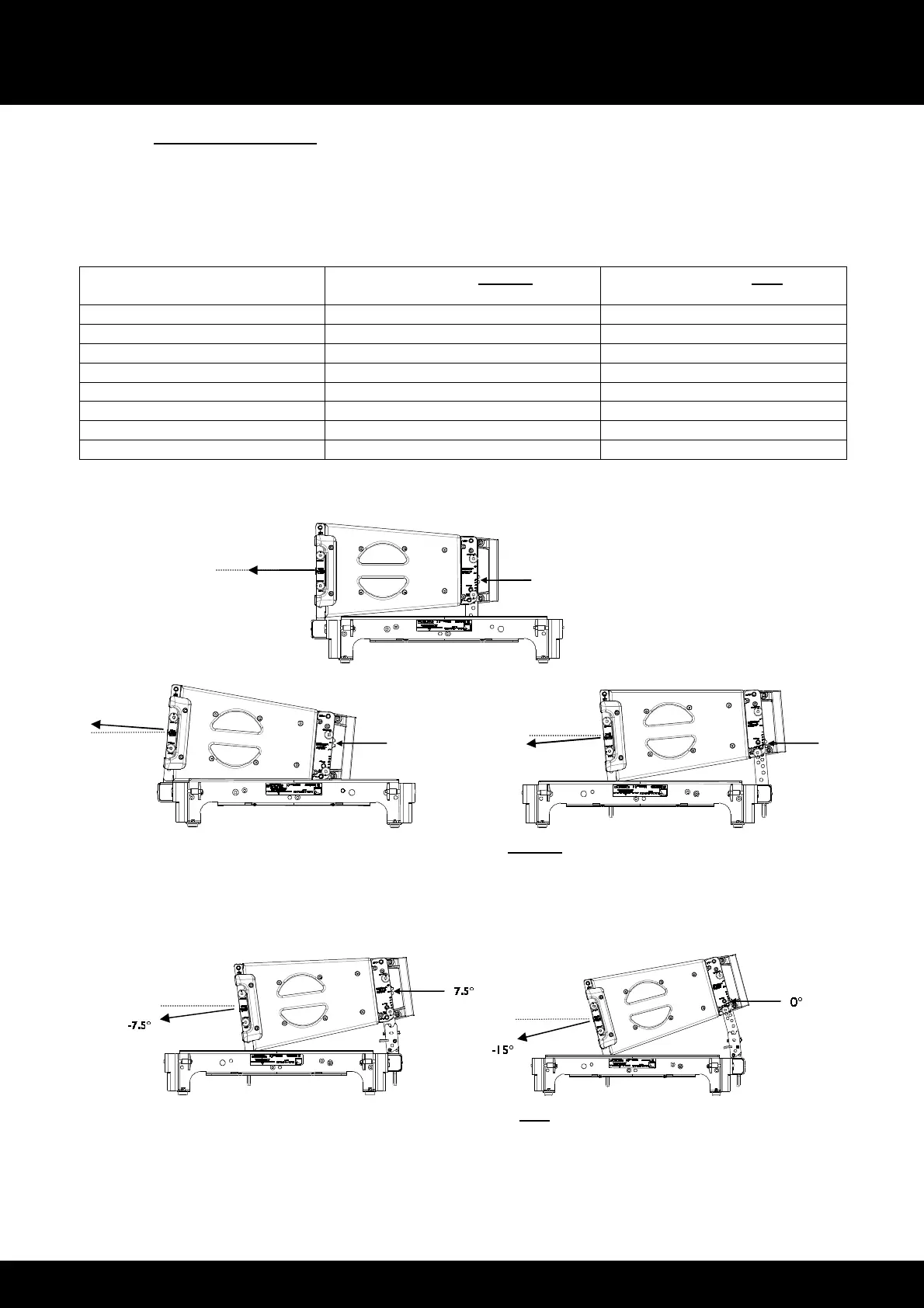

9.3.2 Array site angle setting
The site angle of the stacked KARA array will be determined by the angle of the bottom enclosure in the range from
-15° to +5°. Install both KARA-ANGARMEX angle arm extensions to obtain angles from -7.5° to -15°. Table 7 indicates
all possible site angles settings:
Table 7: Possible site angles for stacked array
Angle selection on KARA
(angle label facing the cursor)
Resulting site angle without KARA-
ANGARMEX (Figure 73)
Resulting site angle with KARA-
ANGARMEX (Figure 74)
0° -5° -15°
1° -4° -14°
2° -3° -13°
3° -2° -12°
4° -1° -11°
5° 0° -10°
7.5° +2.5° -7.5°
10° +5° —
Figure 73: Bottom KARA angle selection without KARA-ANGARMEX
Figure 74: Bottom KARA angle selection with KARA-ANGARMEX
0°
5°
10°
0°
+5°
-
5°
