L-Acoustics KARA MODULAR WST SYSTEM User Manual

KARA
KARAKARA
KARA
®
®®
®
M
MM
MO
OO
ODULAR
DULARDULAR
DULAR WST
WST WST
WST
®
®®
®
SYSTEM
SYSTEM SYSTEM
SYSTEM
rigging procedures using
rigging procedures using rigging procedures using
rigging procedures using kara
karakara
kara-
--
-minibu
minibuminibu
minibu
VERSION 1.0
KARA_SRM_EN_1-0
w w w . l - a c o u s t i c s . c o m
64
6464
64

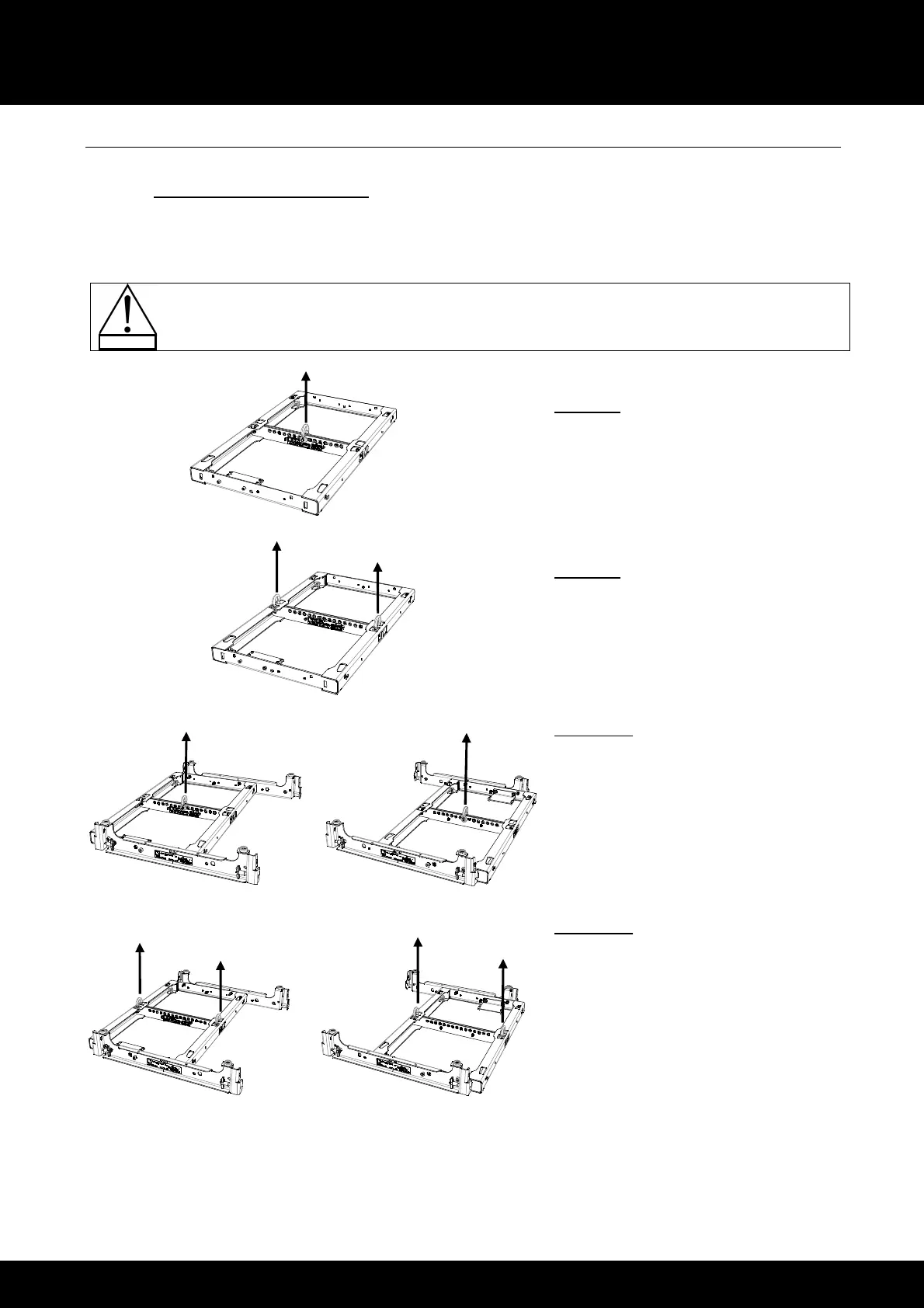

9.2 Flown array options and site angle setting
9.2.1 KARA-MINIBU rigging options
L-ACOUSTICS
®
recommends 4 different rigging options to fly the KARA-MINIBU for arrays containing KARA and/or
SB18 enclosures. It is possible to use 1 or 2 hang points and to include the KARA-MINIBUEX accessories (see Figure
66).
ALWAYS refer to the mechanical data and warning indications provided in SOUNDVISION Software
(Mechanical Data section) [3.4] to verify the mechanical conformity of the loudspeaker assembly before
installation.
Option 1: KARA-MINIBU, 1 point
• KARA standalone array
• 1 motor
• Variable position [9.2.2]
Option 2: KARA-MINIBU, 2 points
• KARA standalone array
• 2 motors
• Fixed front and rear positions [9.2.2]
(spacing = 407 mm/16 inch)
Option 3: KARA-MINIBU, KARA-
MINIBUEX, 1 point
• SB18/KARA mixed array or SB18
standalone array
• 1 motor
• Variable position [9.2.2]
• Left view = Rear extension config.
Right view = Front extension config.
Option 4: KARA-MINIBU, KARA-
MINIBUEX, 2 points
• SB18/KARA mixed array or SB18
standalone array
• 2 motors
• Fixed front and rear positions [9.2.2]
(spacing = 407 mm/16 inch)
• Left view = Rear extension config.
Right view = Front extension config.
Figure 66: KARA-MINIBU rigging options
Front
Rear
WARNING
