9.2.2 KARA-MINIBU site angle setting
The KARA-MINIBU site angle setting will be discrete or continuous depending on the chosen rigging option.
Rigging options 1 and 3 offer 17 discrete site angle values in each configuration by selecting the single shackle position
(holes 1-17). The hole numbering convention is shown in Figure 67 for KARA-MINIBU and Figure 68 for KARA-
MINIBU/KARA-MINIBUEX.
For rigging options 1 and 3 the bumper site angle will also depend on the size and shape of the array
(number of enclosures and inter-enclosure angles). Refer to SOUNDVISION Software [3.4] for site
angle calculation.
Note: Hole 15 provides 0° site angle for an SB18 standalone array.

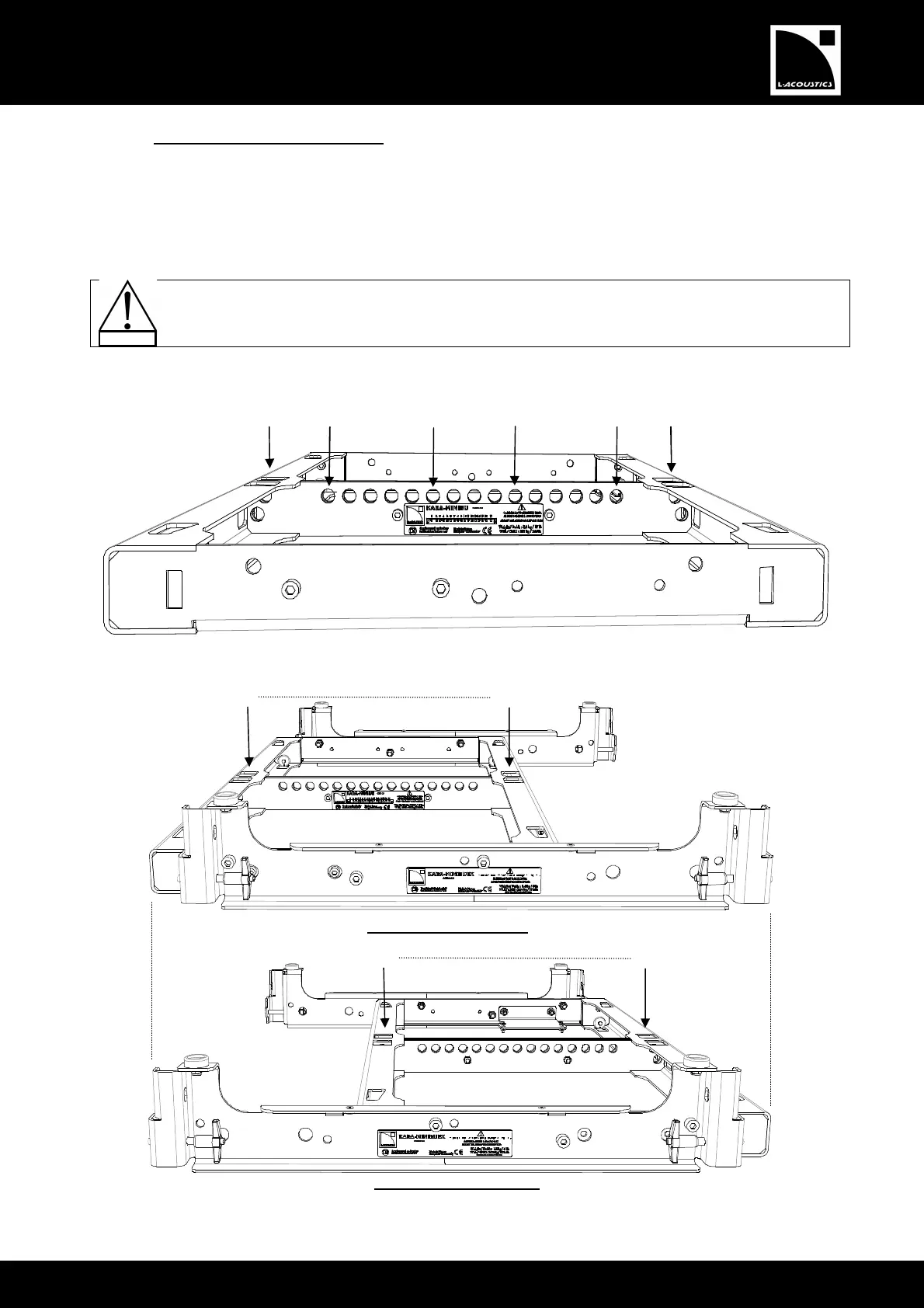

Figure 67: Rigging hole numbering convention for KARA-MINIBU
Figure 68: Rigging hole numbering convention for KARA-MINIBU/KARA-MINIBUEX
Rear
Front
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
IMPORTANT
Rear
1
17
Rear extension
configuration
Front
Front extension
configuration
1
7
1
