9 APPENDIX
APPENDIXAPPENDIX
APPENDIX
9.1 LAP-TEQ inclinometer mounting
A laser support plate has been integrated inside the KARA-MINIBU for optional TEQSAS
®
LAP-TEQ
inclinometer/laser device mounting. The LAP-TEQ is a remote control device which is part of the L-ACOUSTICS
®
TECH TOOLCASE (refer to the TECH TOOLCASE Product spec sheet [3.4]).

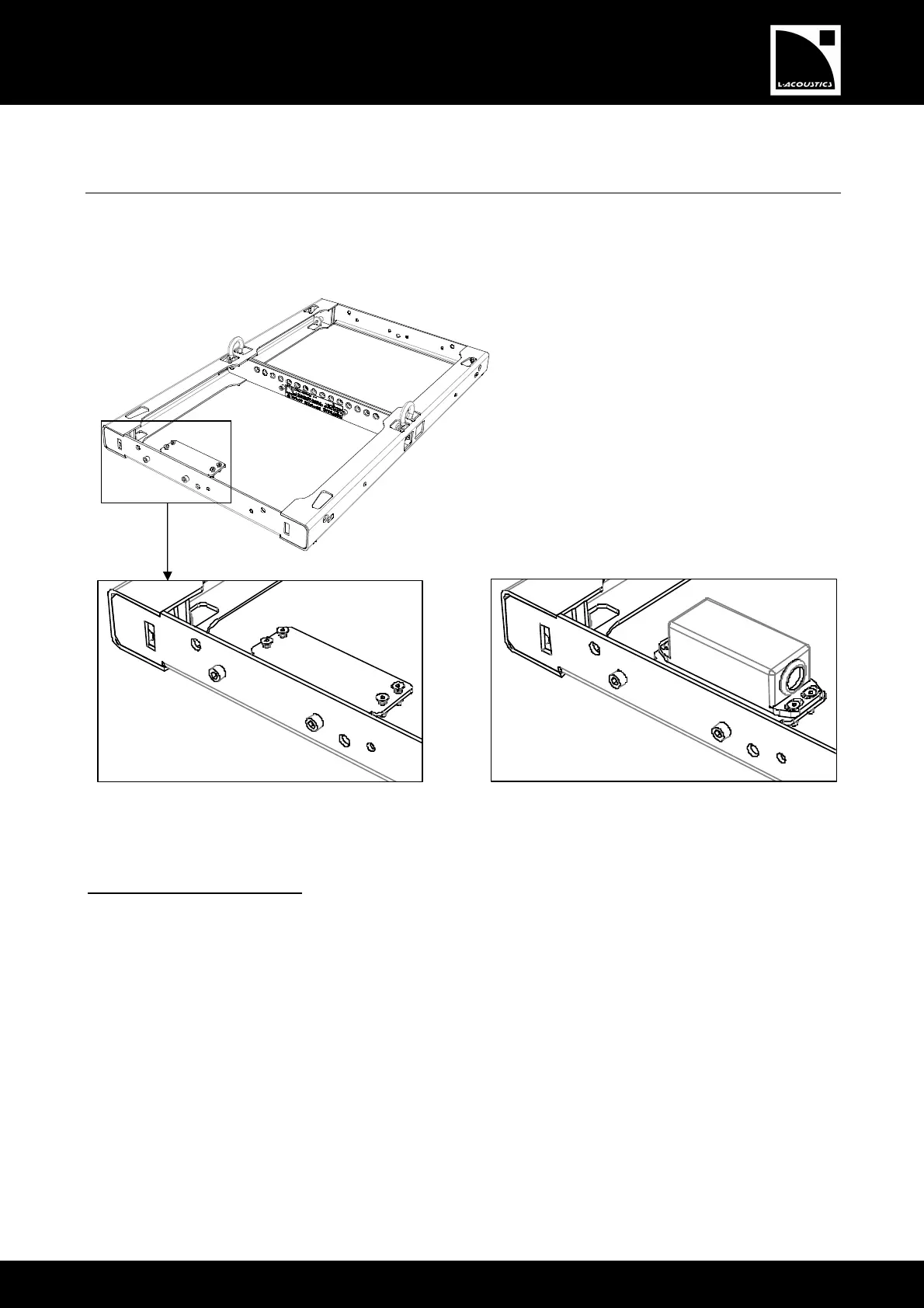

Figure 65: Laser support plate and LAP-TEQ inclinometer
LAP-TEQ mounting procedure
Required tools
Handheld inclinometer (available in the TECH TOOLCASE), electric screwdriver with torque selector (N.m or in.lb
f
),
T20 Torx
®
bit, 7 mm hex key, XLR3 cable.
Procedure
1. Put the M-BUMP on a flat horizontal surface (verify with the handheld inclinometer).
2. Undo the four Torx
®
bolts on the laser support plate (T20 bit, 7 mm hex key).
3. Position the LAP-TEQ sensor on the laser support plate with laser lens towards the KARA-MINIBU slits.
4. Drive the four Torx
®
bolts into the sensor and plate holes (T20 bit, 7 mm hex key, 3 N.m/27 in.lb
f
).
5. Connect an XLR 3 cable to the sensor.
6. Calibrate the sensor by following the manufacturer’s recommendations.
4 Torx
®
screws and nuts
the laser support plate
