6.3.3 Array disassembling procedure
All along the procedure:
STRICTLY follow the sequence of the successive steps.
SYSTEMATICALLY verify that each BLP is fully inserted.
For clarity purposes the loudspeaker cables removal procedure will not be described.
The loudspeaker cables will not be represented in the figures.
1. Detach the ratchet strap or other equivalent material from the stacked array.
2. Bring an empty KARA flight-case to the rigging location and remove the lid.
3. Separate the top KARA (KARA#3 for example) from the array by removing the four KARA#2 top
R-BLP from their link holes and re-inserting them into their storage holes.

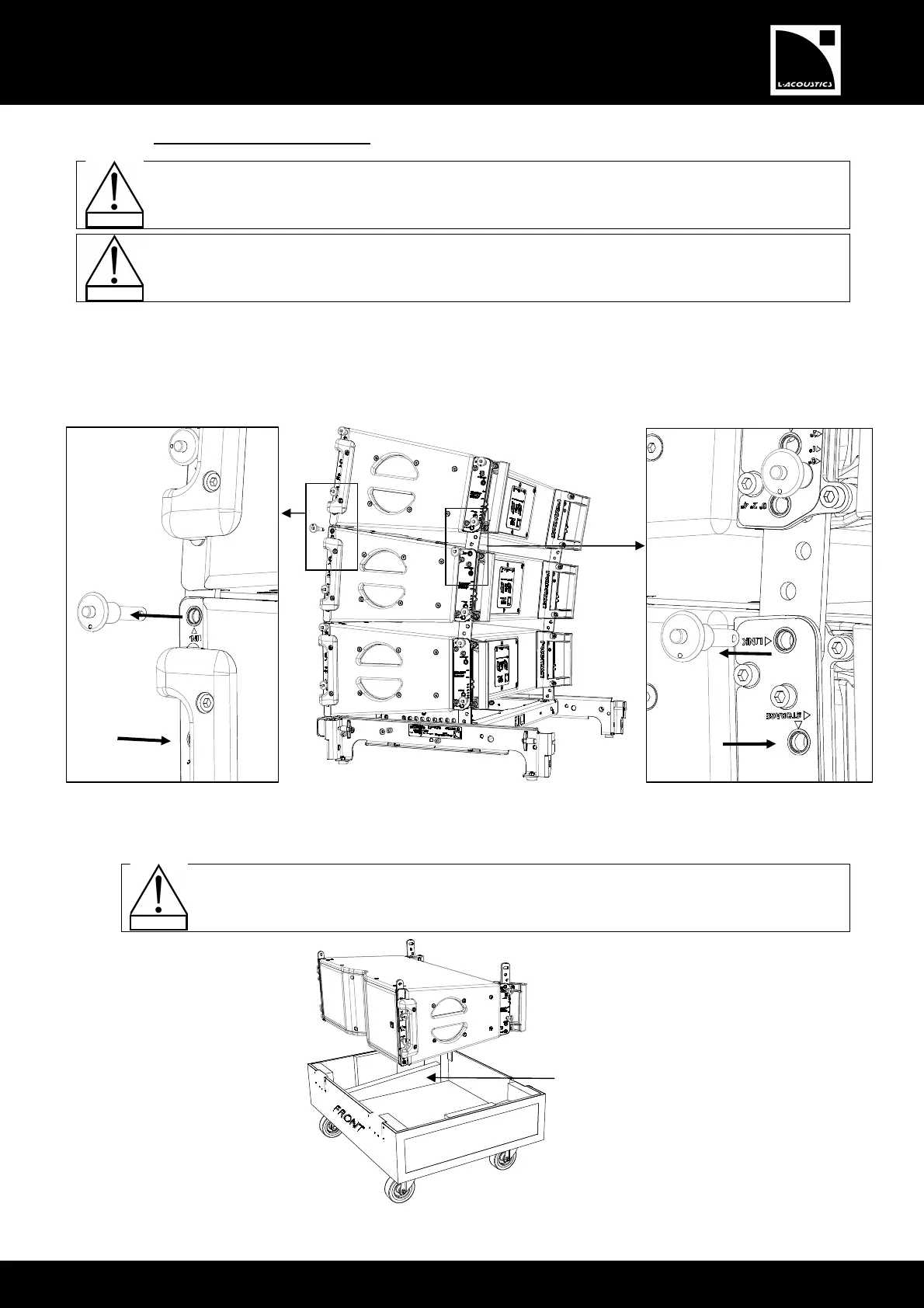

Figure 42: Separating KARA#3 from KARA#2
4. Lift up and turn KARA#3 arms pointing up. Put KARA#3 into the flight-case tray.
Pay attention to the tray position: both wedges must slope upwards from front to rear.
Figure 43: Placing KARA#3 into the flight-case tray
