5.2 KARA-MINIBUEX, KARA-ANGARMEX
The L-ACOUSTICS
®
KARA-MINIBUEX is a set of two complementary rigging plates for KARA-MINIBU to adapt to
the SB18 enclosure or to stack KARA.
The L-ACOUSTICS
®
KARA-ANGARMEX is a set of two angle arm extensions providing extra 10° downwards site
angle for the bottom KARA in stacked configurations.
The KARA-MINIBUEX package comprises the following elements:
• Two rigging plates featuring two rubber feet each.
• Six bolts to assemble the KARA-MINIBU frame and two KARA-MINIBUEX plates.
• Four 5/16” T-BLP (T-shaped ball-locking pins) to attach an SB18 enclosure to the KARA-MINIBU/KARA-
MINIBUEX structure.
The KARA-ANGARMEX package comprises two angle arm extensions with 5/16” T-BLP.

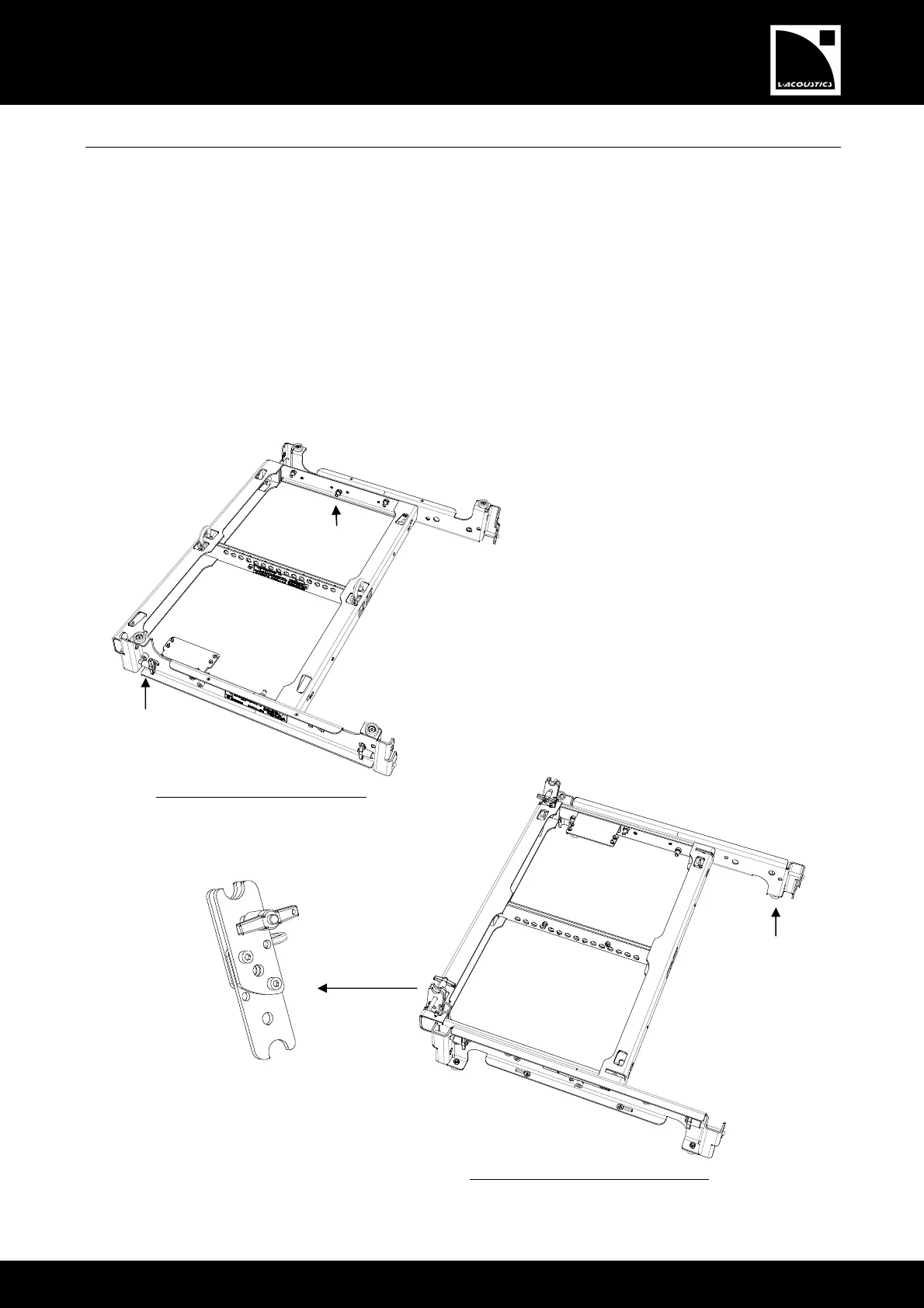

Figure 4: KARA-MINIBU/KARA-MINIBUEX rigging structure
T
-
BLP (x4)
Rubber foot (x4)
Flown configuration (
feet pointing up
)
Stacked configuration (
feet pointing down
)
Optional KARA
-
ANGARMEX (x2)
KARA
-
MINIBU
T
-
BLP
KARA
-
MINIBUEX
KARA
-
MINIBUEX
Bolt (x6)
