6.1.3 Array disassembling procedure
All along the procedure:
STRICTLY follow the sequence of the successive steps.
SYSTEMATICALLY verify that each BLP is fully inserted.
For clarity purposes the loudspeaker cable removal procedure will not be described.
The loudspeaker cables will not be represented in the figures.
1. Detach both safety slings from the KARA-MINIBU.
2. Lower the array to a height for which the angle arms of ARRAY#2 are within comfortable reach.
3. If the array to disassemble has been flown in pullback configuration, separate the KARA-PULLBACK from the
bottom KARA as follows:
a. Lower the pullback chain so as to release tension and detach the motor hook or stinger from the shackle.
b. While holding the KARA-PULLBACK, remove the four KARA bottom R-BLP from their link holes and re-insert
them into their storage holes.
c. Remove the KARA-PULLBACK.
4. With 2 people working simultaneously on each side of ARRAY#2, set the inter-enclosure angles to 0° as follows:
a. While grabbing the back handle of KARA#6, remove the KARA#5 rear top R-BLP from its angle hole.
b. Rotate KARA#5 so as to align the cursor of the angle arm with angle label 0°.
c. Lock KARA#5 in place by re-inserting the R-BLP into angle hole 0°/2°/4°.
d. Repeat the procedure for KARA#6.

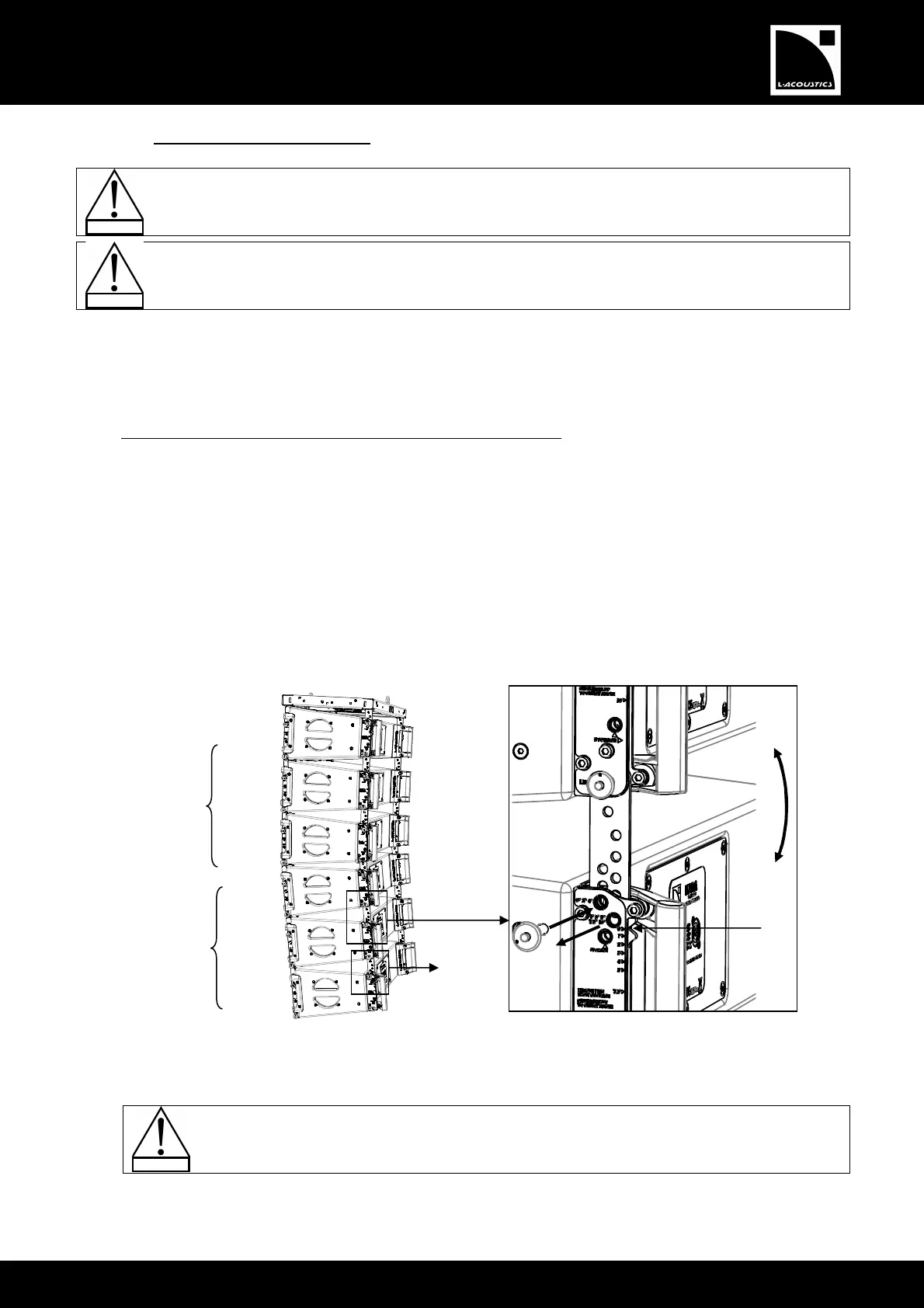

Figure 16: Setting the ARRAY#2 inter-enclosure angles
5. Bring an empty KARA flight-case to the rigging location, remove the lid, and place the tray beneath ARRAY#2.
Pay attention to the tray position: both wedges must slope upwards from front to rear [5.4].
6. Lower the array slightly higher than the tray.
