16
1616
16
16. Set the inter-enclosure angles in ARRAY#2 by applying step 8.

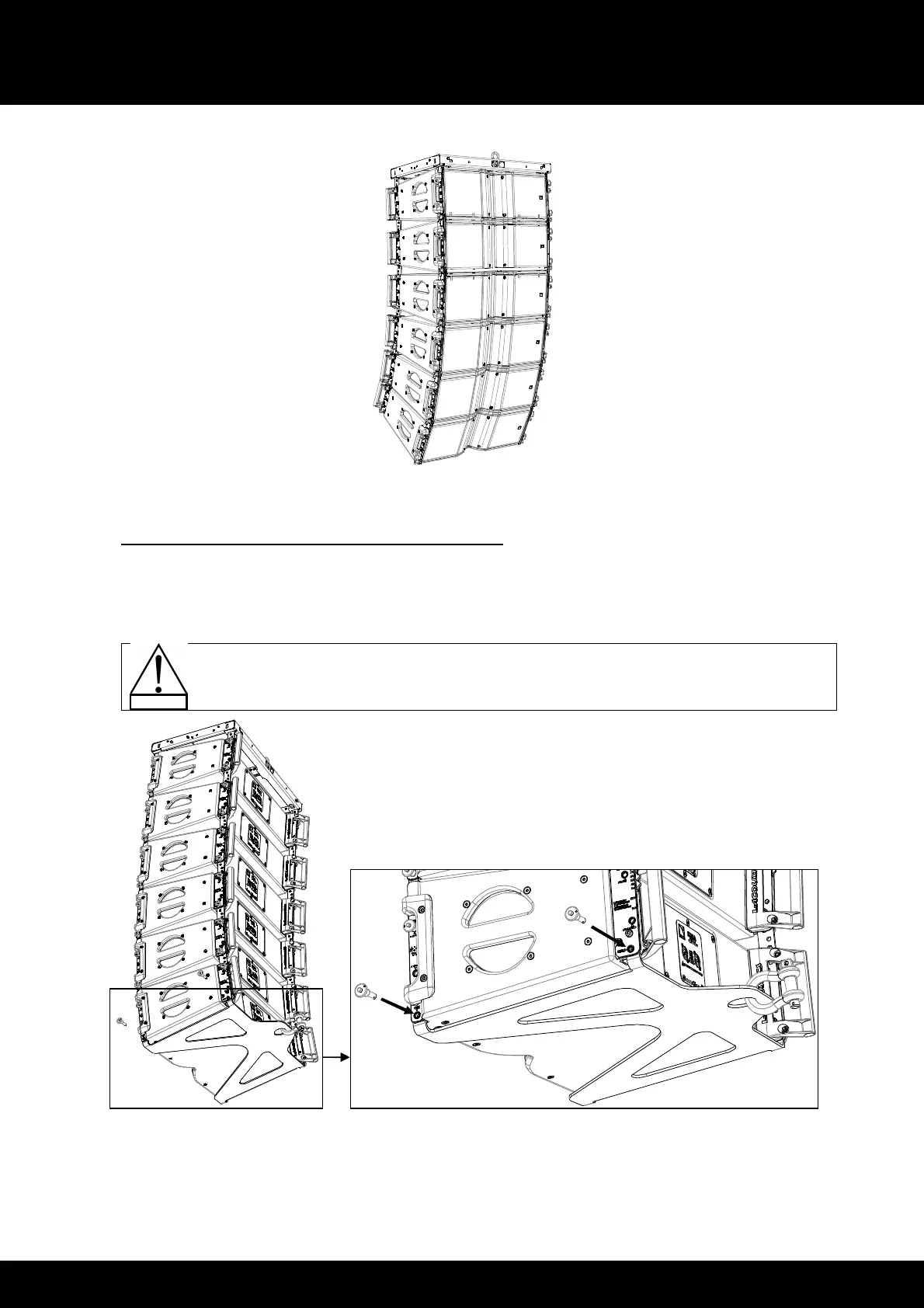

Figure 14: Example of flown KARA homogeneous array
17. If the array is intended to be flown in pullback configuration, attach a KARA-PULLBACK to the bottom KARA as
follows:
a. Align the KARA-PULLBACK studs with the KARA link points (long studs at the back).
b. Remove the four KARA bottom R-BLP from their storage holes and re-insert them into their link holes.
c. Attach the hook or stinger of an additional motor to the KARA-PULLBACK shackle.
Refer to [9.2.3] for KARA-PULLBACK setup safety limits.
Figure 15: Attaching KARA-PULLBACK to KARA
18. Raise the array to the chosen height and adjust the site angle [9.2.2].
19. Secure the KARA-MINIBU to the main rigging structure by using two safety slings (not included).
