9.3 Stacked array options and site angle setting
9.3.1 Stacking platform configuration
The KARA-MINIBU can be used as a horizontal stacking platform along with both KARA-MINIBUEX extension bars.
The platform can be set in front or rear extension configuration as show in Figure 71 and Figure 72 (refer to [9.3.2]
for bottom KARA angle settings).
The configurations shown in Figure 71 and Figure 72 are purely indicative.
Refer to [6.3.1] for setup safety limits.

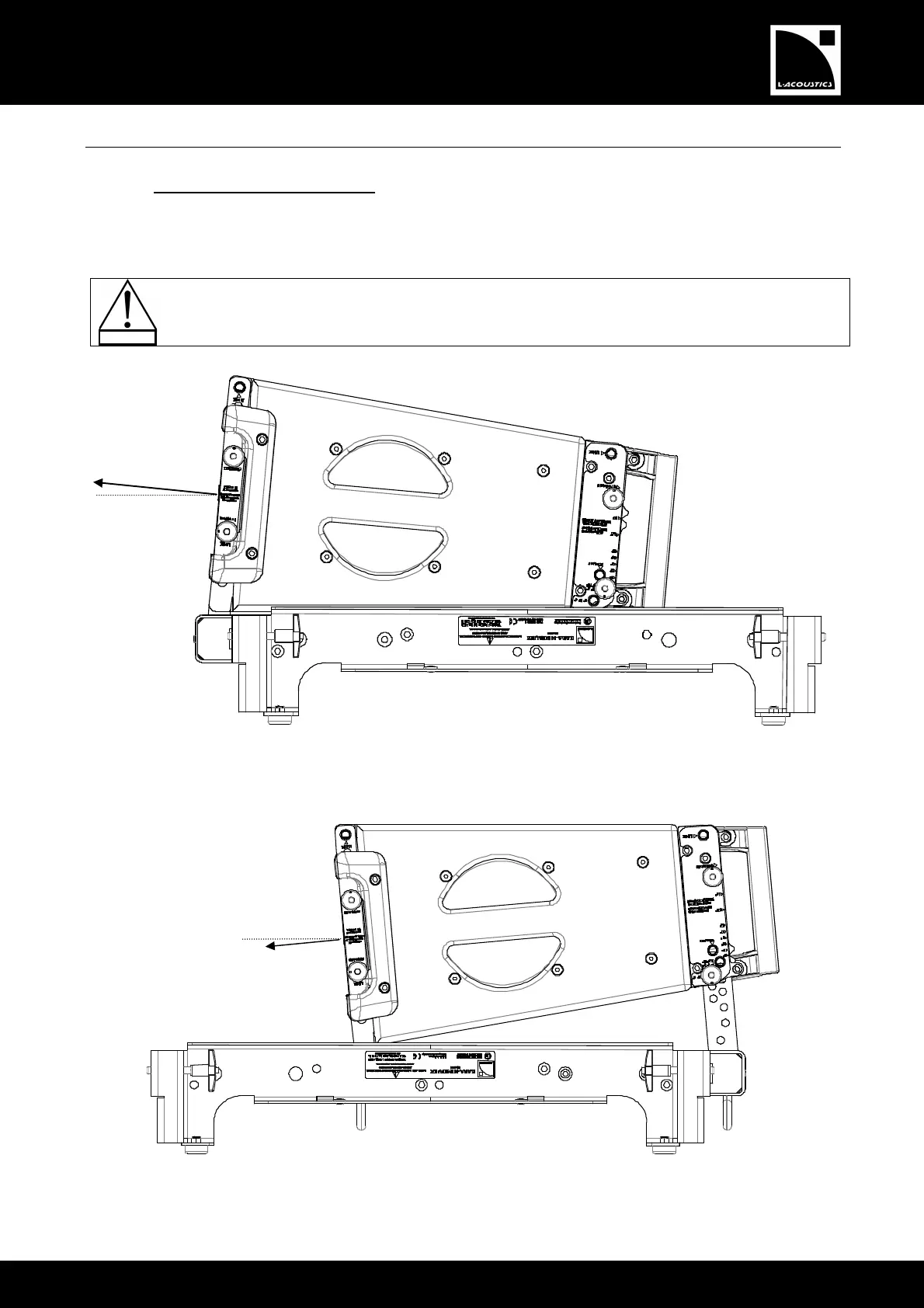

Figure 71: Rear extension configuration
Figure 72: Front extension configuration
