L-Acoustics KARA MODULAR WST SYSTEM User Manual

KARA_SRM_EN_1-0
w w w . l - a c o u s t i c s . c o m
29
2929
29
5. Separate the KARA-MINIBU/KARA-MINIBUEX rigging structure from KARA#1 as follows:
a. Remove the four R-BLP from the KARA-MINIBU.
b. Separate the rigging structure from ARRAY#1.
c. Re-insert the four R-BLP into the same KARA-MINIBU holes.

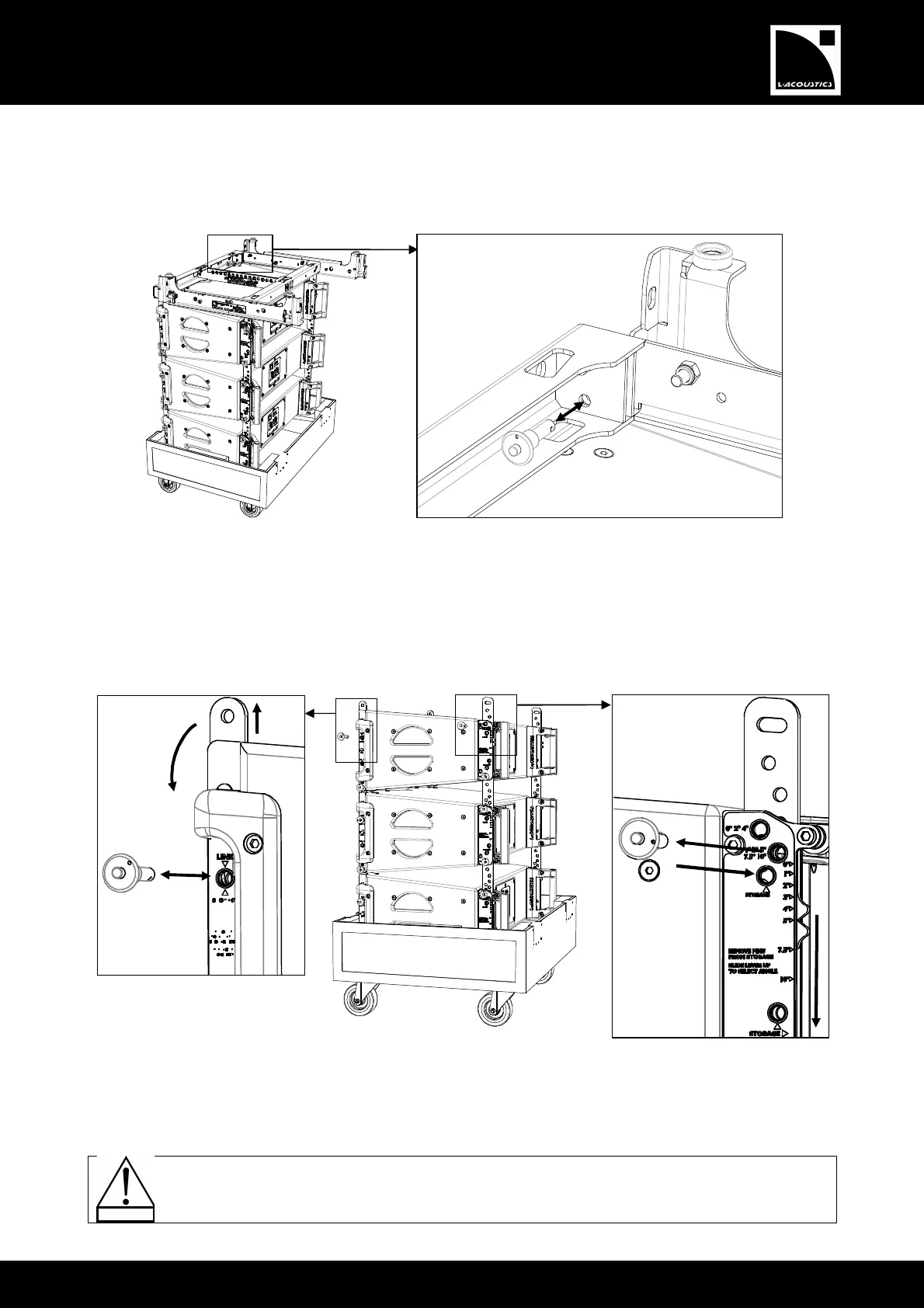

Figure 31: Separating the rigging structure from KARA#1
6. Close the four KARA#1 arms as follows (repeat on both sides of the enclosure):
a. Remove the front top R-BLP from its link hole, slide the front arm up, rotate it down, and lock it in place by
re-inserting the R-BLP into its storage hole.
b. Remove the rear top R-BLP from its angle hole, slide the angle arm so as to align the cursor with the storage
label, and lock it in place by re-inserting the R-BLP into its storage hole.
Figure 32: Closing the KARA#1 arms
7. Put the flight-case lid on.
The procedure is continued with an array composed of four SB18 enclosures to cover all possible cases.
a.
L
b.
L
(X4)
a.
L
c
.
L
IMPORTANT
