L-Acoustics KARA MODULAR WST SYSTEM User Manual

KARA_SRM_EN_1-0
w w w . l - a c o u s t i c s . c o m
27
2727
27
15. Attach ARRAY#1 to the SB18 array as follows:
a. Remove the four T-BLP from the storage holes of both KARA-
MINIBUEX.
b. Lower the SB18 array so as to align its four bottom link points with those
of both KARA-MINIBUEX. Note: Do NOT stack the SB18 array onto the
KARA array.
c. Secure the link points together by re-inserting the four T-BLP into the
KARA-MINIBUEX and bottom SB18 link holes.

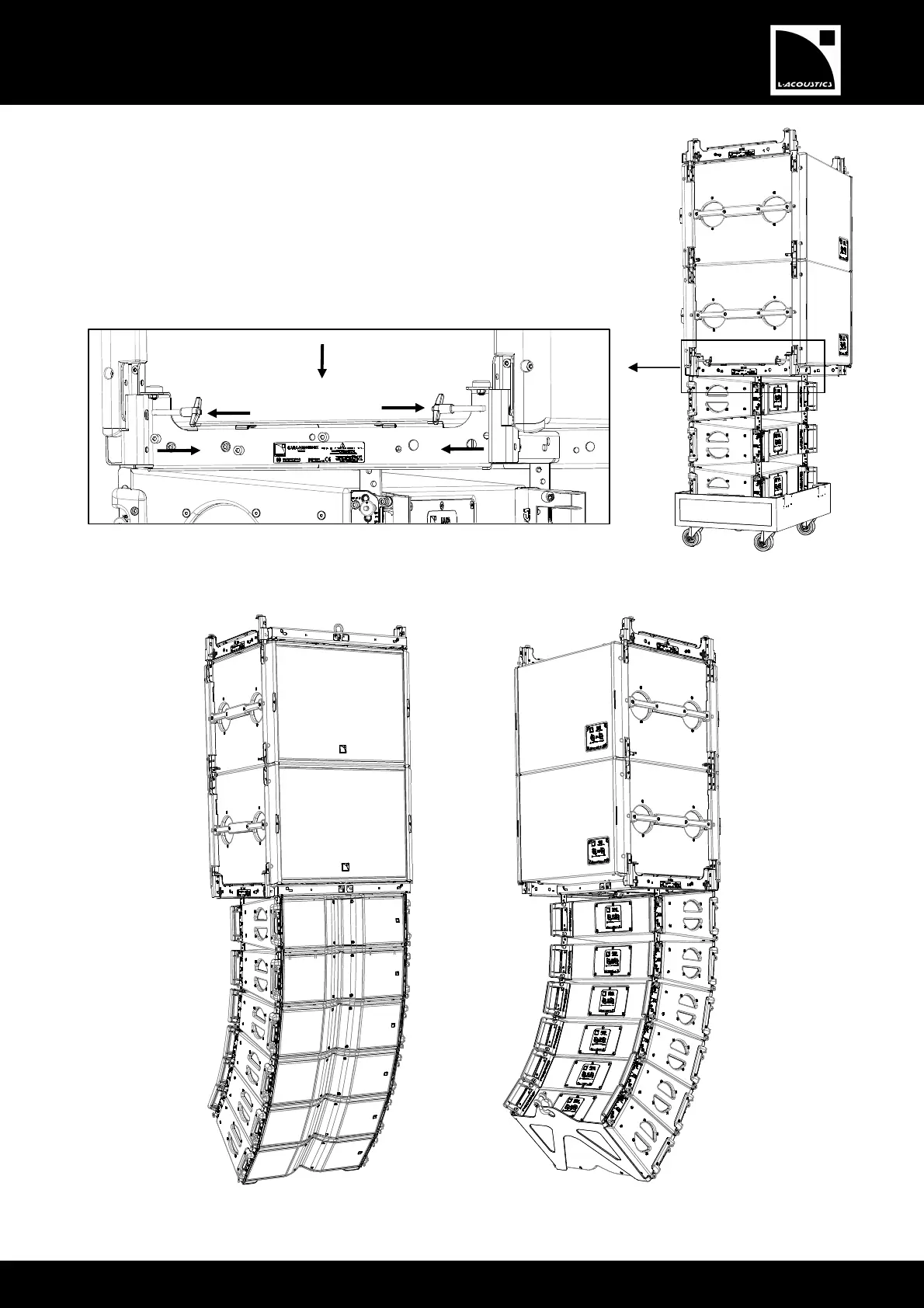

Figure 28: Attaching ARRAY#1 to the SB18 array
16. Continue the procedure by applying [6.1.2, steps 7 to 19].
Figure 29: Examples of flown SB18/KARA mixed arrays
a
.
L
c
.
L
c
.
L
a
.
L
b
.
L
