12. Assemble another KARA-MINIBU/KARA-MINIBUEX rigging structure by applying step 1 WITHOUT attaching
shackles.
13. Attach the rigging structure to KARA#1 as follows:
a. Remove the four R-BLP from the KARA-MINIBU.
b. Turn the KARA-MINIBU so that the text of the identification plate is readable and the laser plate is placed at
the front (towards the audience).
c. While keeping this orientation, align the four link points of KARA-MINIBU with the four arms of KARA#1 and
secure each pair together by re-inserting the four R-BLP into the same holes (insert both rear R-BLP first).
Note: The KARA-MINIBUEX elements must extend beyond the rear of the array.

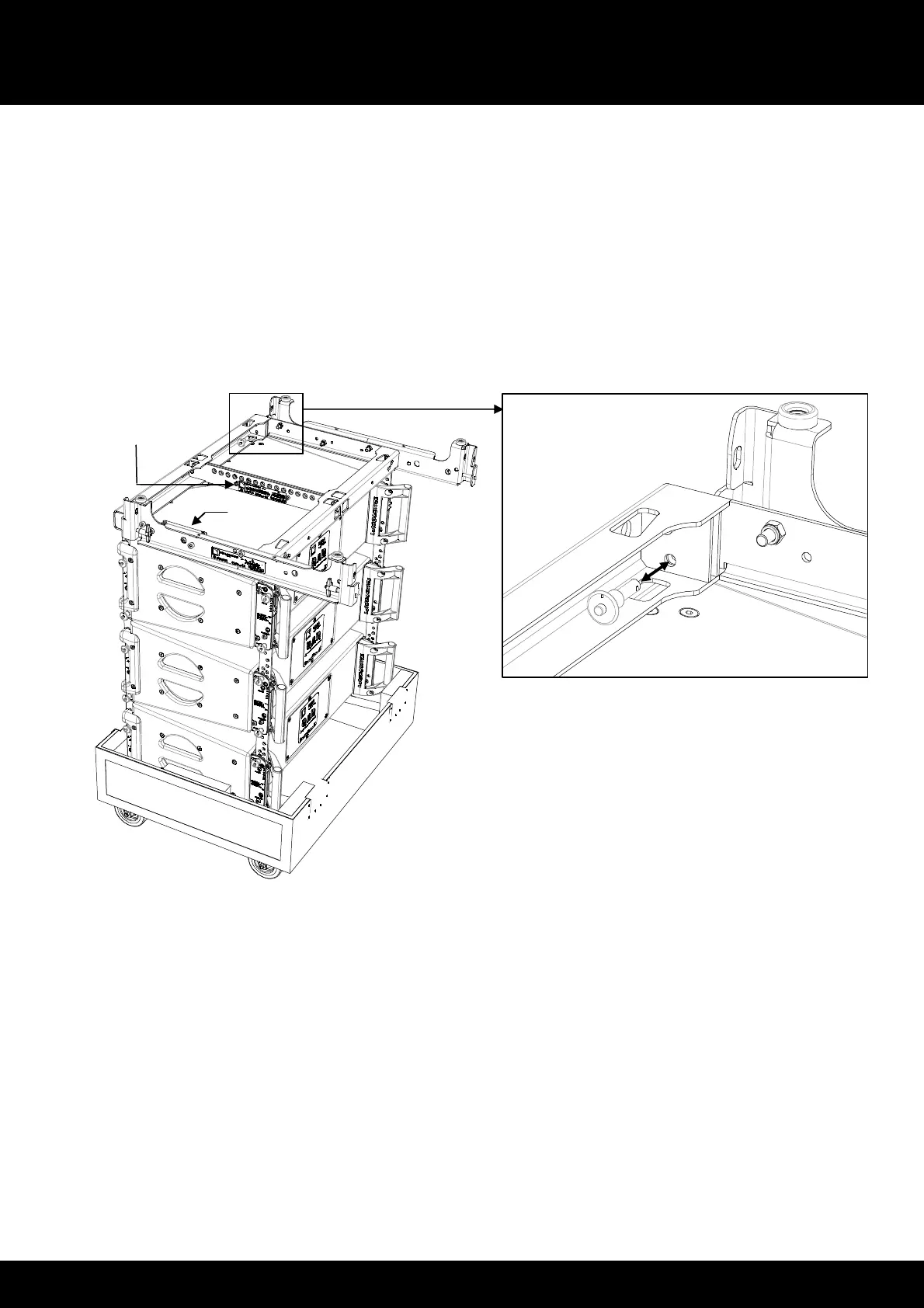

Figure 27: Attaching the rigging structure to ARRAY#1
14. Place ARRAY#1 beneath the SB18 array.
Laser plate
(X4)
I
dentification plate
