12. Attach KARA#2 to KARA#1 as follows:
a. Turn KARA#2 arms pointing down and front face towards the audience.
b. Align the four arms with the KARA#1 link points.
c. Secure the link points together by removing the four KARA#1 top R-BLP from their storage holes and re-
inserting them into their link holes.

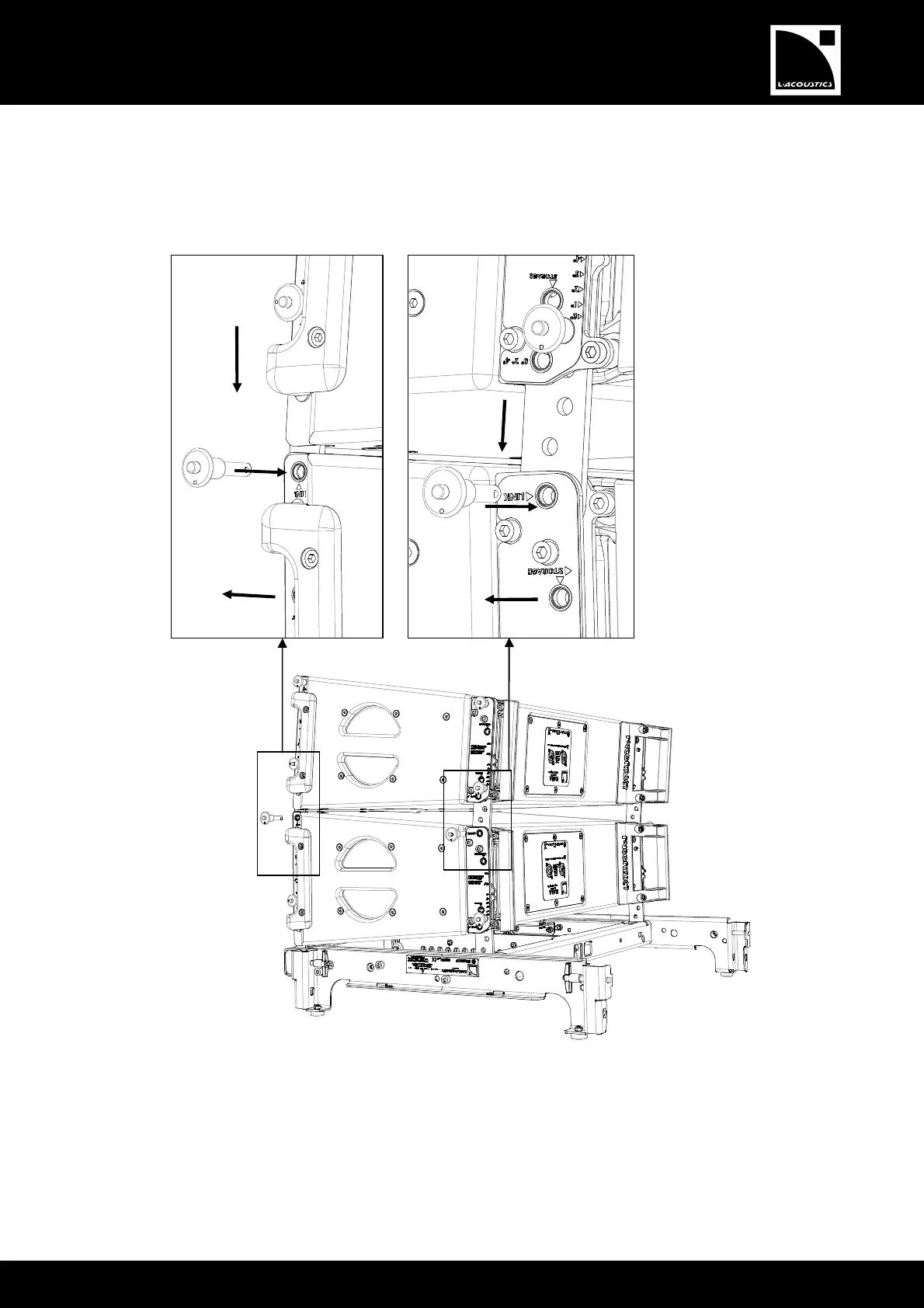

Figure 40: Attaching KARA#2 to KARA#1
13. Attach KARA#3 to KARA#2 by applying steps 10 to 12.
b.
L
c.
KARA#1
KARA#2
b.
L
c.
