11. Attach the platform to KARA#1 as follows:
a. Turn the platform feet pointing up and position it above KARA#1 in rear extension configuration [9.3.1].
b. Lower the platform to slide the four KARA-MINIBU slits along the KARA#1 arms. Note: If KARA-
ANGARMEX are attached to the KARA-MINIBU, the rear slits are located on both KARA-ANGARMEX.
c. Secure the front link points together by inserting both R-BLP into the KARA-MINIBU. Depending on the
configuration, secure the rear link points together by inserting both R-BLP into the KARA-MINIBU or both T-
BLP into both KARA-ANGARMEX.

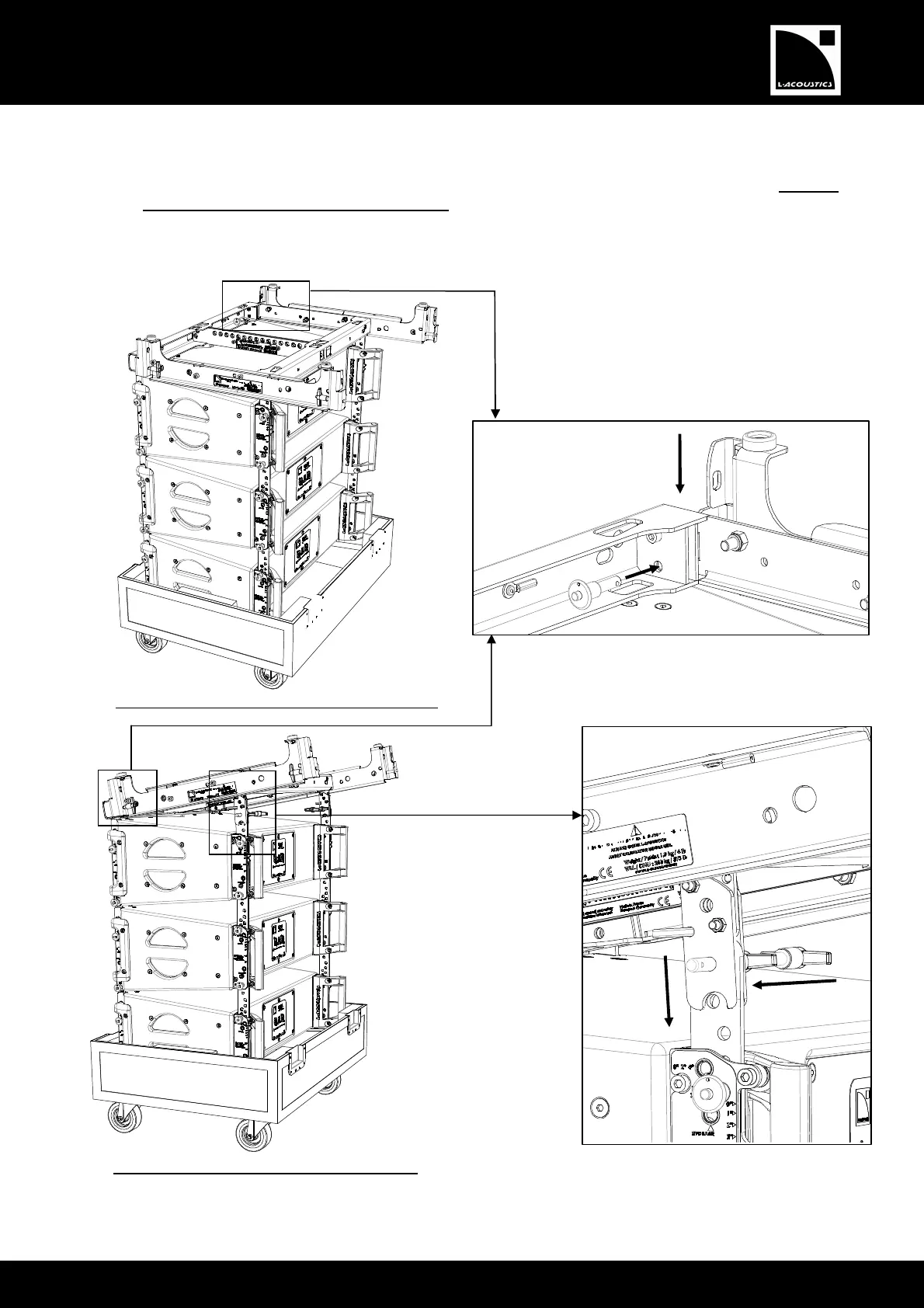

Figure 52: Attaching the platform to KARA#1
Rear
extension
configuration without
KARA
-
ANGARMEX
Rear
extension
configuration with
KARA
-
ANGARMEX
b.
c.
(x4)
(x2)
b.
c.
(x2)
KARA#1
