13. Attach the KARA#1/platform assembly to the top SB18 (SB18#2 for example) as follows:
a. Turn the assembly feet pointing down and KARA#1 front face towards audience.
b. Position the assembly onto SB18#2 by sliding it downwards into the link arms.
c. Secure the assembly and SB18#2 link points together by removing the four KARA-MINIBUEX T-BLP from
their storage holes and re-inserting them into their link holes.

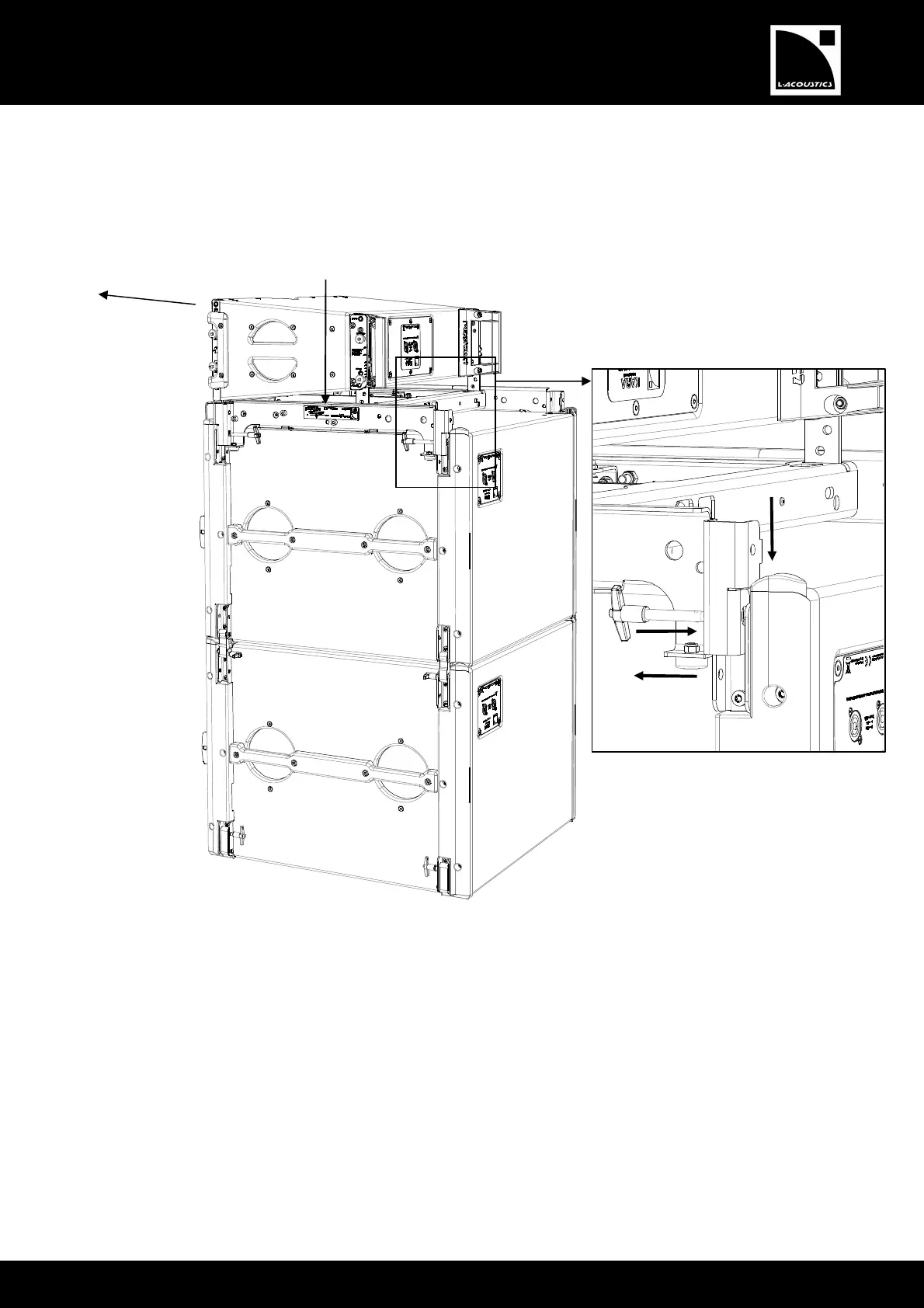

Figure 54: Attaching the KARA#1/platform assembly to SB18#2
14. Open the four KARA#2 arms by applying step 10.
15. Remove the four KARA#2 bottom R-BLP from their link holes and re-insert them into their storage holes (see
step 12).
To
wards audience
(x4)
SB18#2
SB18#1
b.
c.
KARA#1
Identification plate
