L-Acoustics L2 - Page 103

Rigging procedures

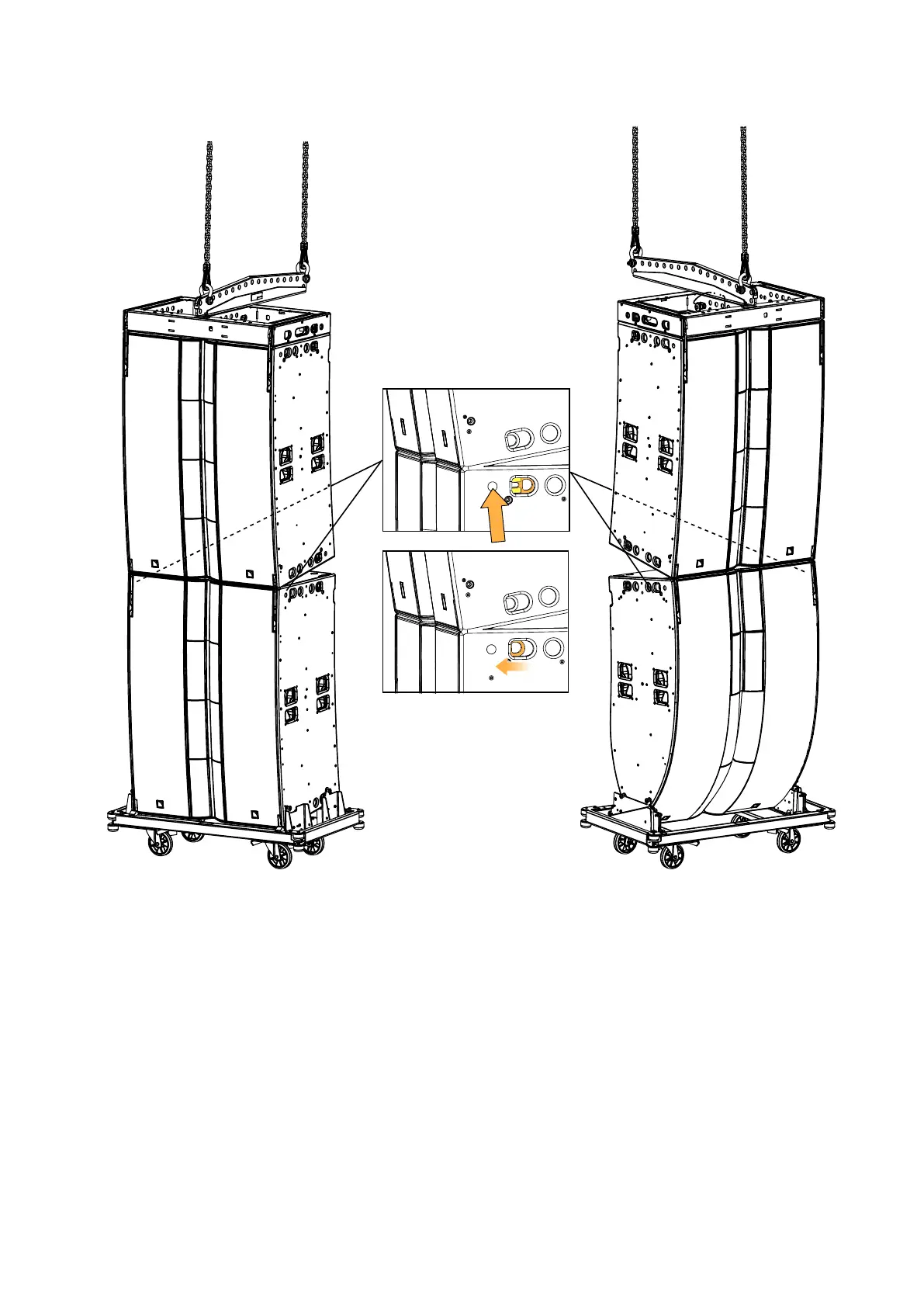

d) Press the buttons on both sides of the bottom enclosure to activate the automatic locking system.
The latches retract when the button is pushed (no yellow label visible).
e) Slightly raise the array so that the wheels are 30 cm / 1 ft from the ground.
L2 owner's manual (EN) version 5.0 103
