Rigging system description
Screens
L2-SCREEN

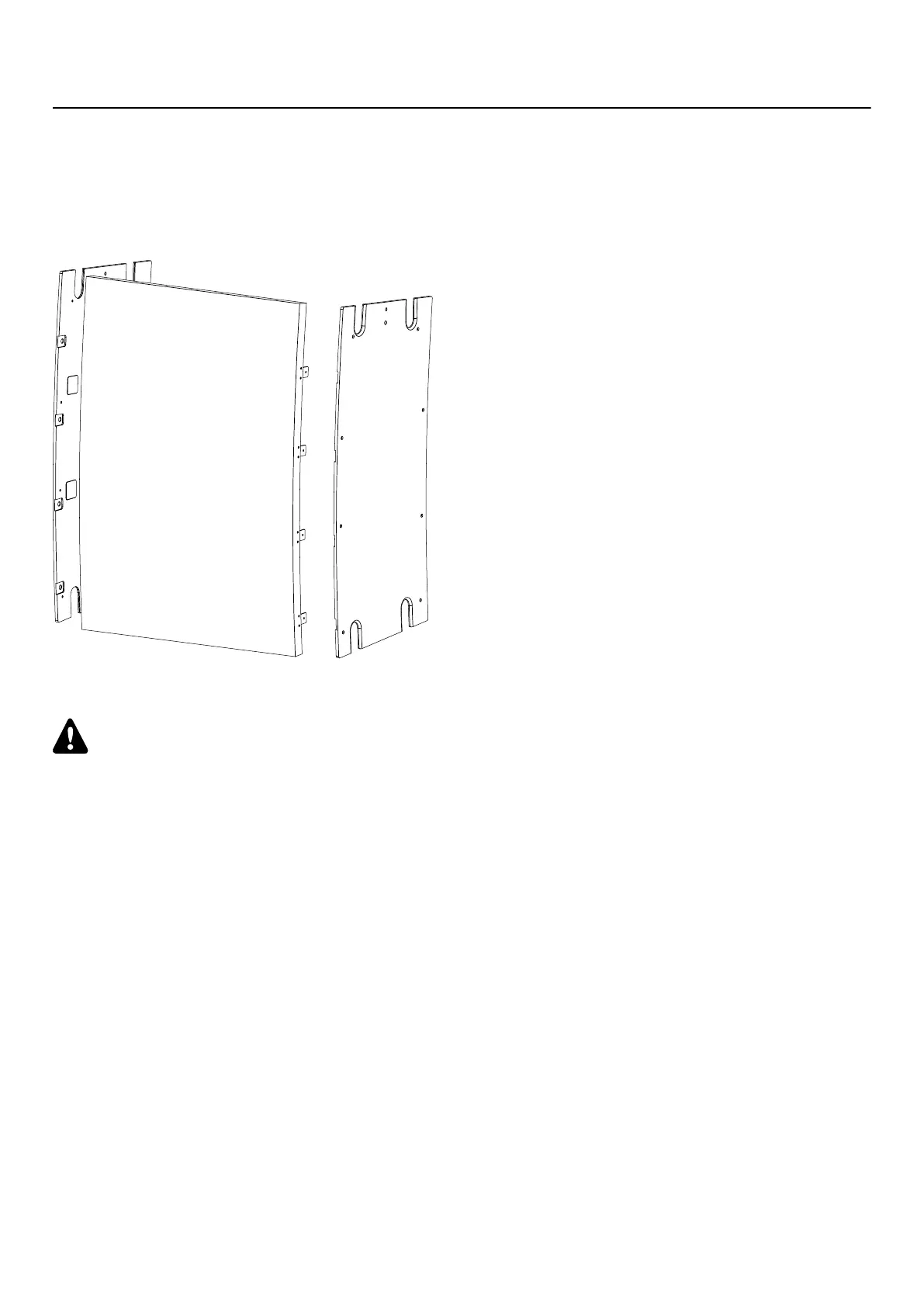

L2-SCREEN is composed of an acoustically transparent screen and two side panels for L2, designed for flown
arrays in fixed installation applications. The cutouts in the side panels are designed to use L2-RIGBAR as the main
lifting accessory at the front or at the back, or as a pullback accessory at the bottom. The inserts for mounting L2-
LASERMOUNT remain accessible on both side panels.
The screen is secured to L2 with 8 M4×40 screws, in place of the grill screws. The side panels are secured to L2 with 8
M5×30 screws each, in place of some of the cabinet screws.
Risk of falling objects
Only use the rigging screws provided by L-Acoustics.
Do not use the grill or cabinet screws to secure the screen and panels.
If removing the screen and panels, put the grill or cabinet screws back in place to avoid the risk of falling
objects.
