Rigging system description
Rigging elements

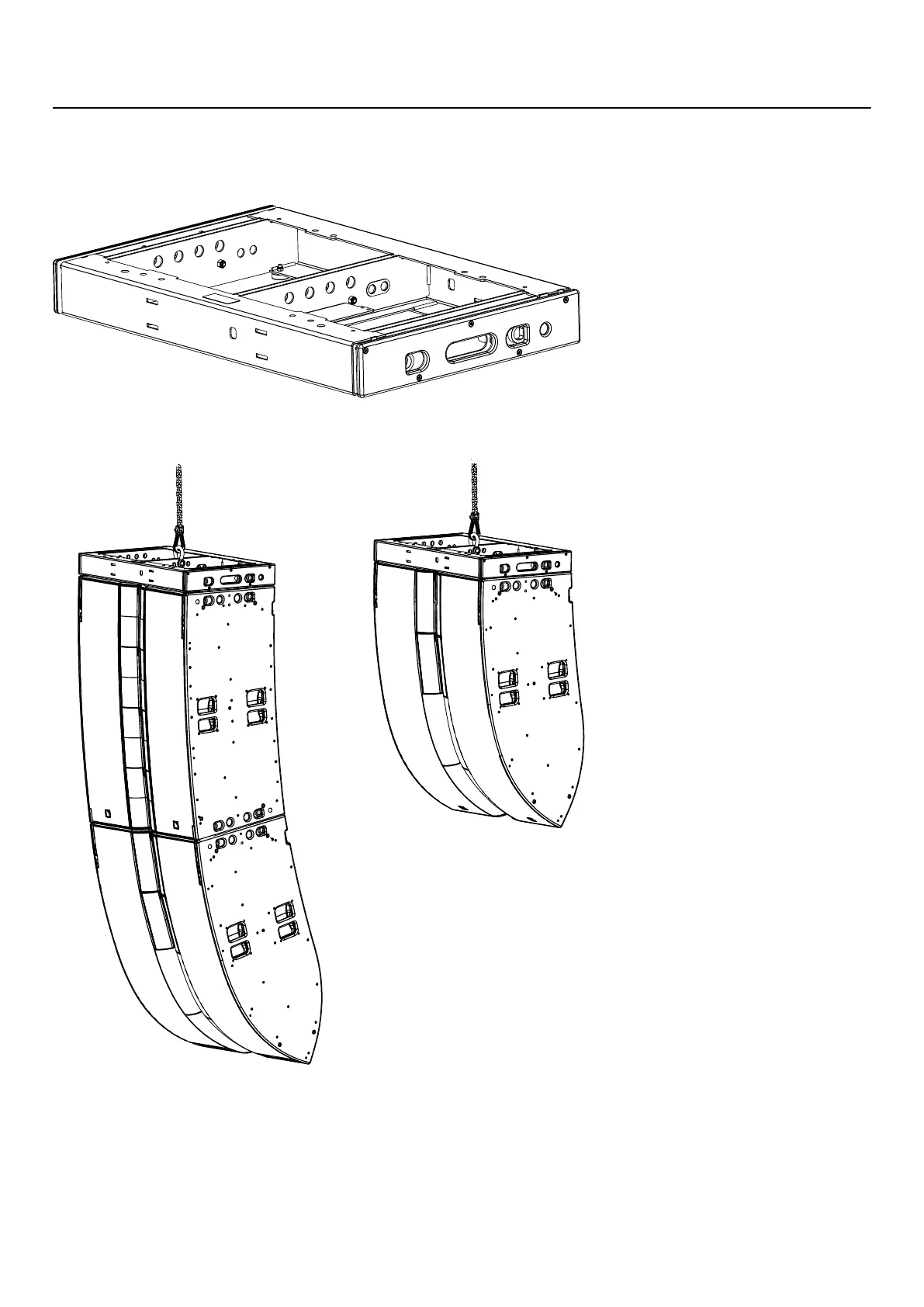

L2-BUMP
L2-BUMP is a rigging frame designed for flying L2 and L2D.
L2-BUMP can be used as the main lifting accessory for flying arrays of L2 with L2D, or a single L2D using the included
two Ø19 mm shackles WLL 3.25 t and extension sling.
L2-BUMP features a plate and openings for the use of a laser inclinometer. Refer to APPENDIX B: Installing a laser
inclinometer (p.204).
L2 owner's manual (EN) version 5.0 29
