Connection to LA amplified controllers
Connection to LA amplified controllers
Refer to the Amplification reference technical bulletin for the latest information on compatibility with amplified
controllers and cabling schemes for all enclosure types.
Enclosure drive capacity per amplified controller
LA7.16/LA7.16i
per output / total
L2 1
L2D 1
Cabling schemes for L2 / L2D

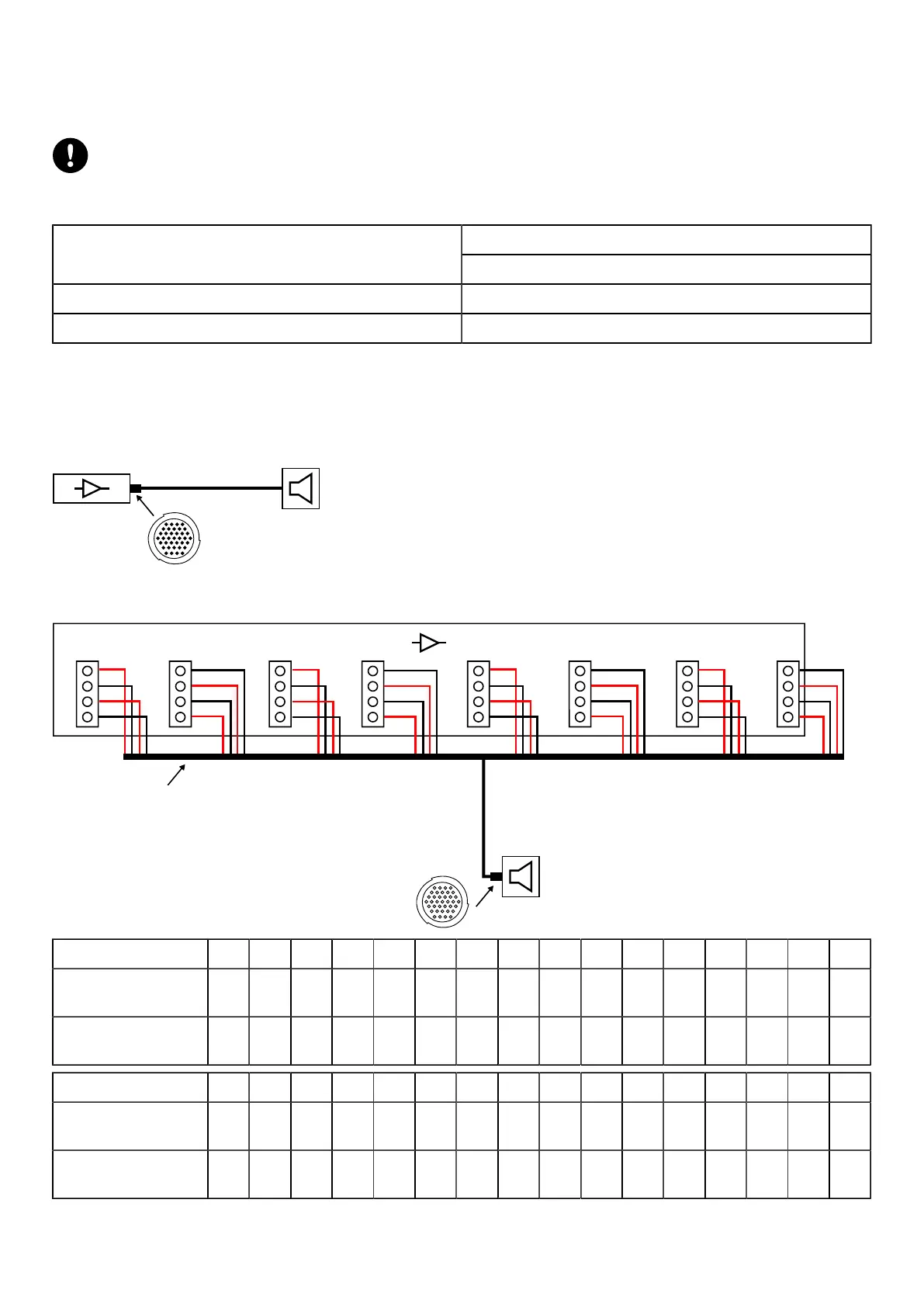

Refer to the cabling schemes to connect the enclosures to different types of output configurations.
16-channel connector output
SC32
LA7.16i terminal block output
2−
2+
1−
1+
3+
3−
4+
4−
7+
7−
8+
8−
6−
6+
5−
5+
10−
10+
9−
9+
11+
11−
12+
12−
14−
14+
13−
13+
15+
15−
16+
16−
SC32 BE
custom patch
LA7.16i 1+ 1- 2+ 2- 4- 4+ 3- 3+ 5+ 5- 6+ 6- 8- 8+ 7- 7+
SC32 BE
conductor cable
28 29 30 31 32 11 10 27 16 26 9 5 25 17 13 1
SC32 BE cable
connector
A B C D H G F E J K L M S R P N
LA7.16i 9+ 9- 10+ 10- 12- 12+ 11- 11+ 13+ 13- 14+ 14- 16- 16+ 15- 15+
SC32 BE
conductor cable
8 4 3 2 7 24 18 14 6 15 12 19 20 21 22 23
SC32 BE cable
connector
T U V W b a Z X c d e f k j h g
