L-Acoustics L2 - Disassembly and Reassembly Procedures

Corrective maintenance
Disassembly and Reassembly procedures
D/R - Grill
Tools
• torque screwdriver
• T20 Torx bit
Repair kit
G03645 - KR loudspeaker 12'' L2(D)
G03647 - KR loudspeaker 10'' L2(D)
×4
S100156
M4×30 Torx
Disassembly
Procedure

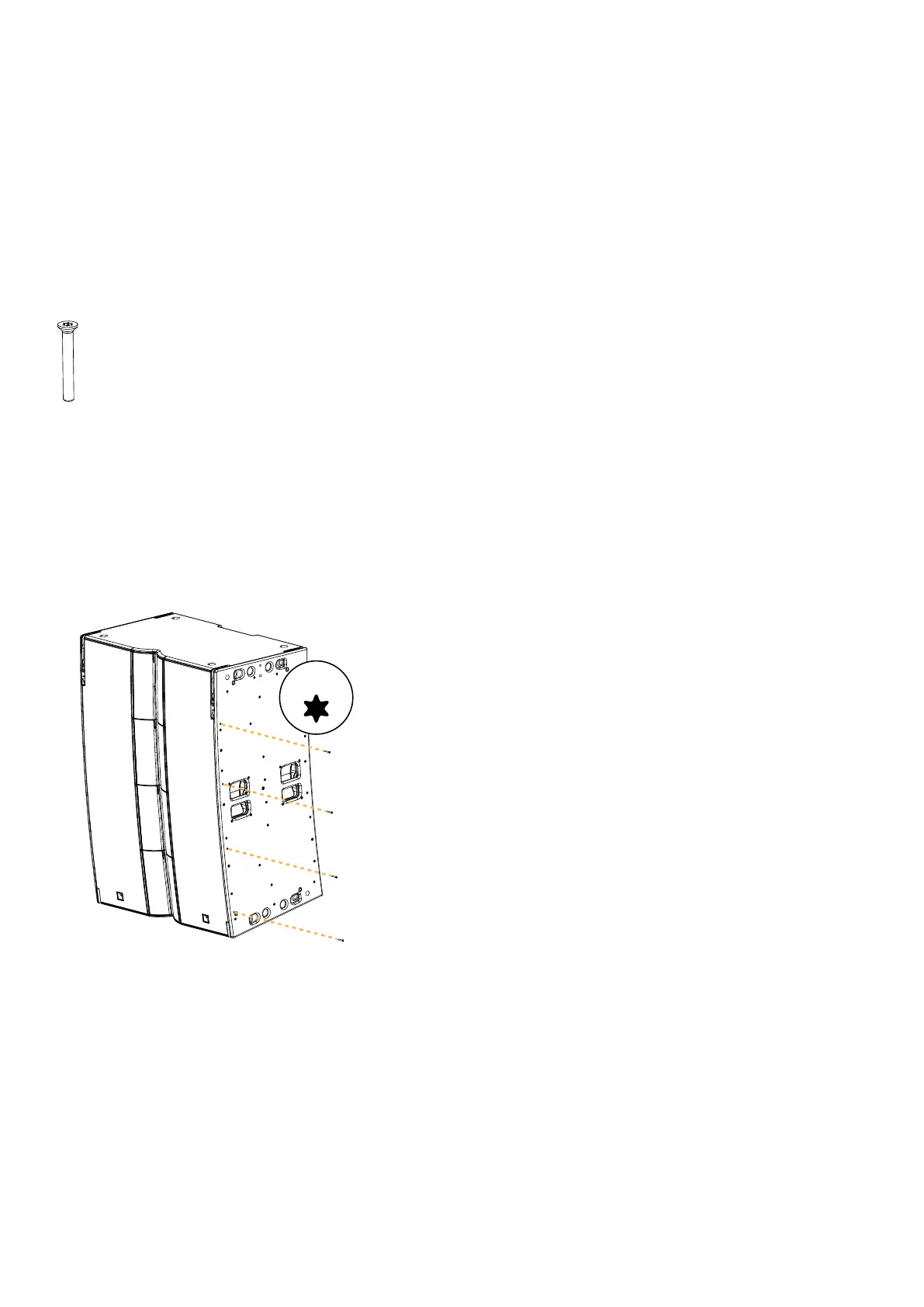

1. Remove the four screws securing the grill.
Use the torque screwdriver and the T20 Torx bit.
T20
