Rigging procedures
Flying
Securing LA-RAK III on L2-BUMP with LA-RAKMOUNT
Type of deployment flown array
Rigging accessories L2-BUMP
LA-RAKMOUNT
8 M8×30 screws (provided with LA-RAKMOUNT)
2 L2-BAR
4 Ø19 mm shackles WLL 3.25 t
Tools screwdriver
T30 Torx bit
Min number of operators 2
Risk of falling objects
Verify that no unattached items remain on the product or assembly.
Procedure

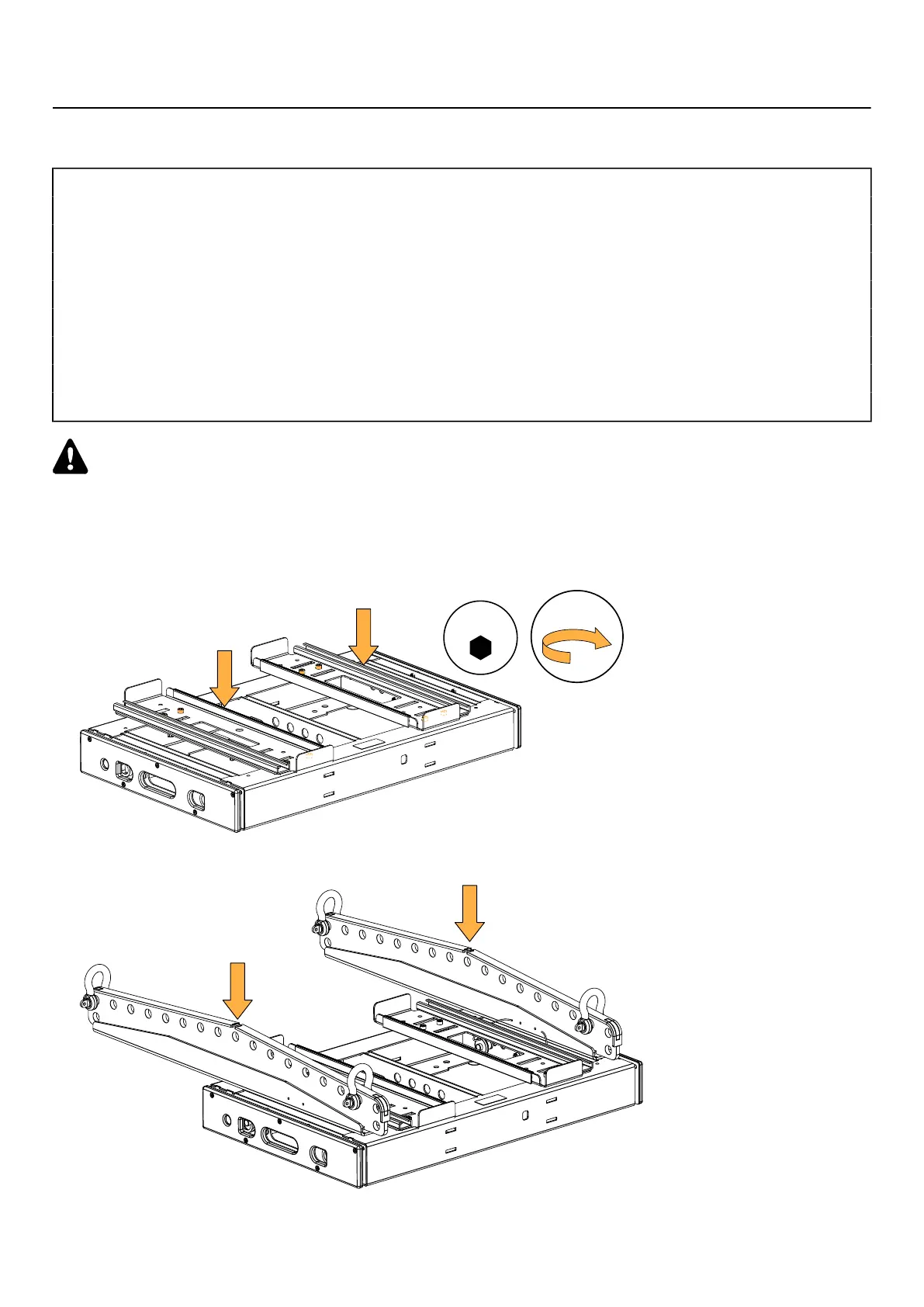

1. Position and secure the two rails of LA-RAKMOUNT to L2-BUMP with the 8 M8×30 screws.
Use the electric screwdriver. Set the torque to 5 N.m.
5 N.m
13 mm
2. Install L2-BAR on each side of L2-BUMP.
