Rigging procedures
L2-BAR can be attached to the L2-BUMP as a rear or a front extension and in position A or B.
1
2
3 4
A B A B
Front Rear

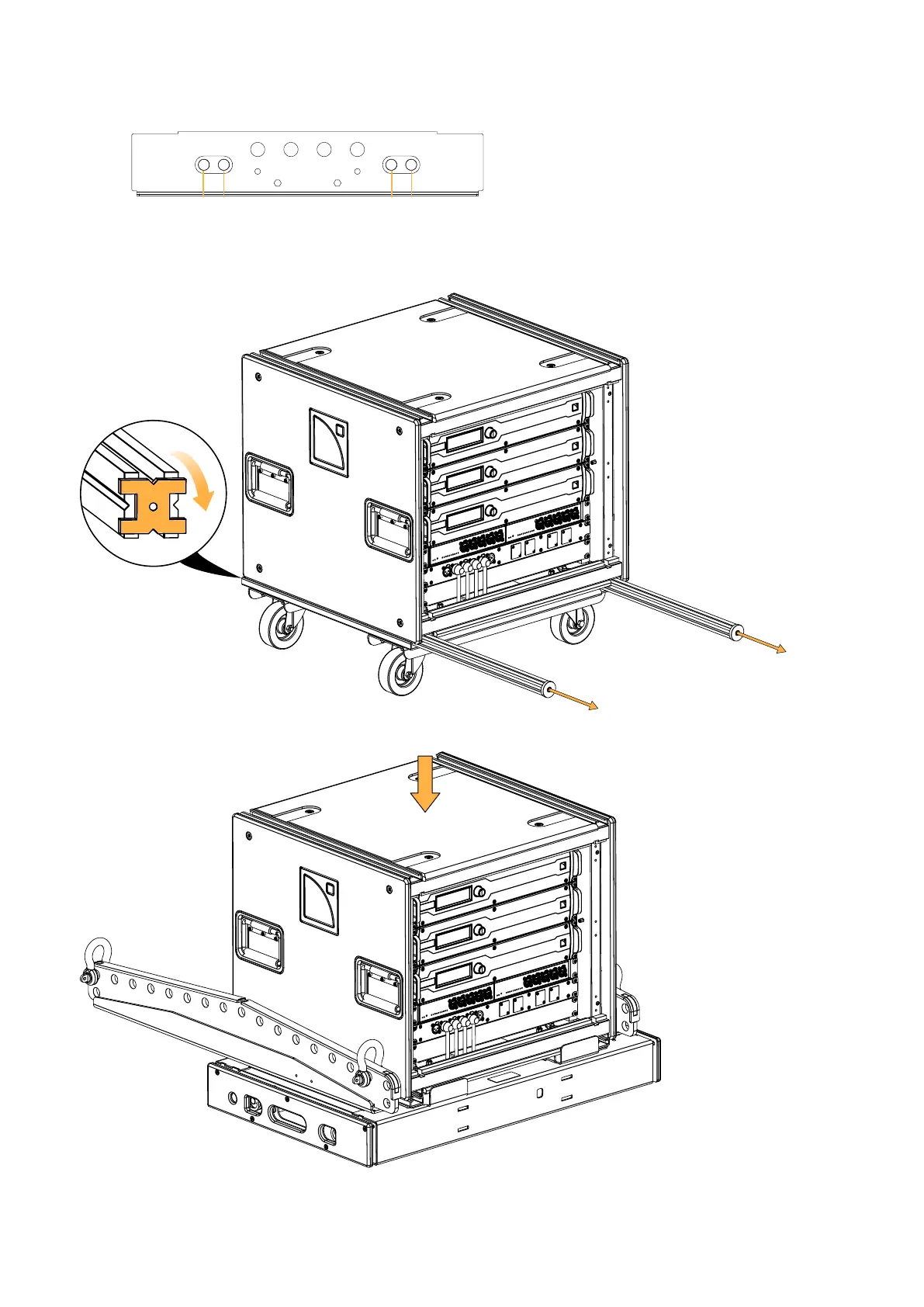

3. Remove the coupling bars from LA-RAK III.
Turn the spring-loaded safety mechanisms to release the bars and slide them out.
4. Position LA-RAK III on the rails.
