Rigging system description

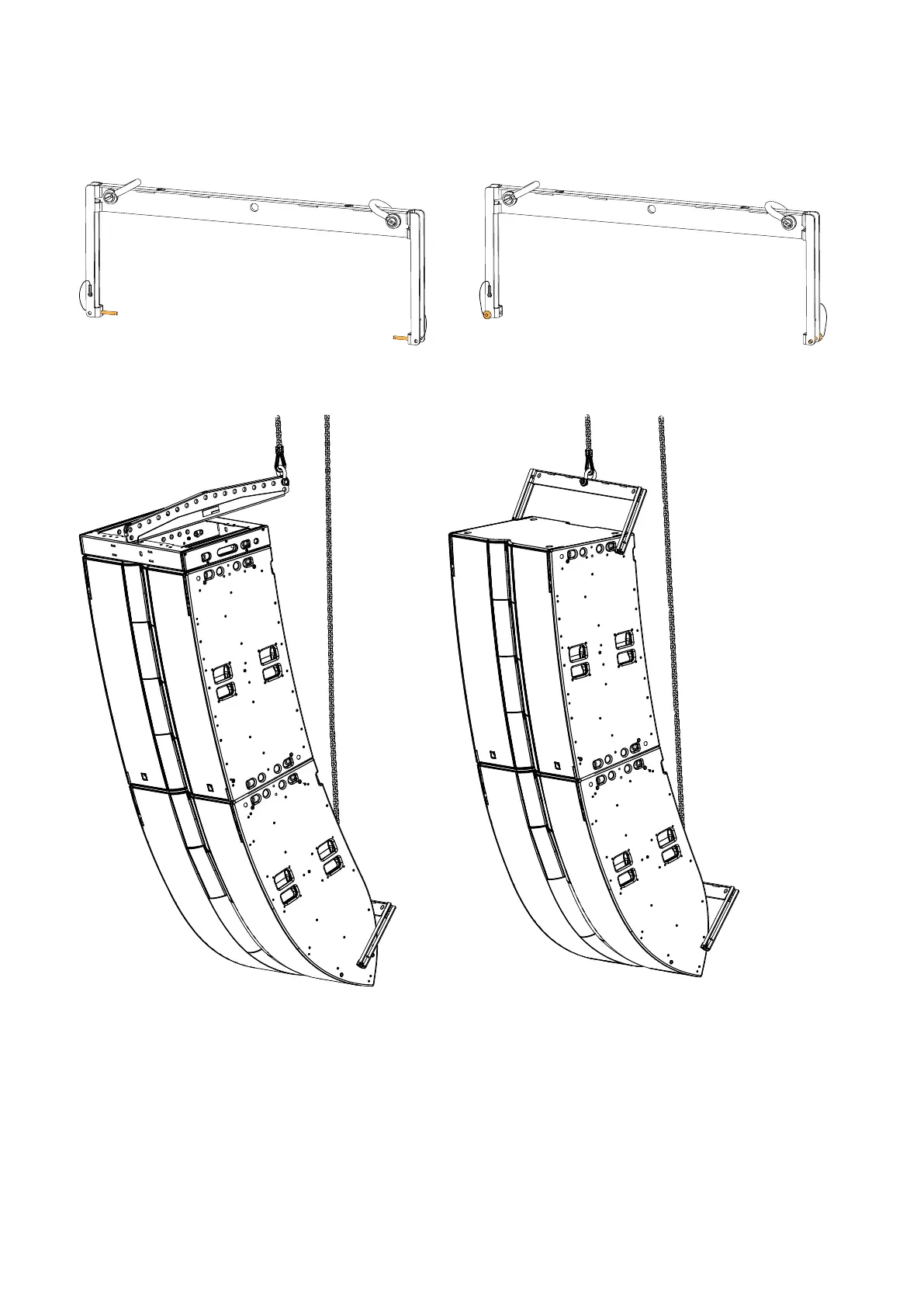

L2-RIGBAR
Secured at the bottom of the array using two ball-locking pins, L2-RIGBAR can be used as a pullback either with L2-
BUMP combined with L2-BAR or another L2-RIGBAR as the main lifting accessory, to provide a lightweight solution for
flying an L2 array.
position in use storage position
L2-RIGBAR is equipped with two Ø19 mm shackles WLL 3.25 t.
32 L2 owner's manual (EN) version 5.0
