Rigging system description
L2-BAR

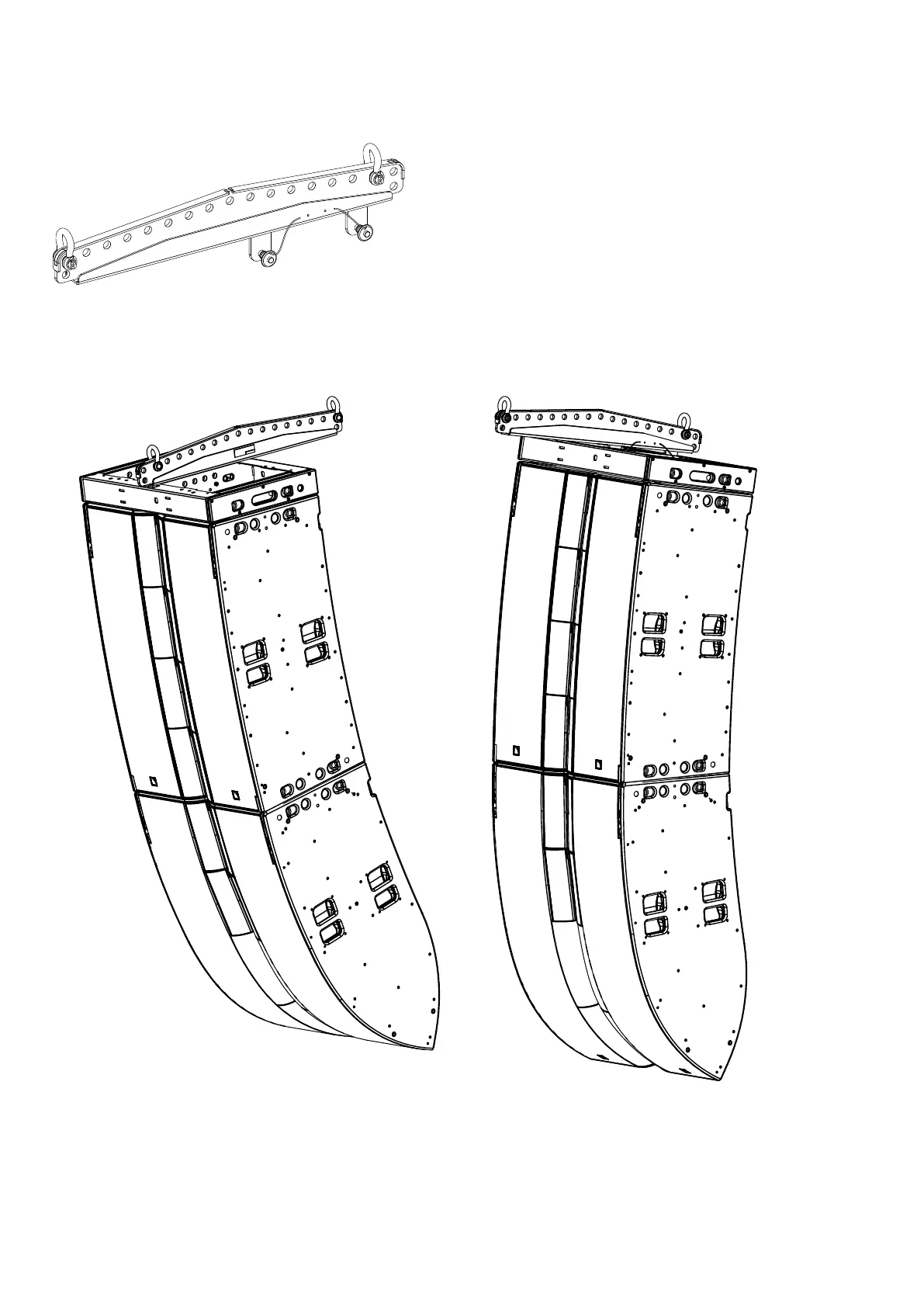

L2-BAR is an extension bar that can be combined with L2-BUMP using two ball-locking pins.
By adding L2-BAR to L2-BUMP, the site angle range can be increased. Seventeen holes are available on L2-BAR,
which can be attached to L2-BUMP as a rear or a front extension and in position A or B, thus offering a total of 68
discrete positions for pickup points.
The rear extension is suited to downwards site angles. The front extension is suited to upwards site angles.
Alternatively, two L2-BAR can be attached to the sides of the L2-BUMP, in particular if using LA-RAKMOUNT and LA-
RAK III. Refer to LA-RAKMOUNT (p.35).
L2 owner's manual (EN) version 5.0 31
