Rigging system description
L2-LASERMOUNT

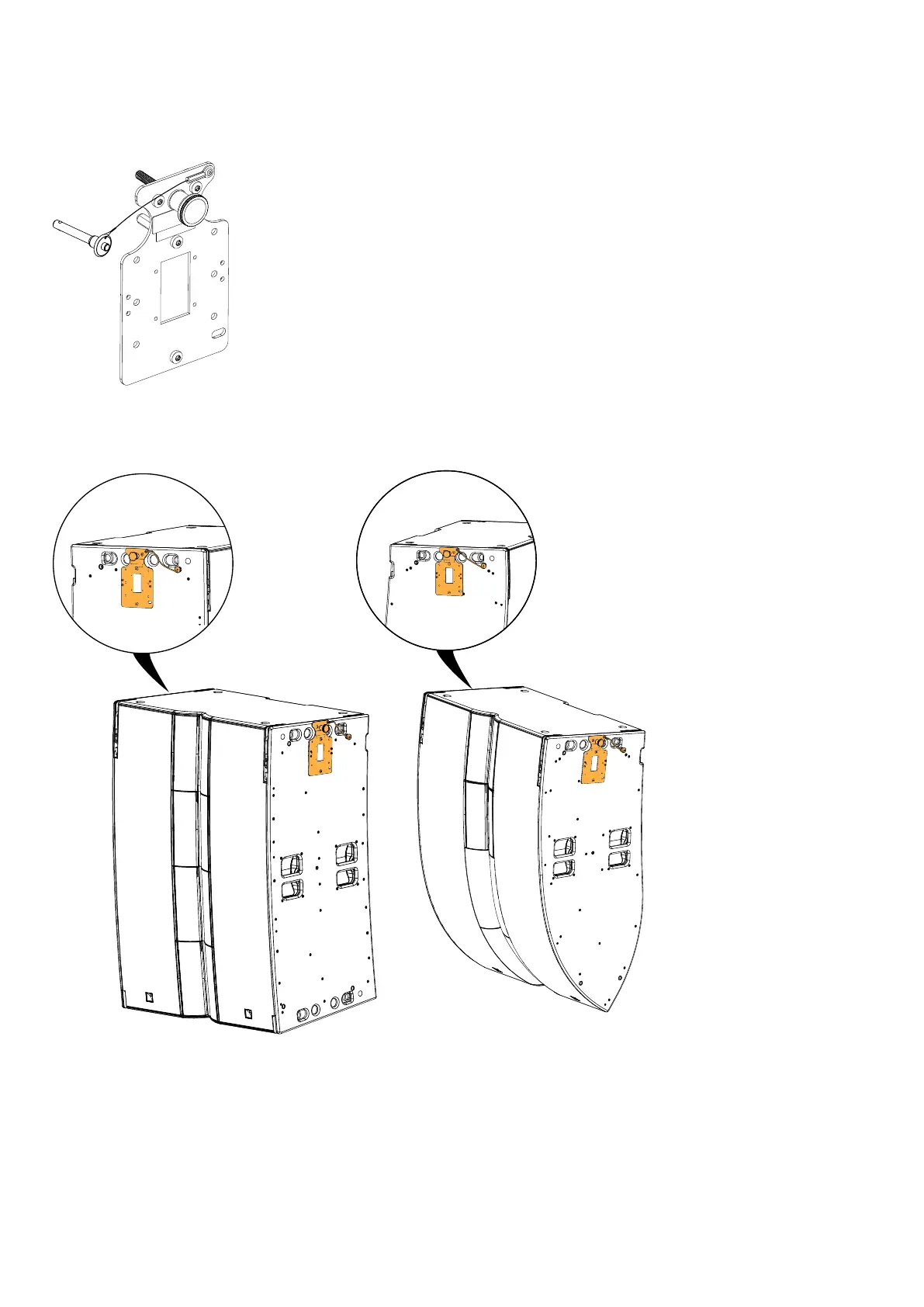

L2-LASERMOUNT is designed to secure a laser inclinometer to the inserts of L2 or L2D using a knob and a ball-
locking pin.
L2-LASERMOUNT is installed on one side of the enclosure depending on the availability of the insert for the ball-
locking pin. On the right side of the enclosure, the ball-locking pin is secured using the rear insert. On the left side of
the enclosure, the ball-locking pin is secured using the front insert.
Refer to APPENDIX B: Installing a laser inclinometer (p.204).
L2 owner's manual (EN) version 5.0 37
