Loudspeaker configurations

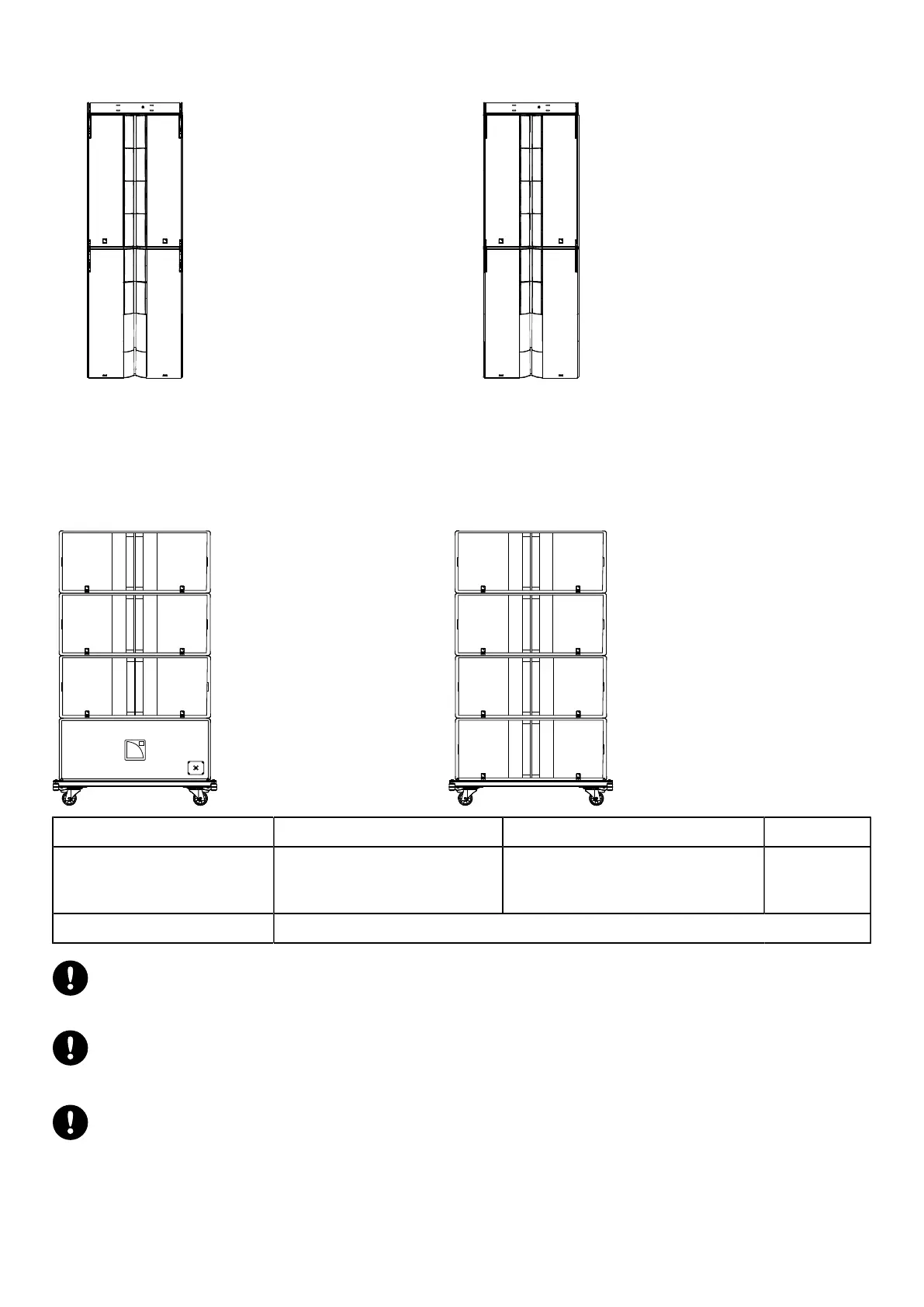

L2/L2D line source with separated KS28
Enclosure L2 L2D KS28
Preset [L2 70] [L2 90] [L2 110]
[L2 70_S] [L2 90_S] [L2 110_S]
[L2D 70] [L2D 90] [L2D 110]
[L2D 70_S] [L2D 90_S] [L2D 110_S]
[KS28 L2]
[KS28 L2_C]
[KS28 L2_Cx]
Frequency range (-10 dB) 25 Hz - 20 kHz
Grouping subwoofers
Place the subwoofer enclosures side by side. If not possible, the maximum distance between two adjacent
acoustic centers must be 2.8m if the upper frequency limit of the subwoofer system is at 60Hz.
Use [xxxx_xx_C] or [xxxx_xx_Cx] on a reversed subwoofer in a cardioid configuration
The cardioid configuration consists in reversing 1 element in an array of 4 subwoofers.
Refer to the subwoofer owner's manual and to the Cardioid configurations technical bulletin.
Delay values
Do not forget to add the pre-alignment and geometric delays depending on the configuration.
