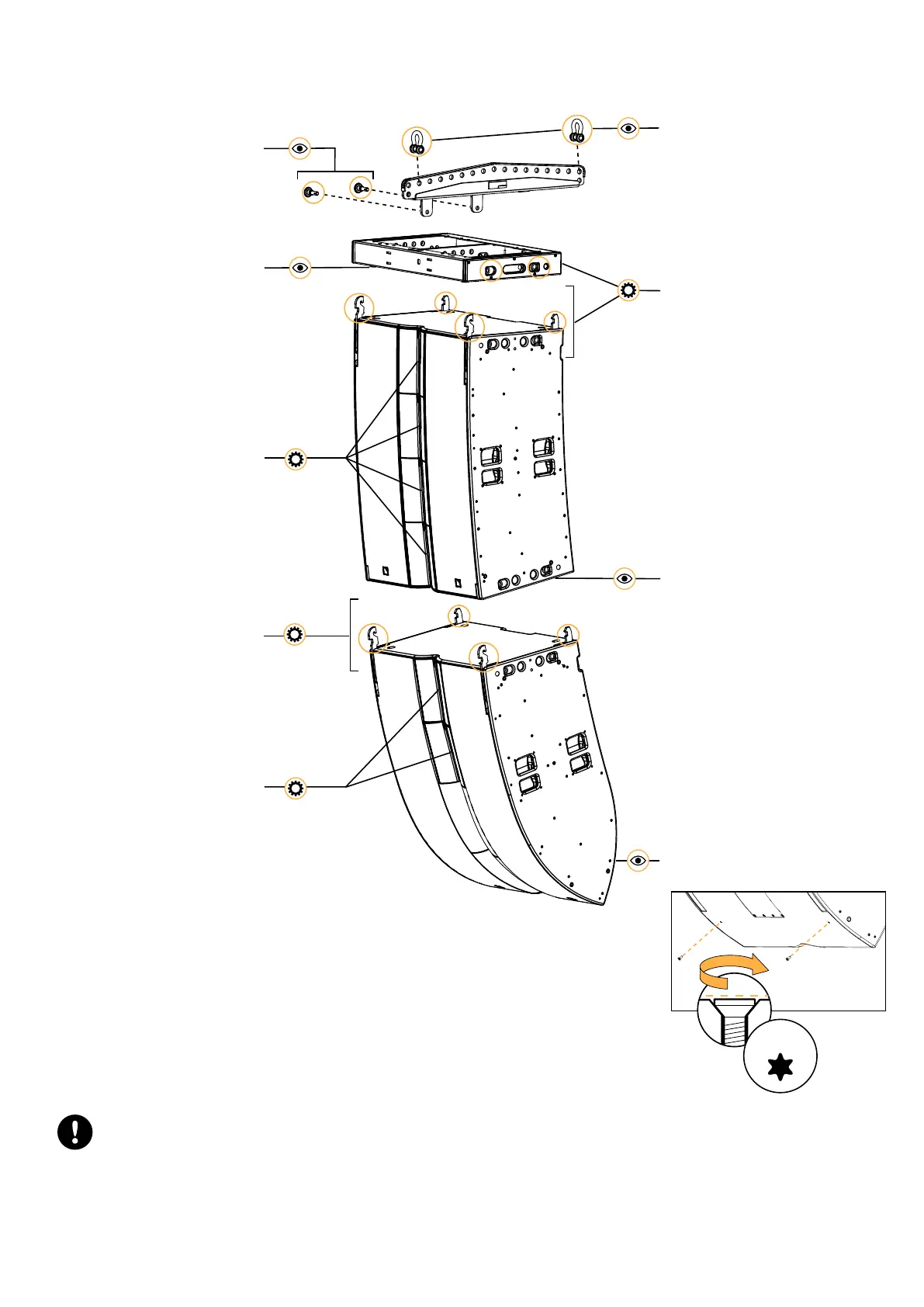

Inspection and preventive maintenance
L2/L2D array with L2-BAR and L2-BUMP
Ball-locking pins (p.66)
Shackles (p.65)
Ground runners (p.68)
Adjustable fins check
(p.69)
Rigging check (p.71)
Rigging check (p.71)
Ground runners (p.68)
Adjustable fins check
(p.69)
if exposed to water, remove
the two M6 × 16 screws at
the rear to drain the cabinet
after each exposure
T25
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
L2 owner's manual (EN) version 5.0 59
