Green = Plate present
Flip Destination Plate
The Echo Liquid Handler can be commanded to flip its destination plate gripper stage into the inverted or upright positions. Select
the appropriate checkbox.
If the destination plate gripper stage is still inside the Echo Liquid Handler when commanded to flip upright, a Flip Dest Plate Up
Error will appear.

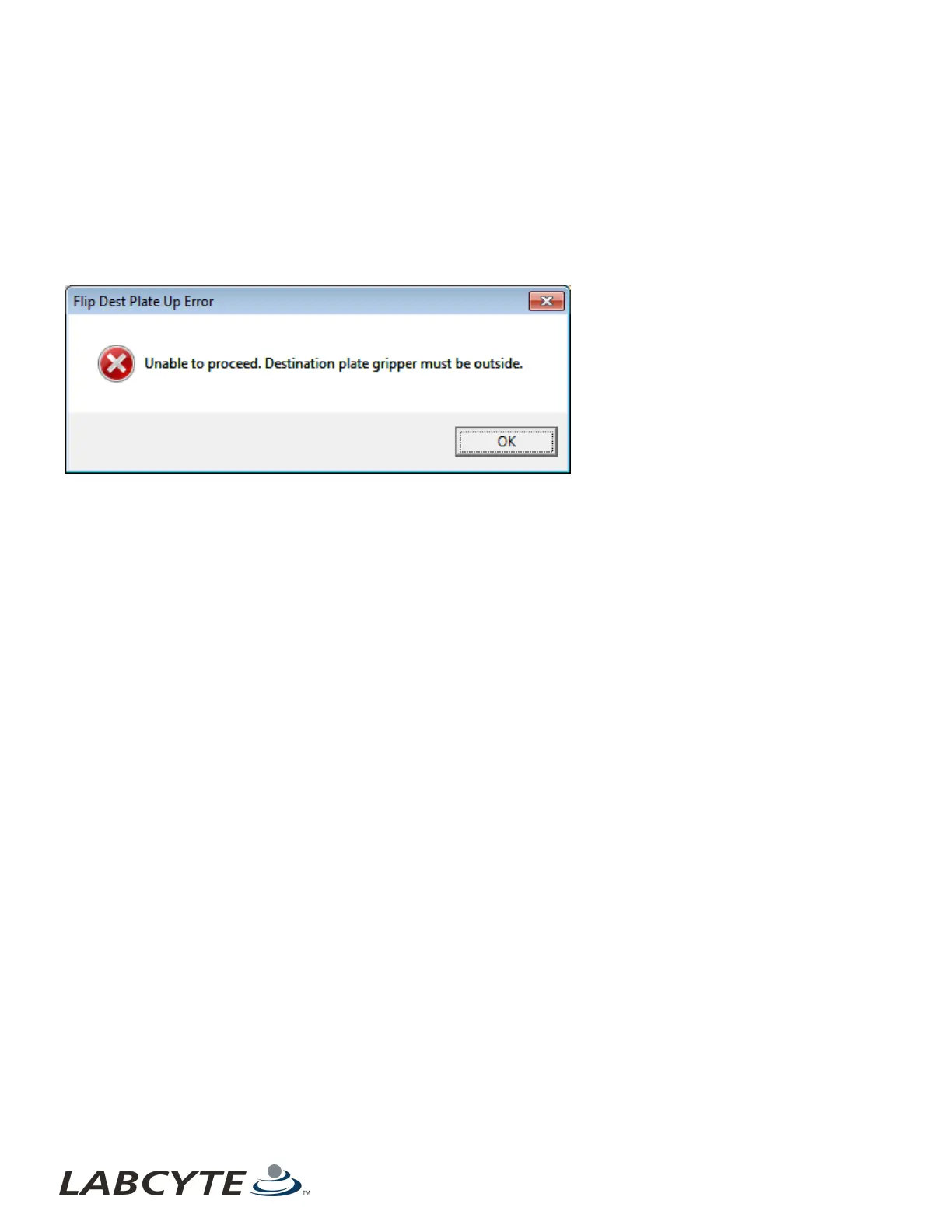

Figure 78: Flip Dest Plate Up Error dialog box
The associated indicator lights report the current rotational position of the destination plate gripper stage.
Plate Dryer Up/Down and On/Off
The Echo Liquid Handler can be commanded to raise or lower the plate dryer nozzle, or to turn its vacuum supply on or off. Select
the appropriate checkboxes.
If necessary, the Echo Liquid Handler will move the plate dryer beneath the source plate prior to raising it.
The associated indicator lights report the current position of the plate dryer and whether its vacuum is turned on or off.
Anti-Static Bars On/Off
The Echo Liquid Handler can be commanded to turn its anti-static bars on or off at any time.
The associated indicator lights report whether the anti-static bars are turned on or off.
Upper Anti-Static Bar Up/Down
The Echo Liquid Handler can be commanded to lower or raise its upper antistatic bar.
The upper anti-static bar can be raised or lowered regardless of the door or source plate positions. If the upper anti-static bar is
commanded to be lowered while the destination plate gripper stage is extended outside of the Echo Liquid Handler, an Actuate
Ionizer Down Error will appear.
The associated indicator lights report on the position of the upper anti-static bar.
Coupling Nozzle Up/Down
The Echo Liquid Handler can be commanded to raise or lower its coupling fluid nozzle, also called the bubbler, at any time.
The associated indicator lights report the position of the coupling fluid nozzle.
Coupling Pump On/Off
The Echo Liquid Handler can be commanded to turn the coupling fluid pump on or off.
The associated indicator lights report whether the coupling fluid pump is turned on or off.
Echo Liquid Handler Software CHAPTER 5 | Software
120
