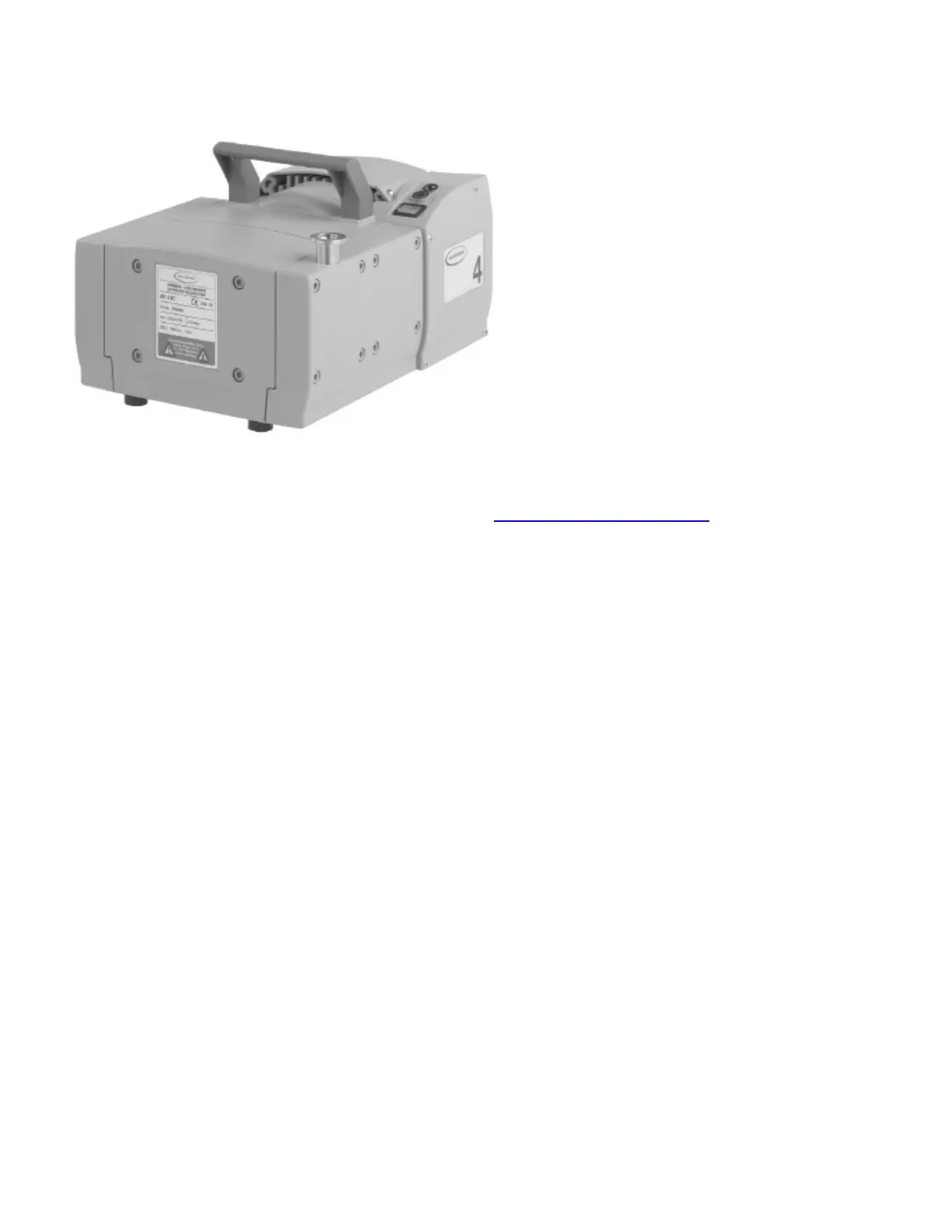

Figure 29: Vacuubrand MZ 2S-NT vacuum system
When vacuum demand is at its highest, a 10 L surge tank (provided with the Echo Liquid Handler) ensures a continuous source of
vacuum. It prevents system errors resulting from low vacuum in laboratories where house vacuum barely meets the minimum
vacuum requirement or is inconsistent due to other laboratory demands.
For information on monitoring the vacuum supply pressure, see the Vacuum Supply Pressure Indicator topic.
43 PN | 001-11665
USER GUIDE | Echo® 525 Liquid Handler User Guide Component Description
