2. Click the Next button to open the second page of the Add New Protocol wizard dialog box.

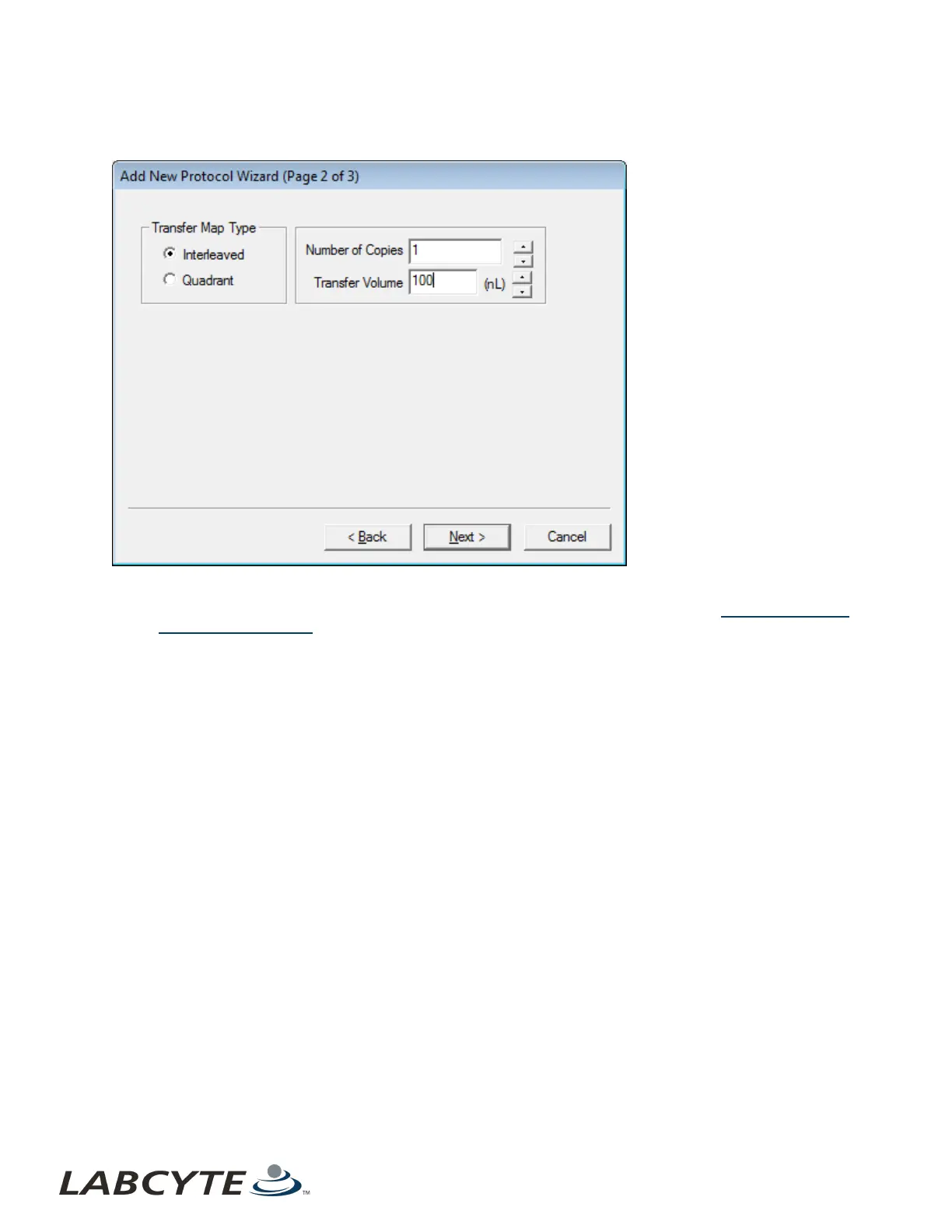

Figure 57: Add new protocol wizard, page 2 of 3
Enter the following information:
l Transfer Map Type: Select an interleaved or a quadrant liquid transfer protocol type. See What types of liquid
transfers are supported?.
l Number of Copies: Enter the number of times the protocol will be executed. The valid range is 1 to 10,000 copies.
You are prompted to load and unload the source microplate and the specified number of destination microplates.
l Transfer Volume: Enter the total volume of fluid to be transferred. The valid range is dependent on the source
microplate is 25 to 10000 nL in increments of 25 nL. If you enter the transfer volume directly instead of using the
increment/decrement buttons, remember that the value must be a multiple of the minimum transfer volume.
Echo Liquid Handler Software CHAPTER 5 | Software
98
