78 Controls and Indicators

 The deadman switch is used as a safety device to ensure that every movement of the arm is

absolutely wanted and controlled by the operator. That is, if the operator is not pressing the

deadman switch while trying to move the arm with the joystick, no movement will occur. With

such a safety feature, an accidental movement of the joystick will not be transmitted to the arm.

Joysticks operate at 45° and 90° angles. As a result, you can perform two functions at the same time;

for example, you can move the arm and the gripper simultaneously.

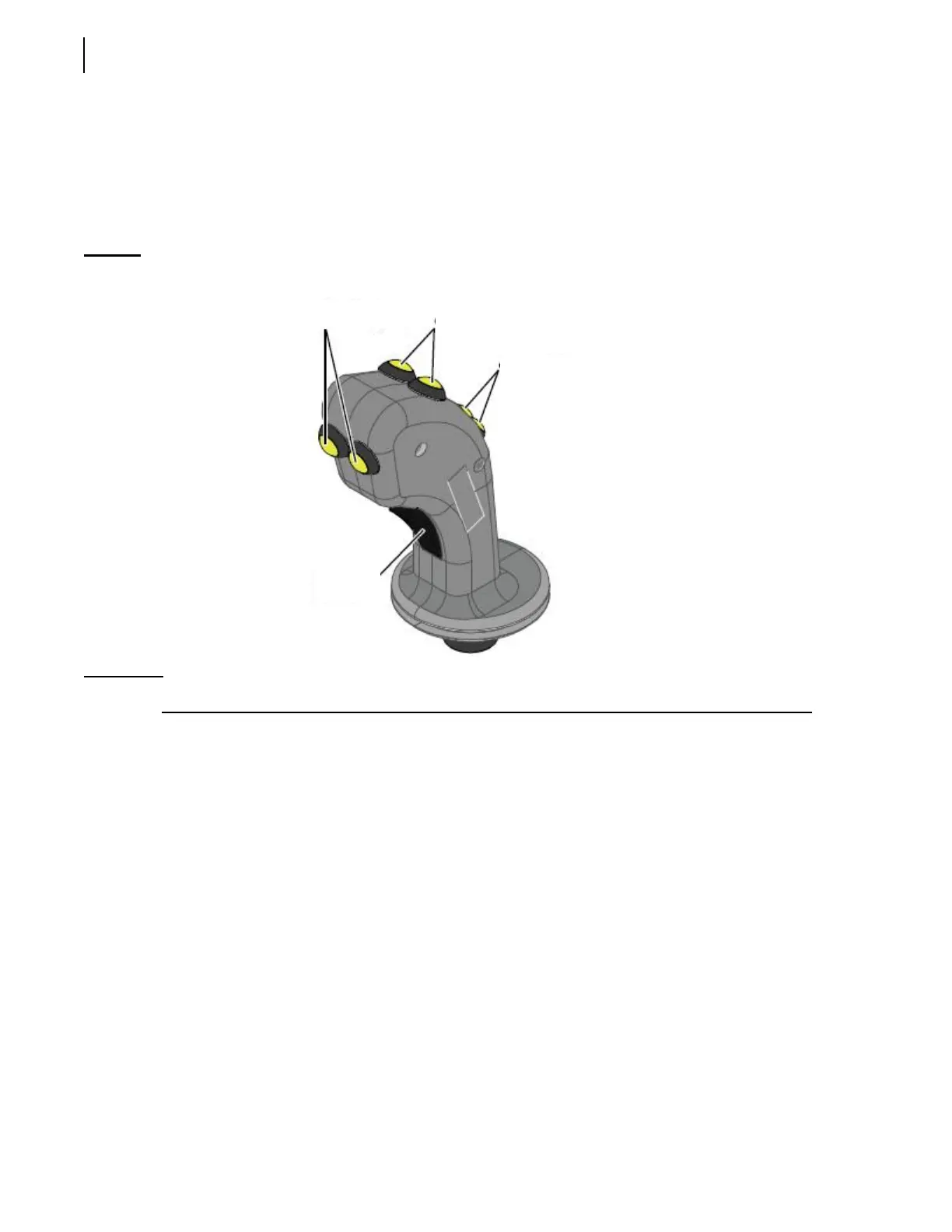

Figure 3-46

Automated arm joystick

IMPORTANT: Deadman switch must be depressed to activate in/out and up/down commands.

 Shift the joystick forward at 90° toward the gripper down lettering (see Figure 3-47) to lower the

gripper.

 Shift the joystick forward at 45° between the gripper down and arm extend lettering to lower the

gripper and extend the arm.

 Shift the joystick toward the streetside at 90° to the arm retract lettering to retract the arm only.

 Shift the joystick backward at 45° between the gripper up and arm retract lettering to raise the

gripper and retract the arm at the same time.

 Shift the joystick backward at 90° to the gripper up lettering to raise the gripper only

 Shift the joystick toward the curbside at 90° to the arm extend lettering to extend the arm only.

Optional buttons

Optional

buttons

Gripper

buttons

Deadman

switch
