Labrie MINIMAX - Multiplexed Switch Actuators (2)

Controls and Indicators 61

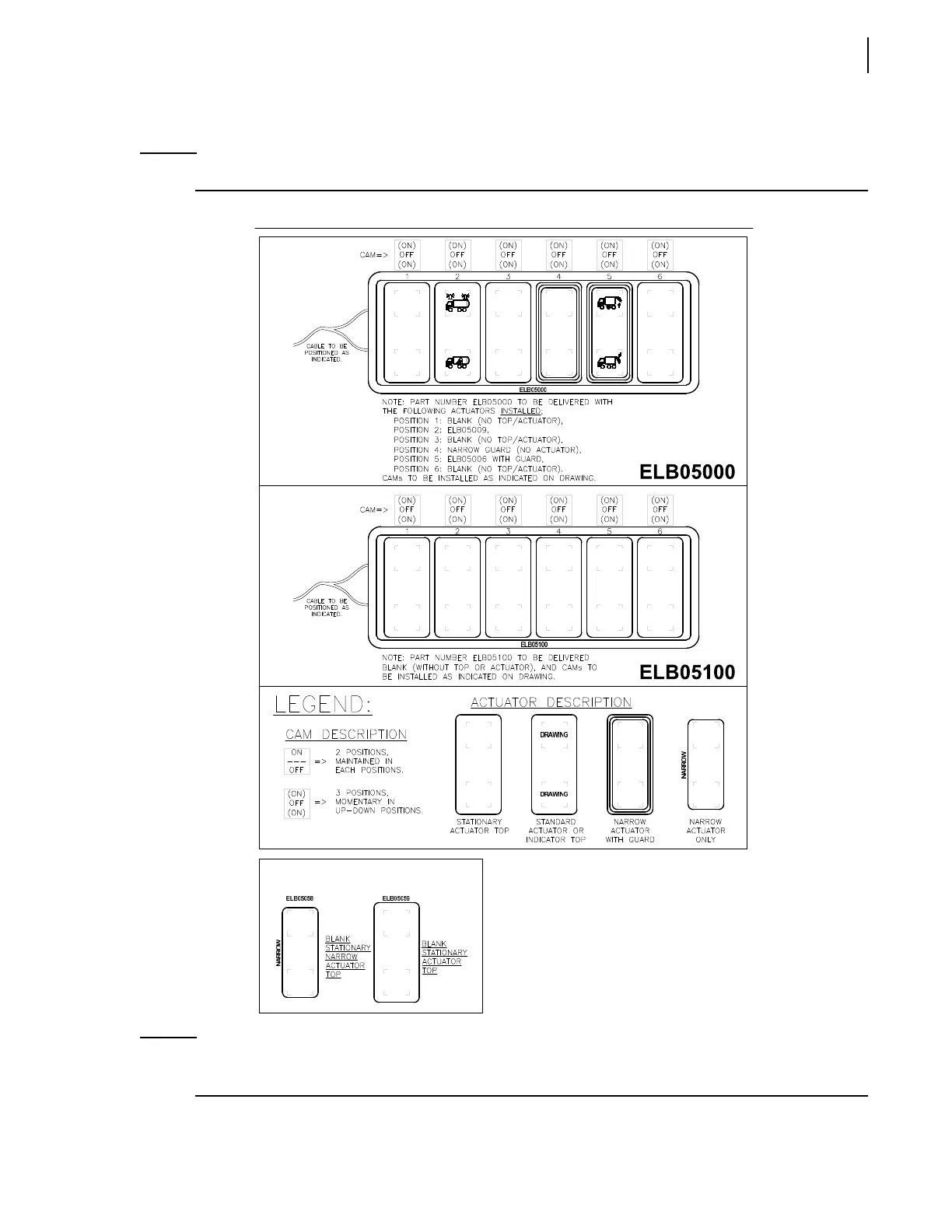

Multiplexed Switch Actuators (2)
NOTE: This illustration and the preceding one were taken from PDF file No 159535.
NOTE: 1- All symbols to be negative lens.
2- Electronic file for the symbols available on request from Labrie Enviroquip Group only.
