Safety 13

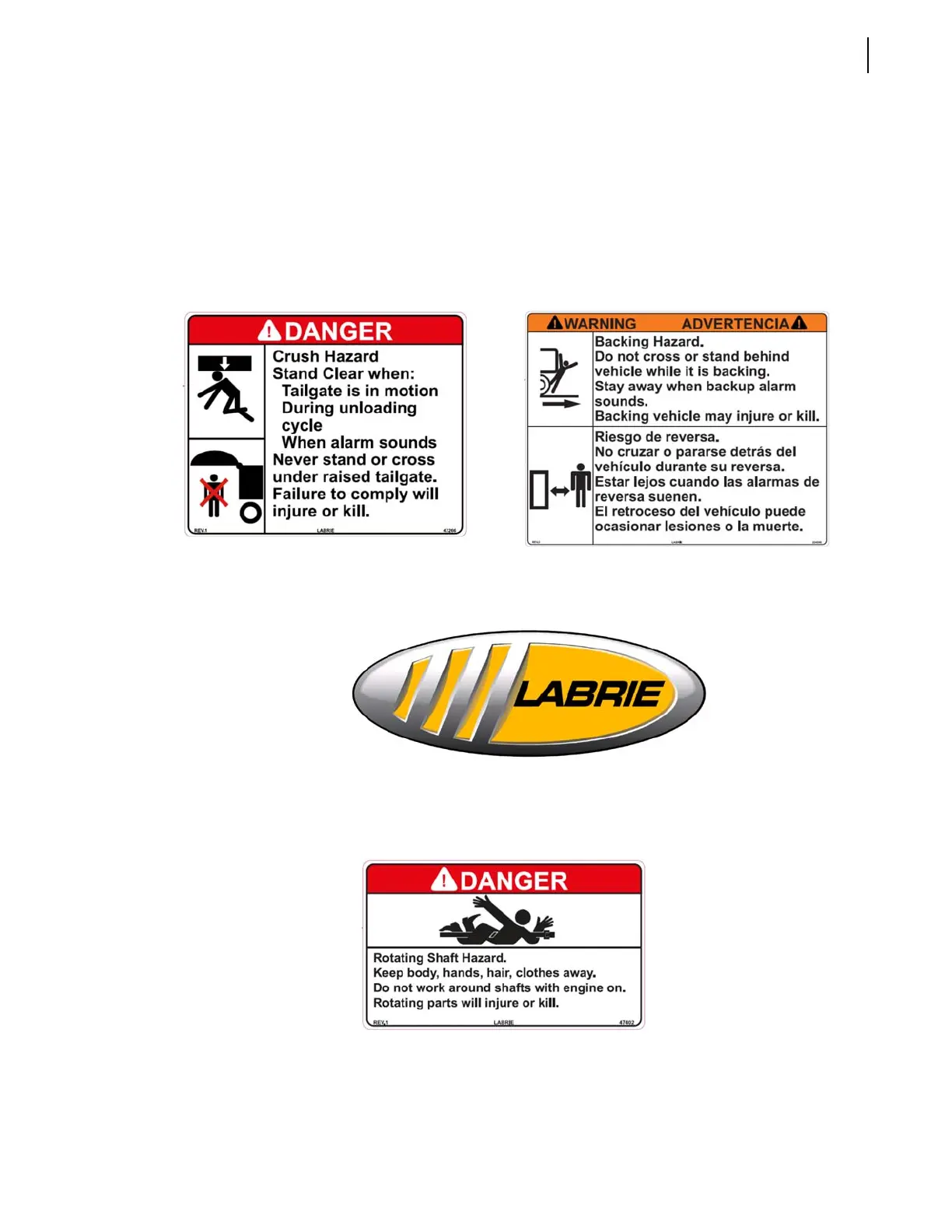

Safety and Warning Decals

Pay careful attention to all safety and warning decals while working in and around the MINIMAX

Keep your decals clean and in good condition at all times. For replacement decals, please call

LabriePlus. Decals may vary from one unit to another.

Decals on Tailgate

Decal on Chassis

32307

204540

204516 - English/French

47266

79835 - English/French

120973 - English/Spanish

47402

84154 - English/French

84155 - English/Spanish
