Manikin Setup

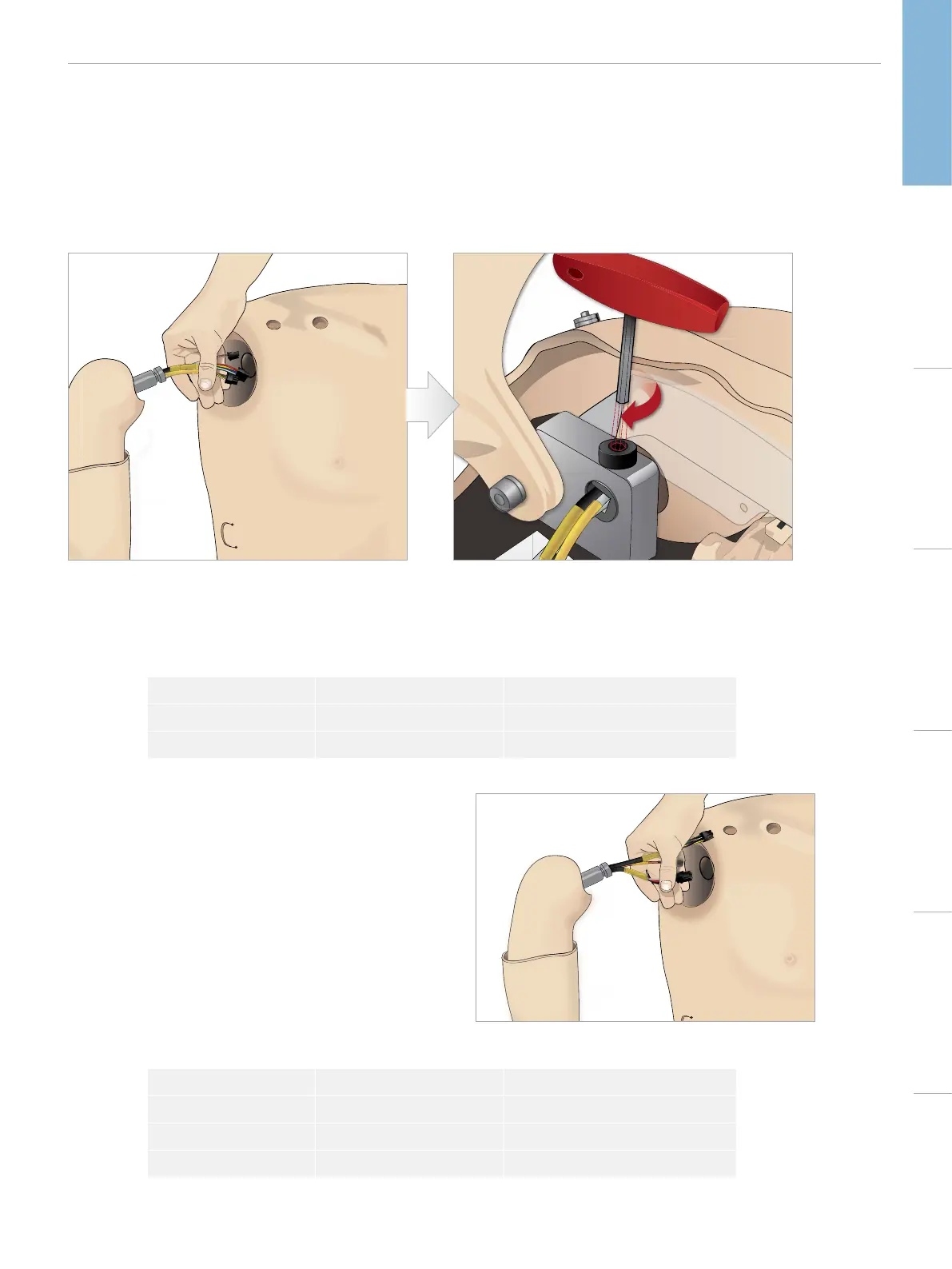

ATTACHING THE LEFT ARM
Open the torso as described in steps 1 - 4, Opening the Torso. Follow the procedures listed below in reverse to detach the arms.
1 Align the left arm axle with the shoulder socket.
2 Ensure that the shoulder screw is loose enough to allow the arm axle to slide easily into place.
3 Feed the cables from the arm axle through the shoulder socket.
4 Carefully push the arm axle into the shoulder bracket, so that the axle is flush with the inside of the bracket.
LA PULSES BP
LA CONV
P
B
L
BP
PULSES
L
L
L
A
B
5 Tighten the shoulder screw with the Allen wrench.
6 Connect the arm cables to the corresponding connection points in the torso.
LEFT ARM CONNECTIONS
Name/Label Tube/Cable Color Connector Description
LA Pulses Grey cable Black rectangular connector, 6 lead
Blood Pressure Grey cable Black rectangular connector, 2 lead
ATTACHING THE RIGHT ARM
Open the torso as described in steps 1 - 4, Opening the Torso.
Follow the procedures listed below in reverse to detach the arms.
1 Align the arm axle with the shoulder socket and feed the cables
from the arm axle through the shoulder socket
2 Push the axle into the bracket until it is flush with the inside of the
bracket.
3 Tighten the shoulder screw with the Allen wrench.
4 Connect the corresponding cables as shown below.
RIGHT ARM CONNECTIONS
Name/Label Tube/Cable Color Connector Description
Right Arm Black harness cable Black rectangular connector, 4 lead
Air Transparent tube White tube connector twist
Right Radial Grey harness cable Black with silver colored connector
