66
Maintenance
CHEST RISE BLADDER TUBE DESCRIPTIONS
Name/Label Tube Color Connector Description
Pneum L Silicon Barb connector
Pneum R Silicon Barb connector
Chest L Silicon Barb connector
Chest R Silicon Barb connector

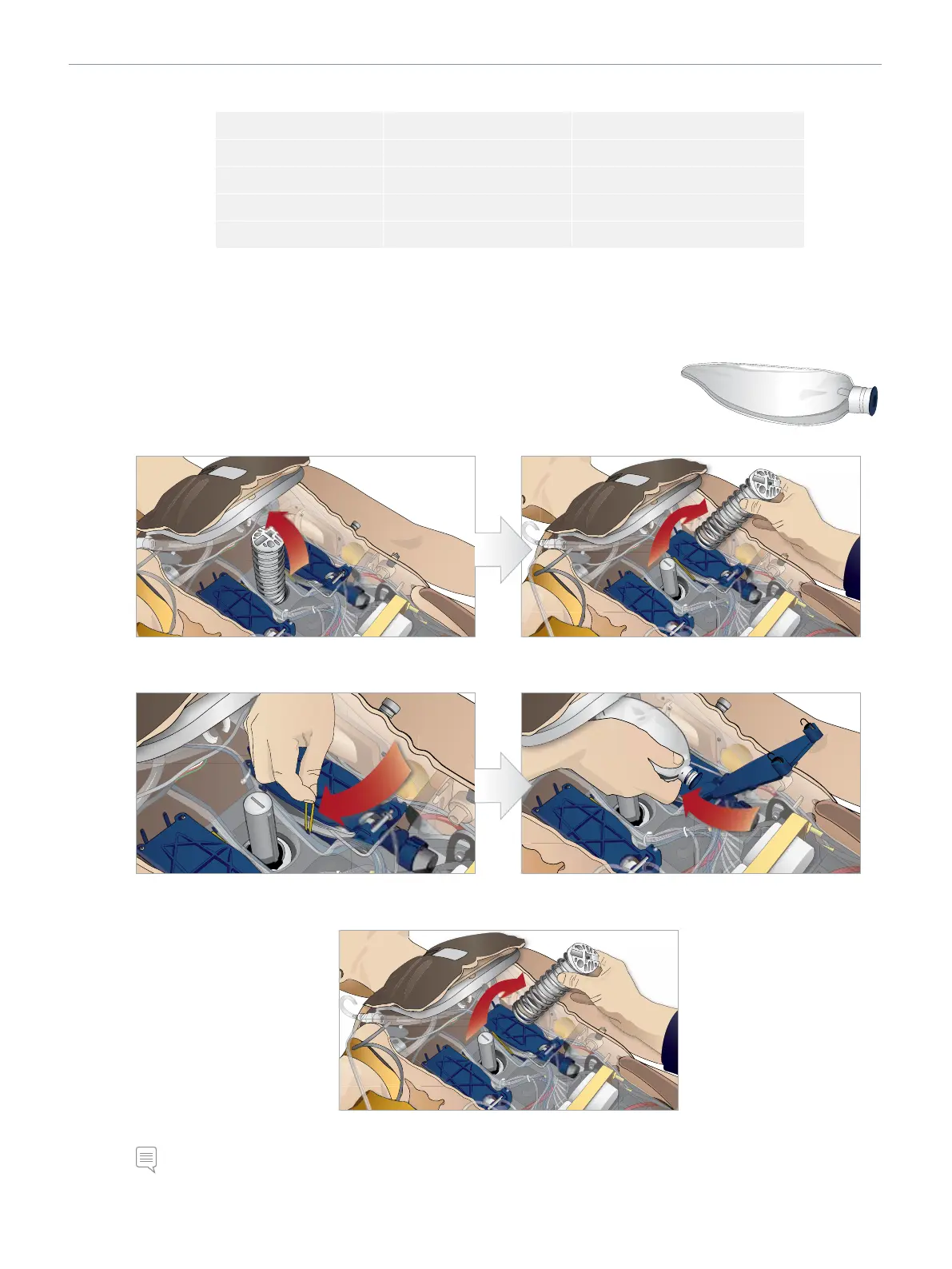

Replacing Lung Bladders
If leaking occurs, the chest rise bladders (in the chest cavity) should be replaced.
1 Open the torso skin and put the stomach foam to the side.
2 Open the hinged chest plate upwards, to access the lungs. 3 Remove the chest compression spring for easier access
to the lungs.
4 Unhook the green or yellow Lung Compliance bands
from each side of the lung assembly.
5 Open the hinged lung plate. Pull the old lung out from
its socket.
6 Insert the new lung reversing this procedure.
Note: Ensure that the compliance bands intersect between the two folds of the lung.
