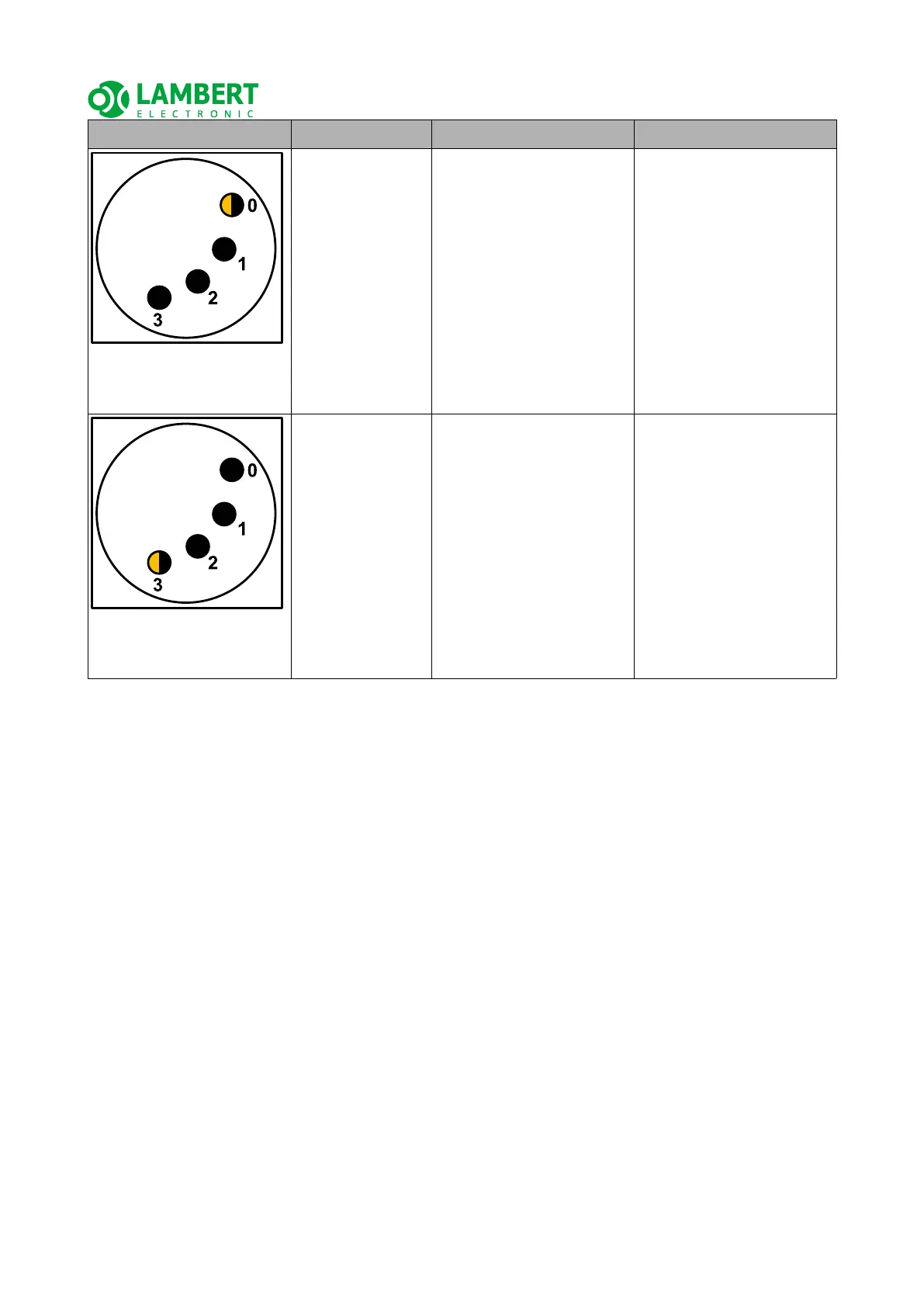

Indication Fault name Description & Cause Solution
Error
Actuator
position above
highest
position
The actuator is in a
position that is higher than
the highest programmed
target position 0.
This can be caused by
exceeding the self-locking
force of the actuator and
mechanical shifting,
eventually electric travel
e.g. in Position
Programming Mode (not
saved) followed by device
reset
The control unit allows the
actuator to move without
restriction in the inward
direction to the position
range. Simply select one
of the flaps target
positions by turning the
rotary switch and the
control unit activates the
actuator adjustment to the
specified position.
Error
Actuator
position below
lowest position
The actuator is in a
position that is lower than
the lowest programmed
target position 3.
This can be caused by
exceeding the self-locking
force of the actuator and
mechanical shifting,
eventually electric travel
e.g. in Position
Programming Mode (not
saved) followed by device
reset
The control unit allows the
actuator to move without
restriction in the inward
direction to the position
range. Simply select one
of the flaps target
positions by turning the
rotary switch and the
control unit activates the
actuator adjustment to the
specified position.
ATTENTION! Programmed Position Error may in rare cases be indicated in combination
with Position Sensor Fault even if the target positions are programmed correctly. This is
due to the principle of operation of the SW control and the interplay of random
combinations of external influences and the Failure of the Position Sensor. The
programmed position error also disappears when the Position Sensor fault is cleared. It is
therefore NOT necessary to reprogram the positions of the individual positions.
