3: Installation of the PremierWave XC HSPA+ Device
PremierWave® XC HSPA+ Intelligent Gateway User Guide 22
Hardware Components
Front/Top Panel

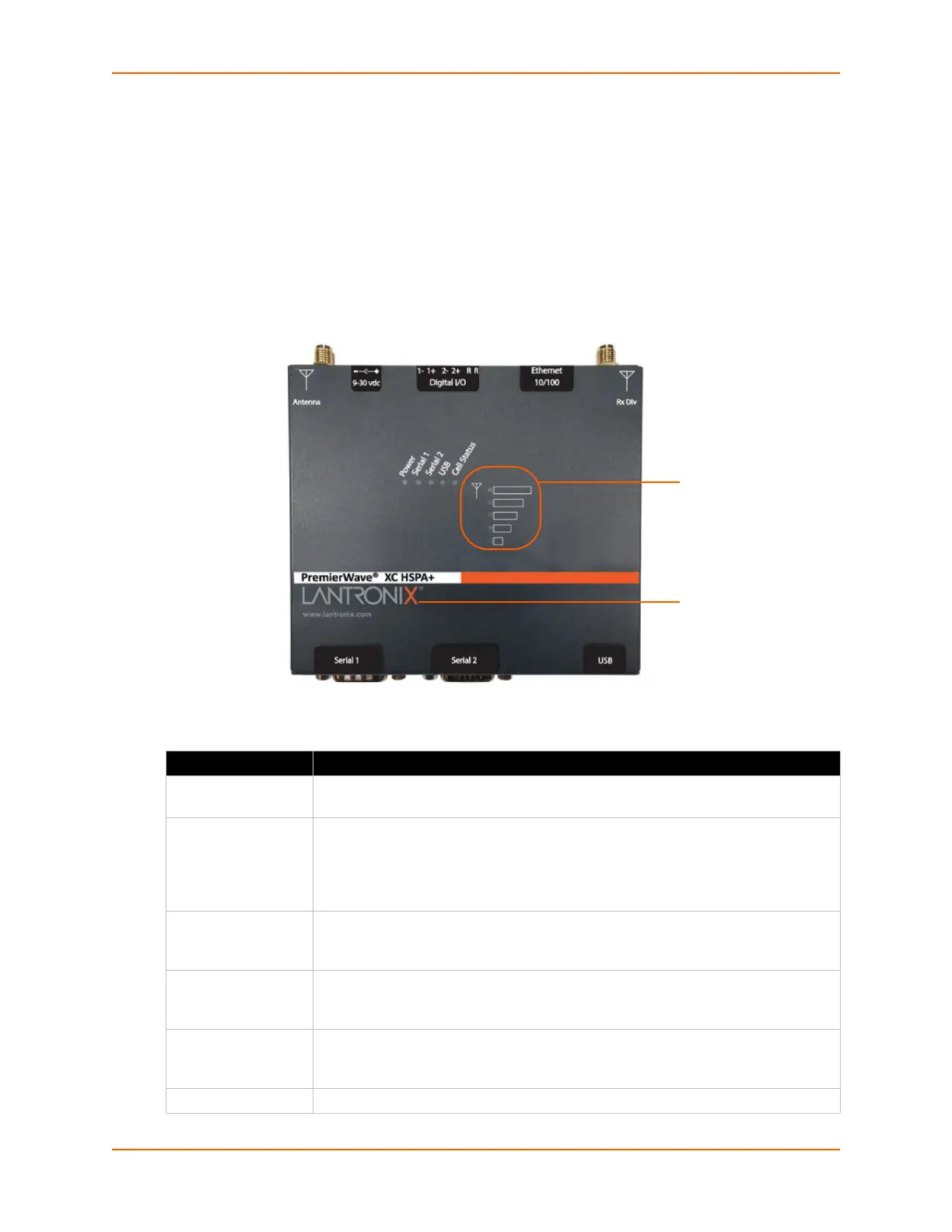

Figure 3-1 shows the top panel view of the PremierWave unit. Table 3-2, Table 3-3, and Table 3-4
list and explain the behavior of the LEDs on the top panel.
LED Indicators: 1 Power LED, 2 Serial Activity LEDs, 1 USB LED, 1 Cellular Status LED, 5 Signal
Strength LEDs (two of which are dual-colored), 1 Diagnostic LED, and 2 Ethernet LEDs (on the
RJ45 port).
Figure 3-1 PremierWave XC HSPA+ Unit
Table 3-2 PremierWave XC HSPA+ LEDs and Descriptions
LED Description
Power  GREEN - displays a solid light when power is properly supplied
 OFF - no power supplied
Cellular (Cell) Status  GREEN - displays solid when there is a connection to the packet domain on the
cellular network (e.g., a data or GPRS/UMTS/HSPA connection)
 AMBER - displays solid when there is a connection to the cellular network (e.g., a
GSM connection)
 OFF - indicates WWAN (cellular) interface is inactive or disabled
Serial 1  GREEN - flashes when Serial port 2 is transmitting data
 AMBER - flashes when Serial port 2 is receiving data
 OFF - when no data is being transmitted or received through Serial port 2
Serial 2
 GREEN - flashes when Serial port 2 is transmitting data
 AMBER - flashes when Serial port 2 is receiving data
 OFF - when no data is being transmitted or received through Serial port 2
USB  GREEN - displays a solid light when a USB device is connected to and is
functioning properly
 OFF- when no USB device is connected
Signal Strength  Indicates cellular signal strength when connection is established (see Table 3-2)
Signal
Strength
LEDs
Diagnostic
LED
