3: Installation of the PremierWave XC HSPA+ Device
PremierWave® XC HSPA+ Intelligent Gateway User Guide 25

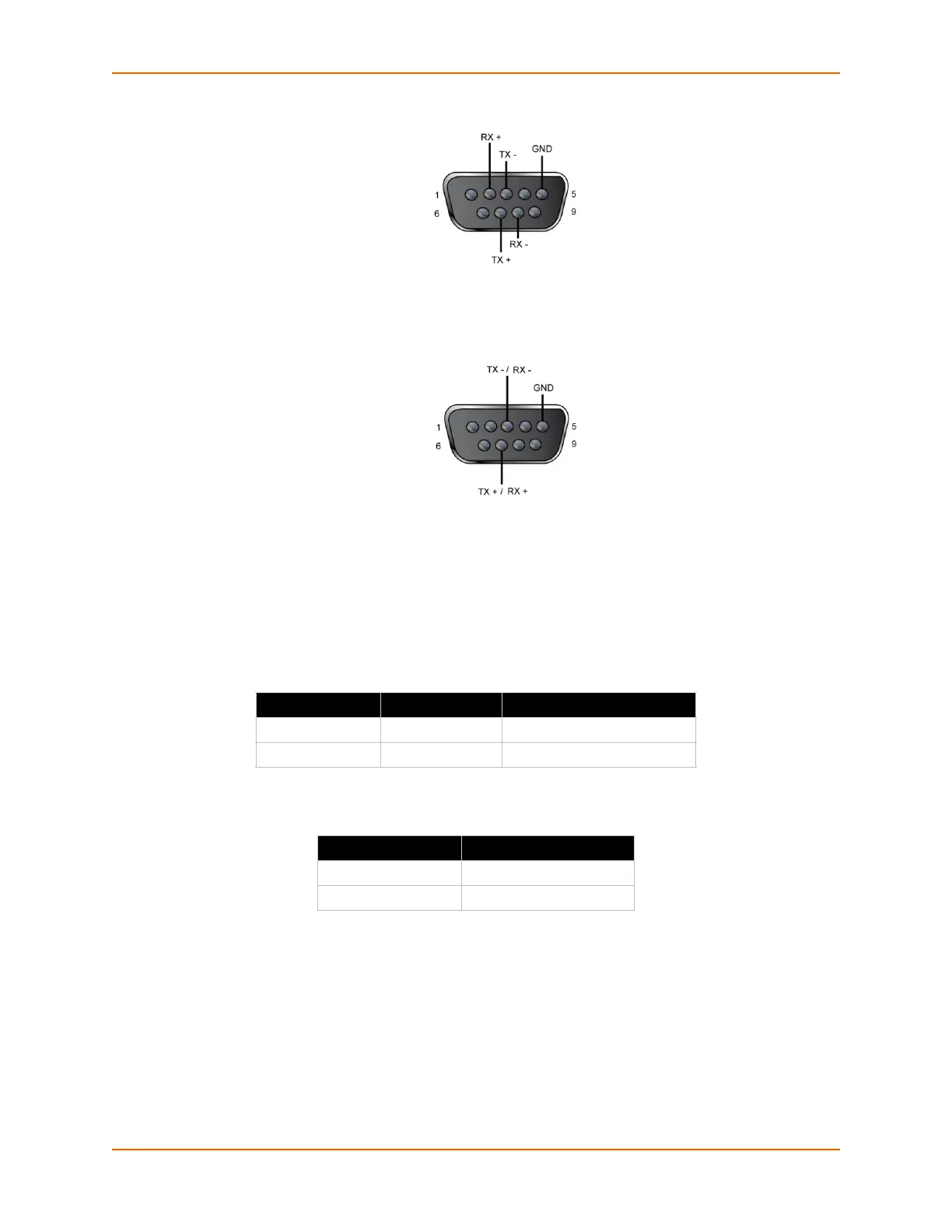

Figure 3-7 PremierWave XC HSPA+ Pinout Configuration for Full Duplex RS-422/485 (4-wire)
Figure 3-8 PremierWave XC HSPA+ Pinout Configuration for Half Duplex RS-422/485 (2-wire)
Ethernet LEDs
The Ethernet port (see Figure 3-11) has two LEDs that indicate the status of the connection as
described in the Table 3-9 and Table 3-10 below:
Table 3-9 Left Ethernet LED
Table 3-10 Right Ethernet LED
The Ethernet port can connect to an Ethernet (10 Mbps) or Fast Ethernet (100 Mbps) network.
Reset Button
You can reset the PremierWave XC HSPA+ intelligent gateway to factory defaults, including
clearing the network settings. The IP address, gateway, and netmask are set to 00s. To reset the
unit to factory defaults, perform the following steps.
1. Place the end of a paper clip or similar object into the reset opening (see Figure 3-5) and press
and hold down micro switch during a power cycle for 10-15 seconds.
Color/Status Solid Light Blinking Pattern
Green 100 Mbps Link 100 Mbps Activity
Amber 10 Mbps Link 10 Mbps Activity
Color/Status Solid Light
Green Full Duplex
OFF Half Duplex
