5: Configuration Using Web Manager

PremierWave® XC HSPA+ Intelligent Gateway User Guide 33

Device Status Page

The Device Status page is the first to appear after you log into Web Manager. The Device Status

page also appears when you click Status in Web Manager.

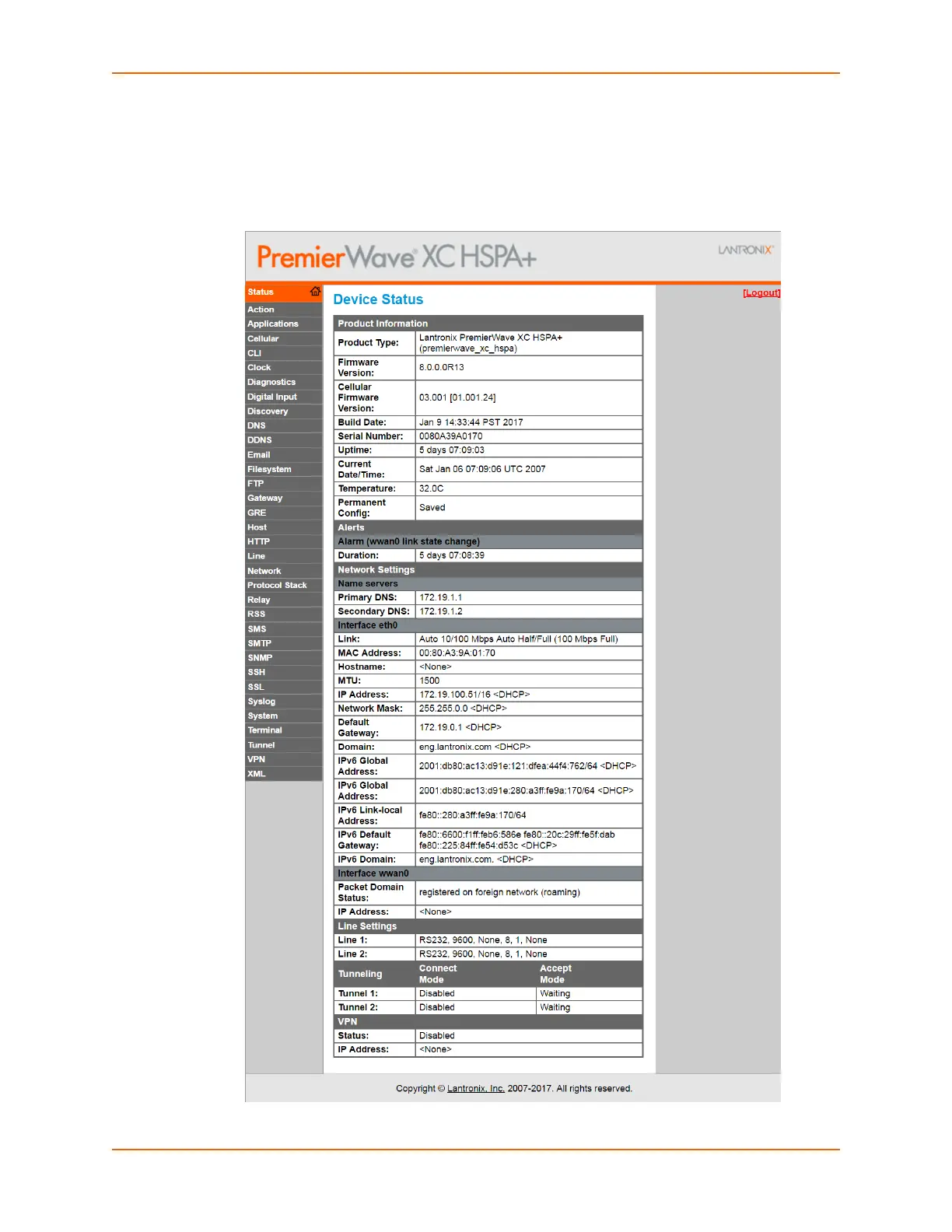

Figure 5-1 Device Status Page
