HVM200 Reference Manual Making the Measurement 3-11

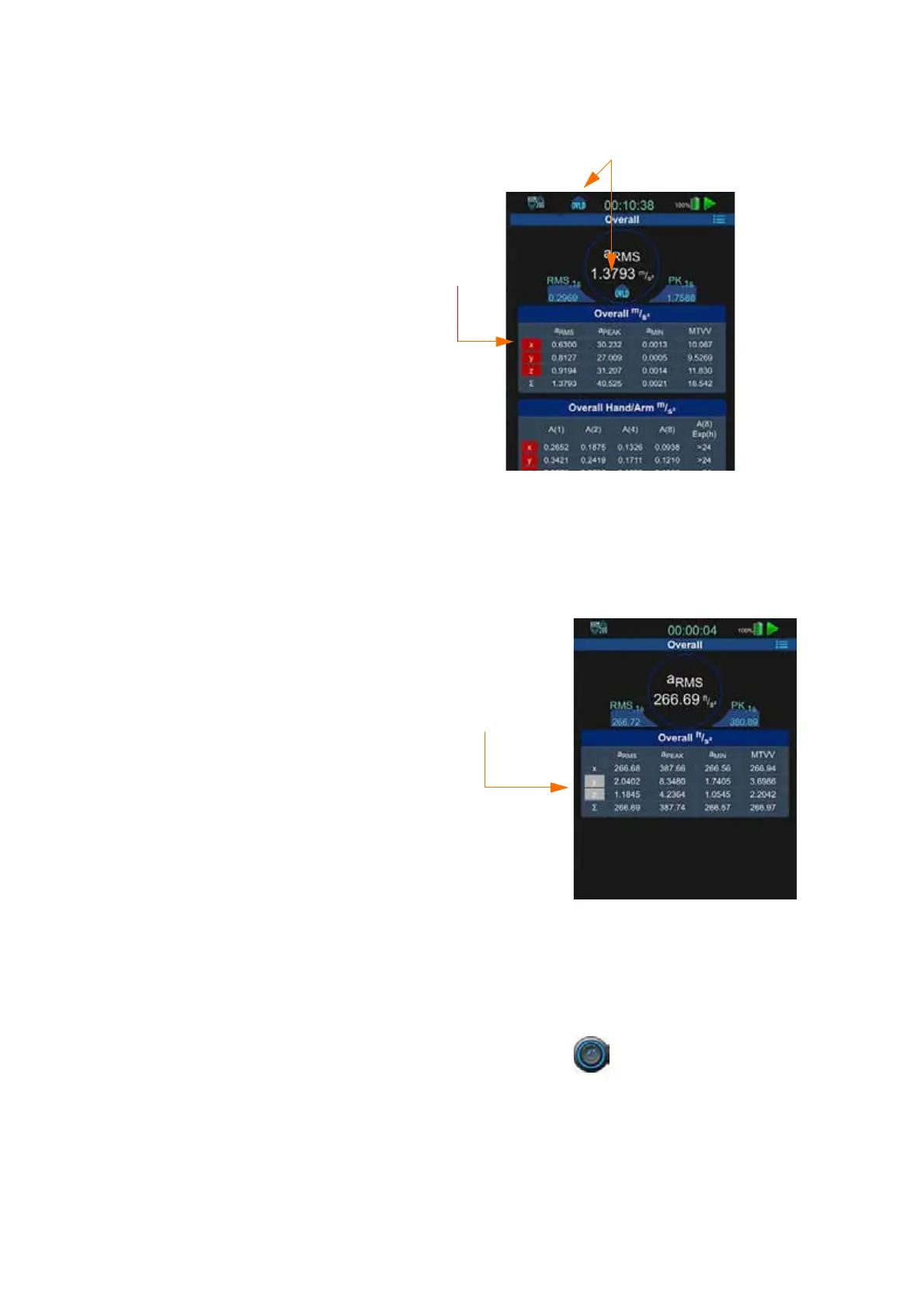

FIGURE 3-16 Overload Indicators
Under-range
An under-range occurs when the signal from the accelerometer is below
the input range to the point it cannot be measured accurately.
FIGURE 3-17 Under-range Indicators
Annotate the Measurement
Click the Annotate button and type a note to include with the measure-
ment (you do not need to stop the measurement to annotate).
FIGURE 3-18 Annotate Button
Indicates an overload has occurred on one or
more axes in current measurement
Red background
shows overload for
each axis.
Gray background
shows under-range
condition for the Y
and Z axes.
