For steps 2 to 7, see Figure 37.
To remove the tip retainer
assembly:
2. Note the orientation of the tip
wire connector for reinstallation
of the tip retainer assembly.
3. Using the retainer nut, unthread
the tip retainer assembly from
the lens manifold block spacer.
To replace the tip retainer assembly:
4. Verify that the engagement boss
o-ring (PLORG0040) and (3)
gas seal o-rings (PLORG0039)
are in place in the top of the tip
retainer assembly.
Replace any o-rings, if they
are damaged or missing.
Take care that the
engagement boss is
aligned with the center of
the beam path.
If it is necessary, now is a
convenient time to replace
the tip according to
Section 5.1.
5. Center the tip retainer assembly
on the lens manifold block
spacer.
6. Rotate the tip retainer assembly
so:
The tip wire connector is in
the same orientation as
noted in step 2.
The alignment pin seats into
the appropriate hole in the
lens manifold block.
7. Thread the tip retainer nut onto
the lens manifold block spacer.

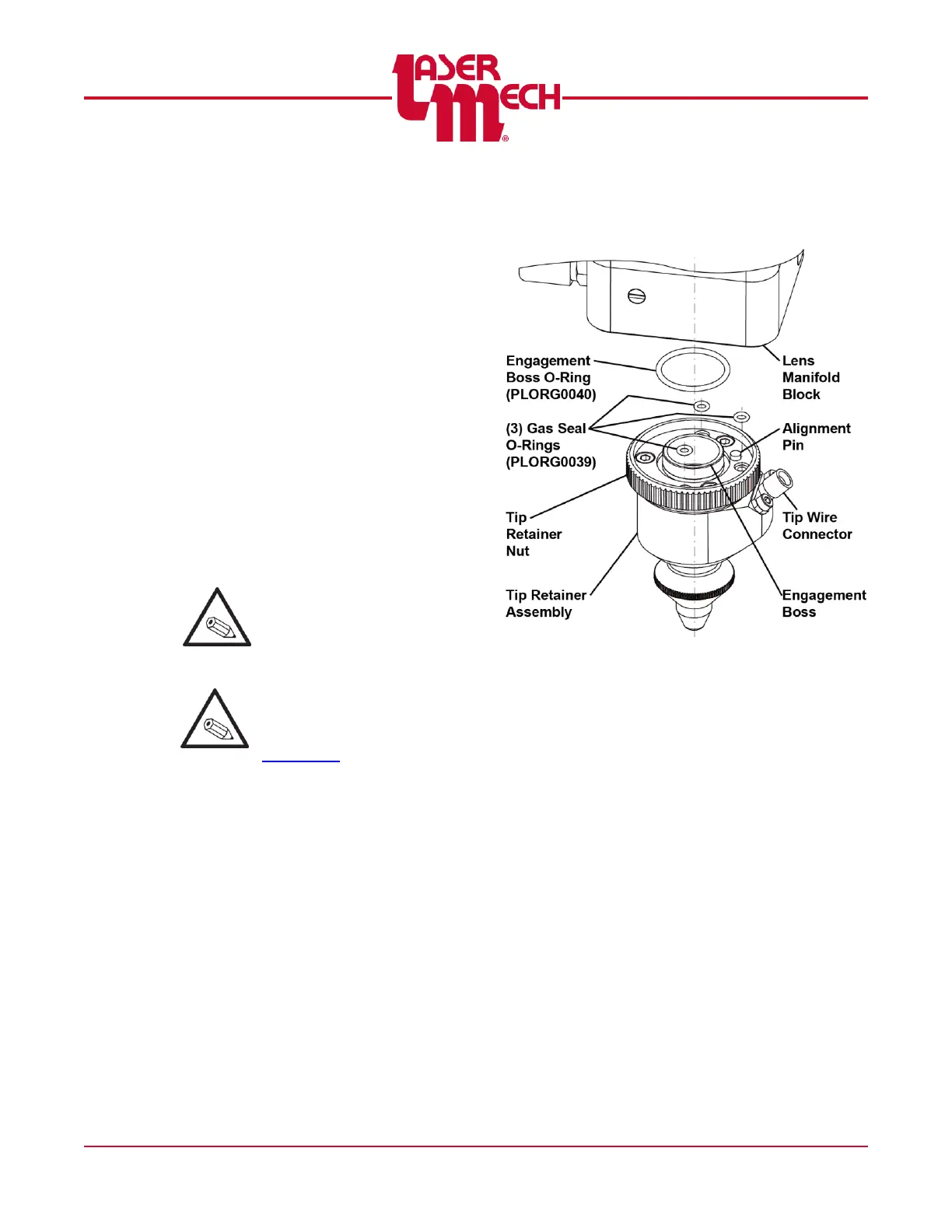

Figure 37
8. Thread the tip transformer wire
onto the tip retainer assembly.
See Figure 36.
