PLMNL0243 REV. A, Effective Date: 03/24/16 57 FiberMINI ™ 2.0 Operation Manual

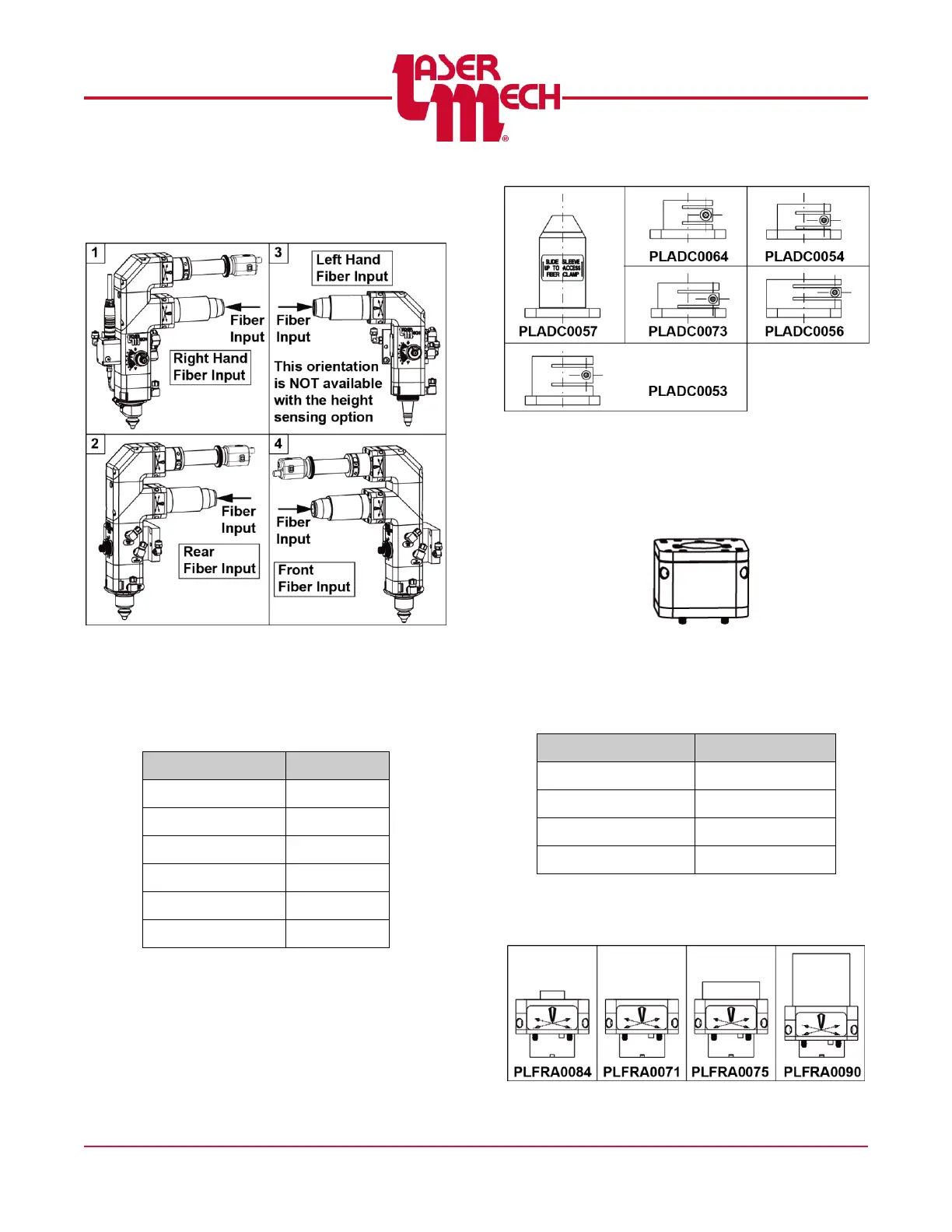

 A right angle fiber orientation
can be configured in 90°
increments.
Figure 73
 Adapter Clamp: See Figure 74 and
Figure 75.
Clamp Size (mm)
Clamp
14
PLADC0057
18
PLADC0064
24
PLADC0054
28
PLADC0073
30
PLADC0056
40
PLADC0053
Figure 74
 If your system requires an adapter
clamp, it also requires a tilt style
collimator (PLATP0015).
Figure 75
 Collimator: See Figure 76.
Focal Length (mm)
Collimator
35
PLFRA0084
60
PLFRA0071
75
PLFRA0075
100
PLFRA0090
NOTE: Collimators in Figure 76 are shown without a
fiber interface adapter (FIA)
Figure 76
