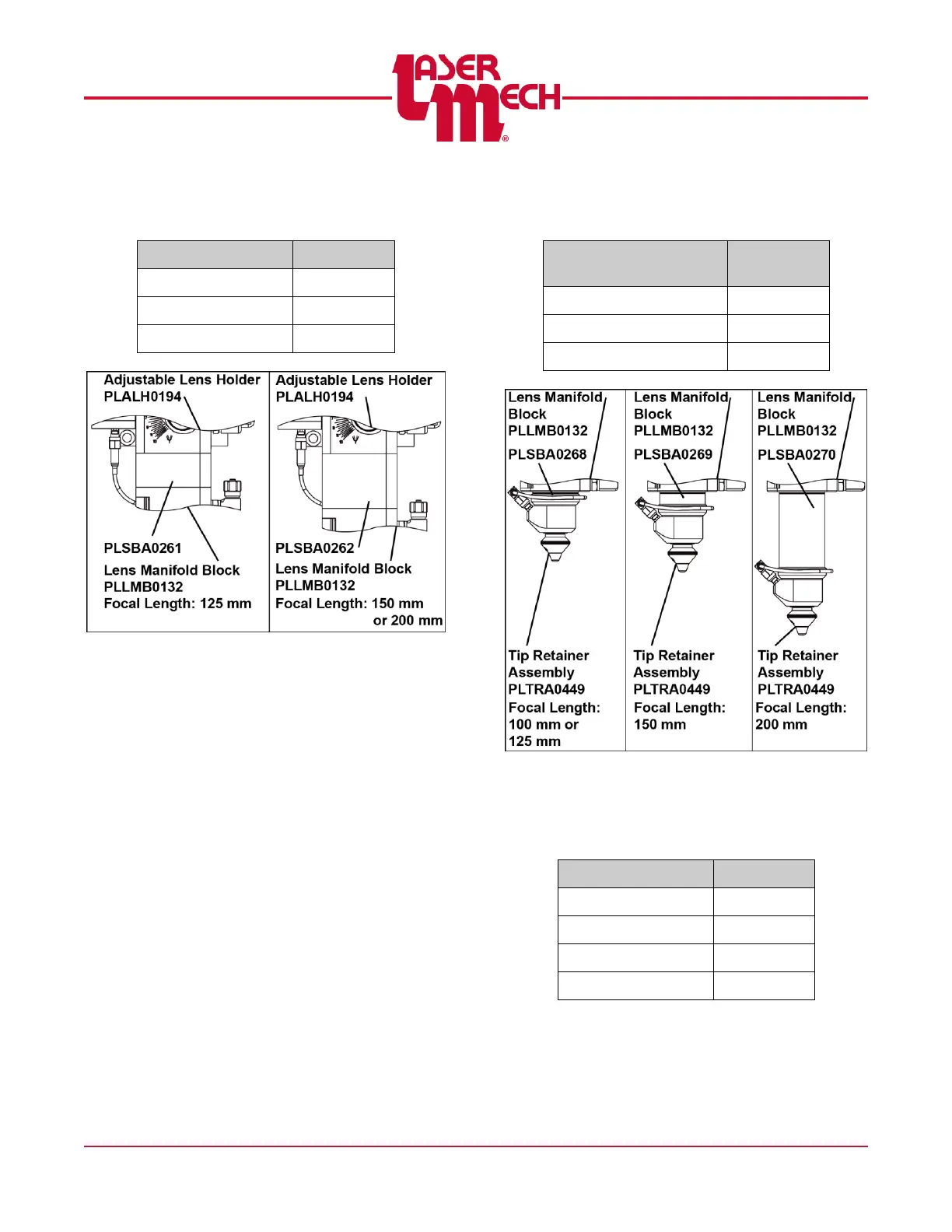

 Adjustable Lens Holder Spacer: See
Figure 80.
Focal Length (mm)
Spacer
100
No Spacer
125
PLSBA0261
150 & 200
PLSBA0262
Figure 80
 Lens Manifold Block Spacer: See Figure
81.
Tip Retainer Assembly
Focal Length (mm)
Spacer
100 & 125
PLSBA0268
150
PLSBA0269
200
PLSBA0270
Figure 81
 Focus Lens
Focal Length (mm)
Lens
100
PLYFS0012
125
PLYFS0016
150
PLYFS0013
200
PLYFS0007
