Section 3 - Basic Operations
Page 11
HT
Height
Three-step height routine. The final calculation
represents the vertical distance between the
points on the target represented by ANG1 and
ANG2.
ML
2D Missing Line
Two-step Missing Line Routine finds the
connecting vector (or missing line) between two
points. The final calculation shows the SD, VD,
HD, and INC associated with the missing line.
Display Indicator Test
To verify that all display indicators are working properly:
1. Start with the TruPulse powered OFF, press-and-hold
.
2. Compare the in-scope display to the Figure #6 (page 9) to verify that all indicators are working
properly.
3. Release
to start normal operation.
Error Codes
Error conditions can occur in a measurement or in the system
hardware. To make sure that you never get an erroneous measurement,
the TruPulse monitors both system hardware and measurements. When
the instrument detects an error condition, it displays and error
code instead of a measurement.

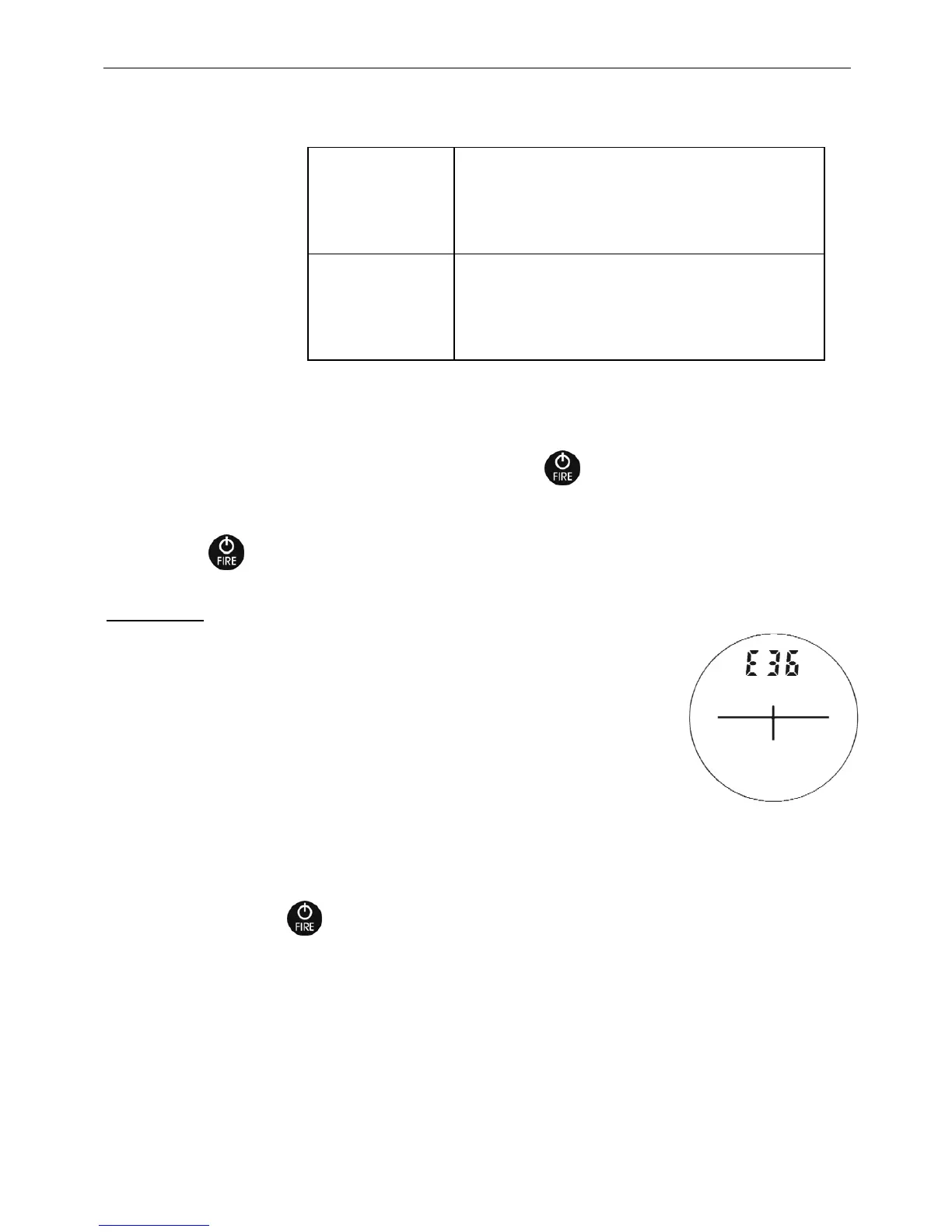

Error codes appear in the main display and are in the form of “Exx”,
where “xx” is an error code number. Figure #7 shows an example error
code, E36.
If an error code persists:
1. Release
and press again to try to retake the measurement.
2. Remove and re-install the batteries and then try to retake the measurement.
3. If the above steps do not resolve the error, contact LTI or an Authorized LTI
Distributor for assistance. Refer to the inside front cover for LTI contact
information.
Figure #7
