Section 3 - Basic Operations
Page 9
Display Indicators

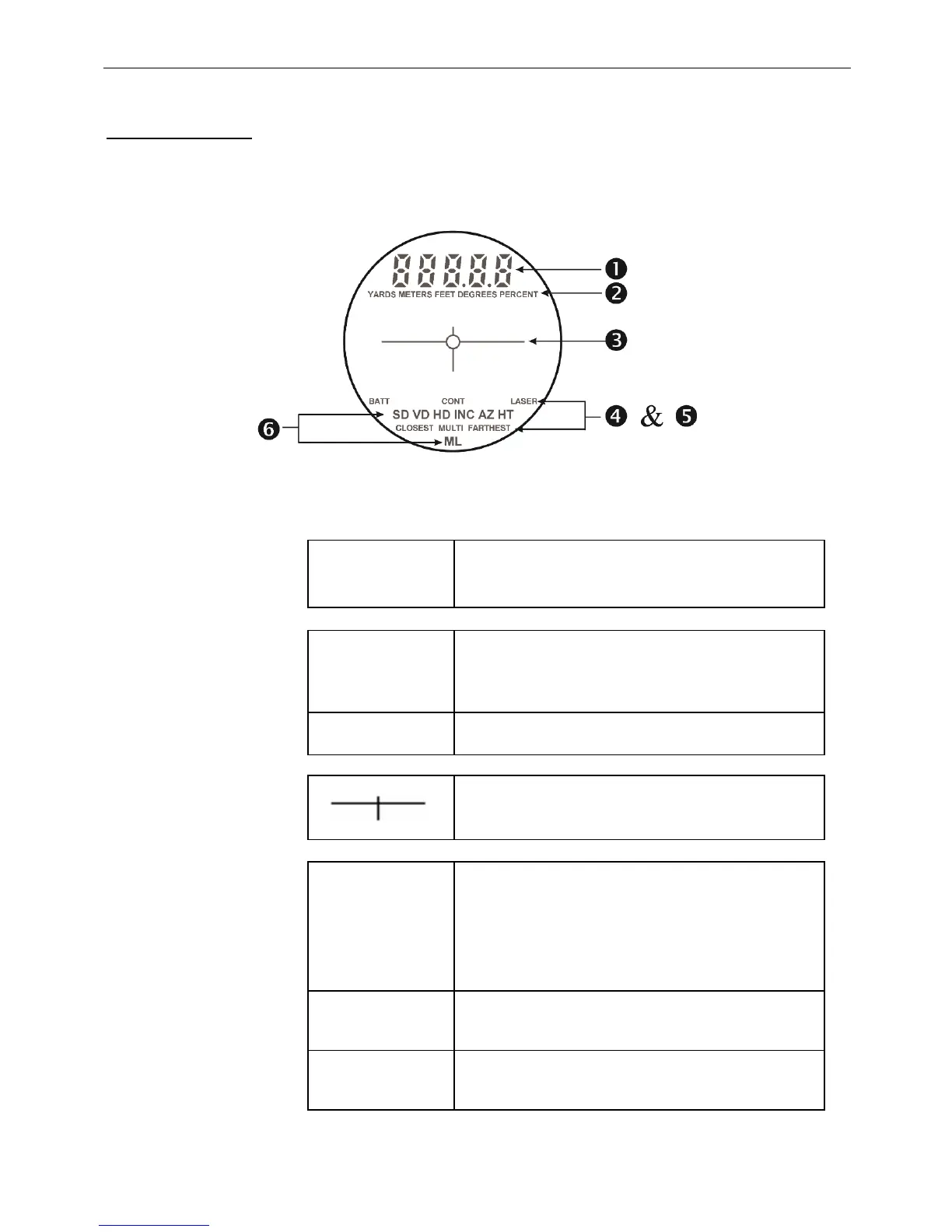

Figure #6 shows the LCD in-scope display. The TruPulse’s internal software is organized into
options. Each option represents a specific measurement or setup function and has a corresponding
display indicator. Refer to the figure and table below for information about each indicator.
Main
Display
888.8.8 Displays messages and measurement results.
Measurement
Units
YARDS
METERS FEET
Distance measurement units. Selection
available in the System Setup Modes.
Note: Only International lasers include meters.
DEGREES Inclination measurement units.
Crosshair
Serv
es as the aiming point reference, both
horizontally and vertically.
Status
Indicators
BATT Flashing: battery voltage is low.
Steady: battery voltage is too low for system
operation.
Not Visible: battery voltage is within acceptable
range.
LASER Visible: laser is firing.
Not Visible: laser is not active.
MULTI Multiple targets have been logged in the Closest
or Farthest target mode.
Figure #6
